CNC Slant Bed Lathe

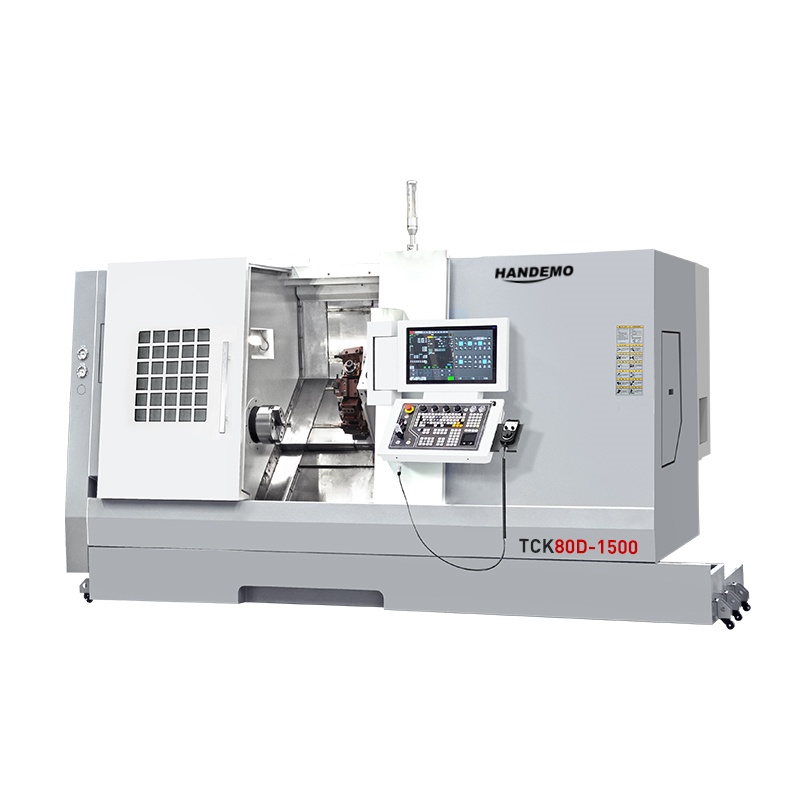

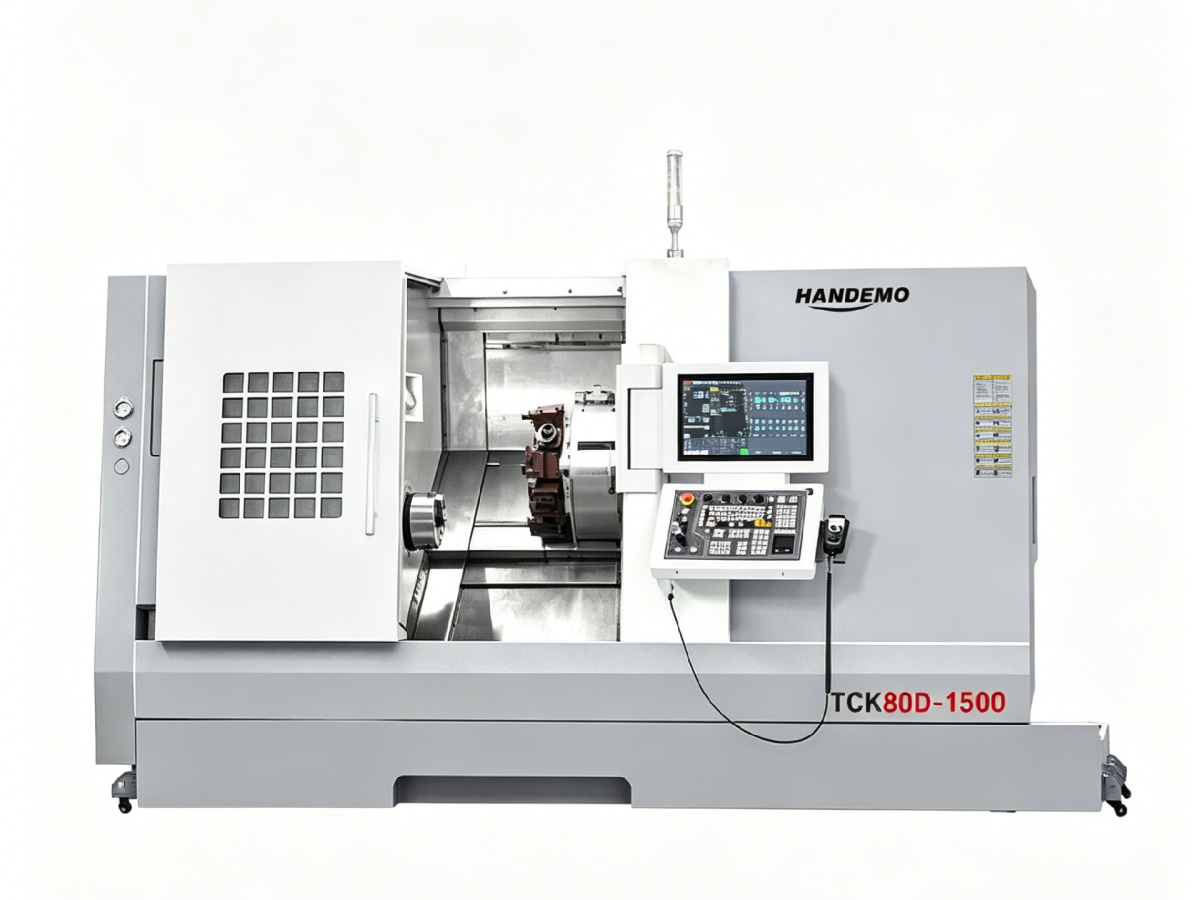

TCK80D-1500 CNC Slant Bed Lathe
- *Max. swing over bed 850 mm, max turning length 1450 mm, max turning diameter 700 mm, swing over cross slide 560 mm, standard turning diameter 550 mm
- *Spindle nose type A2-11, spindle bore 120 mm, max bar capacity 90 mm, spindle motor output power 18.5/22 kW
- *X-axis travel 410 mm, Z-axis travel 1500 mm, X/Z rapid traverse 10/10 m/min
- *Tailstock travel 110 mm, tailstock quill stroke 100 mm
- *Approx. gross weight 9000 kg
| Speicifications | TCK80D-1500 |
|---|---|
| Max. swing over bed(mm) | 850 |
| Max. turning length(mm) | 1450 |
| Max. turning diameter(mm) | 700 |
| Max. swing over cross slide(mm) | 560 |
| Standard turning diameter(mm) | 550 |
| Spindle nose type / code | A2-11 |
| Spindle bore diameter(mm) | 120 |
| Max. bar capacity(mm) | 90 |
| Spindle motor output power(kW) | 18.5/22 |
| X-axis rapid traverse(m/min) | 10 |
| Z-axis rapid traverse(m/min) | 10 |
| X-axis travel(mm) | 410 |
| Z-axis travel(mm) | 1500 |
| Tailstock travel(mm) | 110 |
| Tailstock quill stroke(mm) | 100 |
| Approx. gross weight(KG) | 9000 |
