CNC Slant Bed Lathe

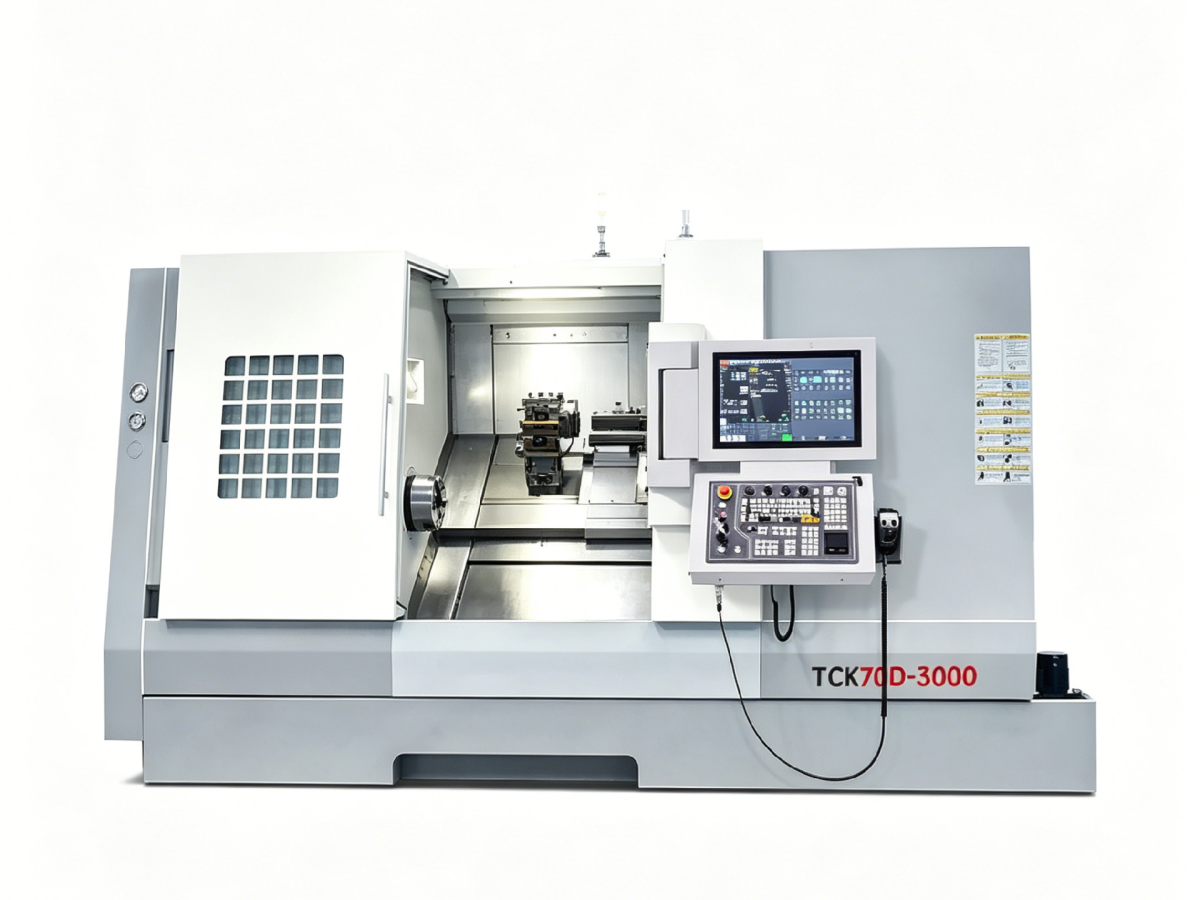

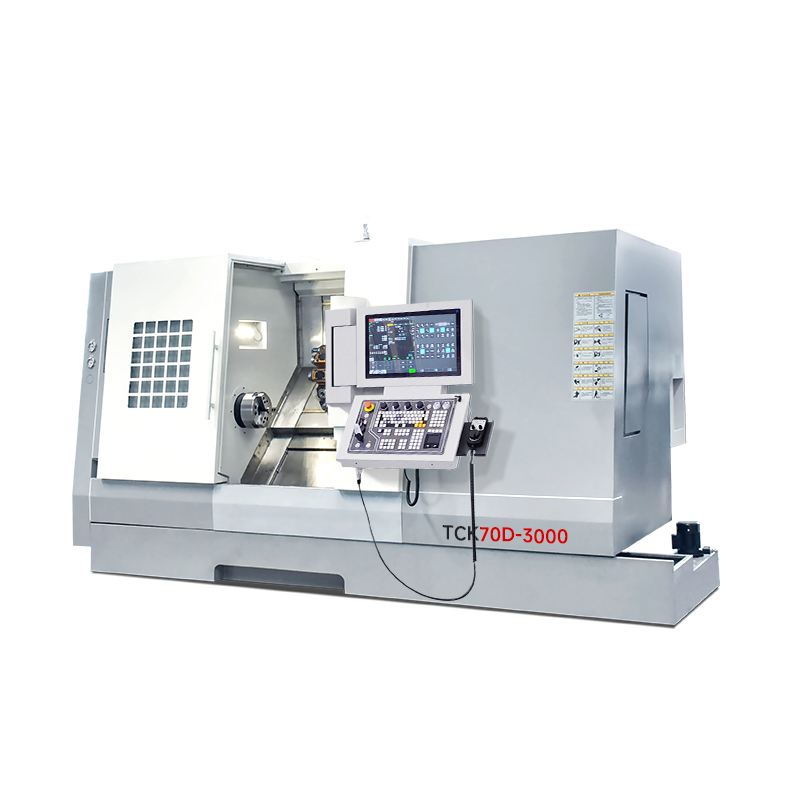

TCK70D CNC Slant Bed Lathe
- *Max. swing over bed 720 mm, max turning length 2950 mm, max turning diameter 550 mm, standard turning diameter 380 mm, max swing over cross slide 400 mm
- *Spindle nose type A2-11, spindle bore diameter 120 mm
- *X-axis travel 300 mm, Z-axis travel 2950 mm, X/Z rapid traverse 10/10 m/min
- *Tailstock travel 110 mm, tailstock quill stroke 100 mm
- *Machine dimensions 6154×2321×2130 mm, approx. gross weight 12000 kg
| Speicifications | TCK70D-2000 |
|---|---|
| Max. swing over bed(mm) | 720 |
| Max. turning length(mm) | 1950 |
| Max. turning diameter(mm) | 550 |
| Standard turning diameter(mm) | 380 |
| Max. swing over cross slide | 400 |
| Spindle nose type / code | A2-11 |
| Spindle bore diameter | 120 |
| X-axis rapid traverse(m/min) | 10 |
| Z-axis rapid traverse(m/min) | 10 |
| X-axis travel(mm) | 300 |
| Z-axis travel(mm) | 1950 |
| Tailstock travel(mm) | 110 |
| Tailstock quill stroke(mm) | 100 |
| Approx. gross weight(KG) | 10000 |
| Machine dimensions(mm) | 4756L× 2240W× 2238H |
