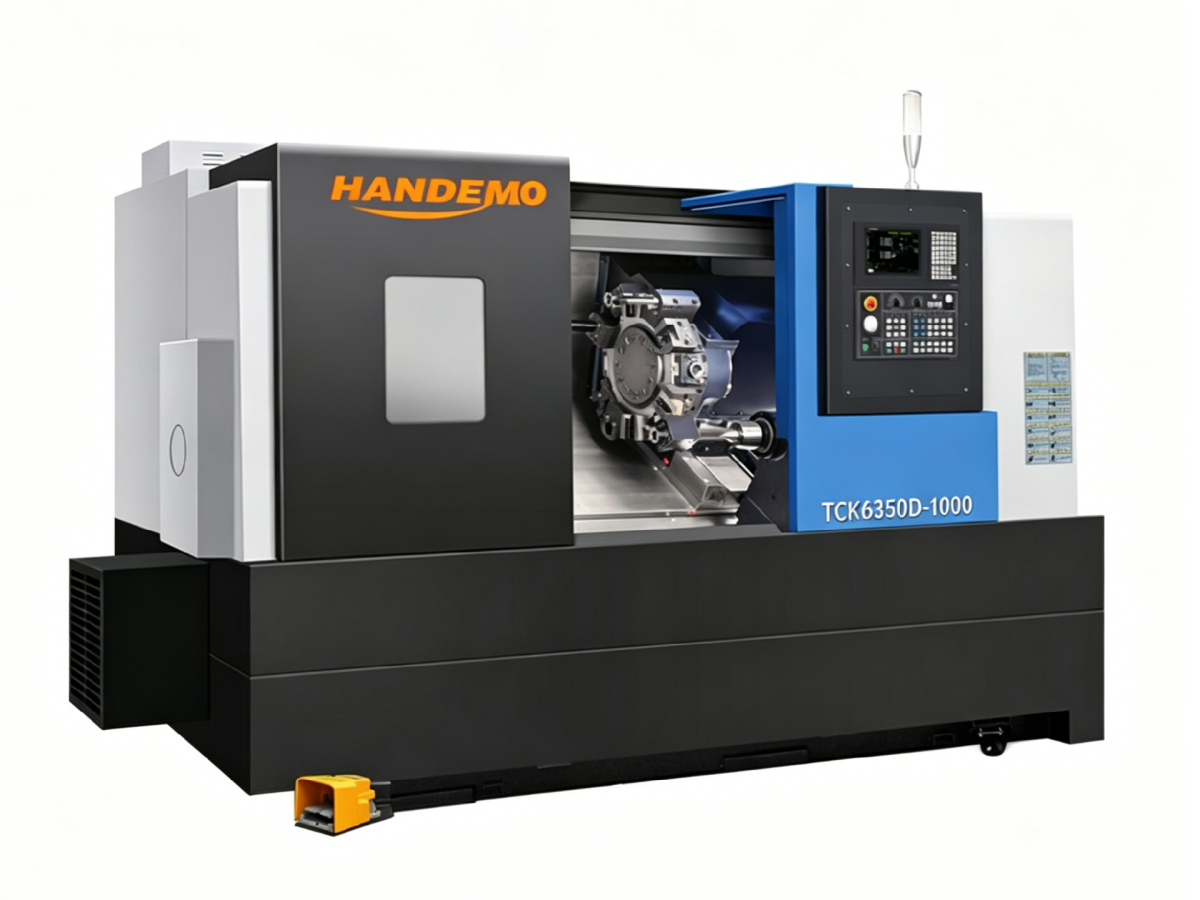

TCK6350D CNC Slant Bed Lathe
- *Max. swing over bed 630 mm, max turning length 450 mm, max turning diameter 330 mm, max swing over cross slide 300 mm
- *Spindle nose type A2-8, spindle bore diameter 96 mm, max bar capacity 85 mm
- *X-axis travel 230 mm, Z-axis travel 470 mm, X/Z rapid traverse 12/12 m/min
- *Tailstock travel 500 mm, tailstock quill stroke 100 mm
- *Machine dimensions 3503×1711.5×2096 mm, approx. gross weight 4400 kg
| Speicifications | TCK6350D |
|---|---|
| Max. turning diameter on bed(mm) | 630 |
| Max. cutting length(mm) | 450 |
| Max. cutting diameter(mm) | 330 |
| Max. turning diameter on the skateboard(mm) | 300 |
| Spindle nose type | A2-8 |
| Main shaft hole diameter(mm) | 96 |
| Max. over bar diameter(mm) | 85 |
| Spindle motor power（KW） | 22 |
| X-axis Fast shift speed(m/min) | 18 |
| Z-axis Fast shift speed(m/min) | 15 |
| X-axis travel(mm) | 230 |
| Z-axis travel(mm) | 470 |
| Tail seat travel(mm) | 500 |
| Tail seat sleeve travel(mm) | 100 |
| Approx. gross weight（KG) | 4400 |
