CNC Slant Bed Lathe

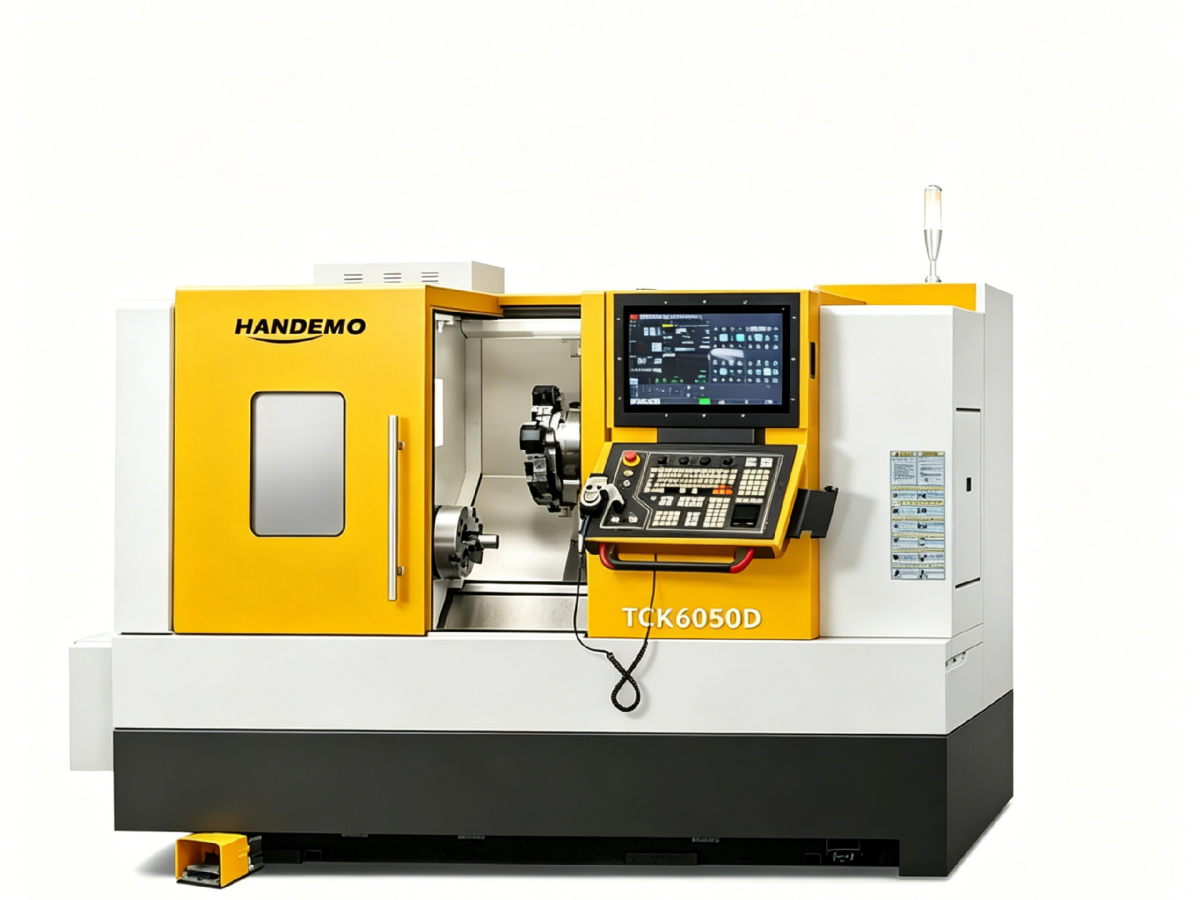

TCK6050D High-End Precision Model
- *Max. swing over bed 560 mm, max turning length 500 mm (TCK6050D-500) / 980 mm (TCK6050D-1000), max turning diameter 410 mm, swing over cross slide 320 mm
- *Spindle nose type A2-6, spindle bore 65 mm, max bar capacity 50 mm, spindle motor output power 11/15 kW
- *X-axis travel 280 mm, Z-axis travel 630 mm (500) / 1120 mm (1000), X/Z rapid traverse 15/15 m/min
- *Tailstock travel 450 mm (500) / 900 mm (1000), tailstock quill stroke 100 mm
| Speicifications | TCK6050D-500 |
|---|---|
| Max. swing over bed（mm) | 560 |
| Max. turning length（mm) | 500 |
| Max. turning diameter（mm) | 410 |
| Max. swing overcross slide（mm) | 320 |
| Standard turning diameter（mm) | 280 |
| Spindle nose type / code | A2-6 |
| Spindle bore diameter（mm) | 65 |
| Max. bar capacity（mm) | 50 |
| Spindle motor output power（kW） | 11/15 |
| X-axis rapid traverse（m/min） | 15 |
| Z-axis rapid traverse（m/min） | 15 |
| X-axis travel（mm) | 280 |
| Z-axis travel（mm) | 630 |
| Tailstock travel（mm) | 450 |
| Tailstock quill stroke（mm) | 100 |
| Machine dimensions（mm) | 4000 |
| Approx. gross weight（KG） | 3508L× 1924W× 1966.5H |
