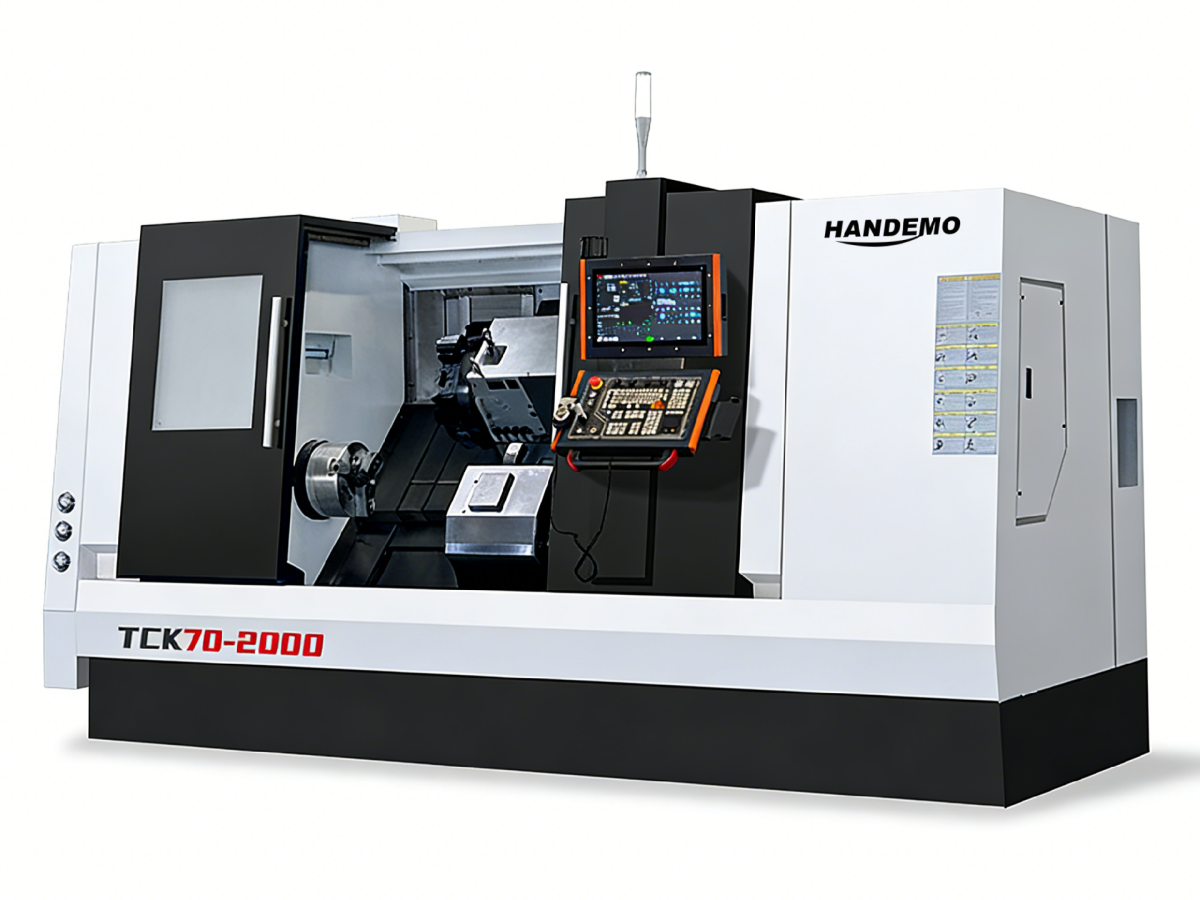

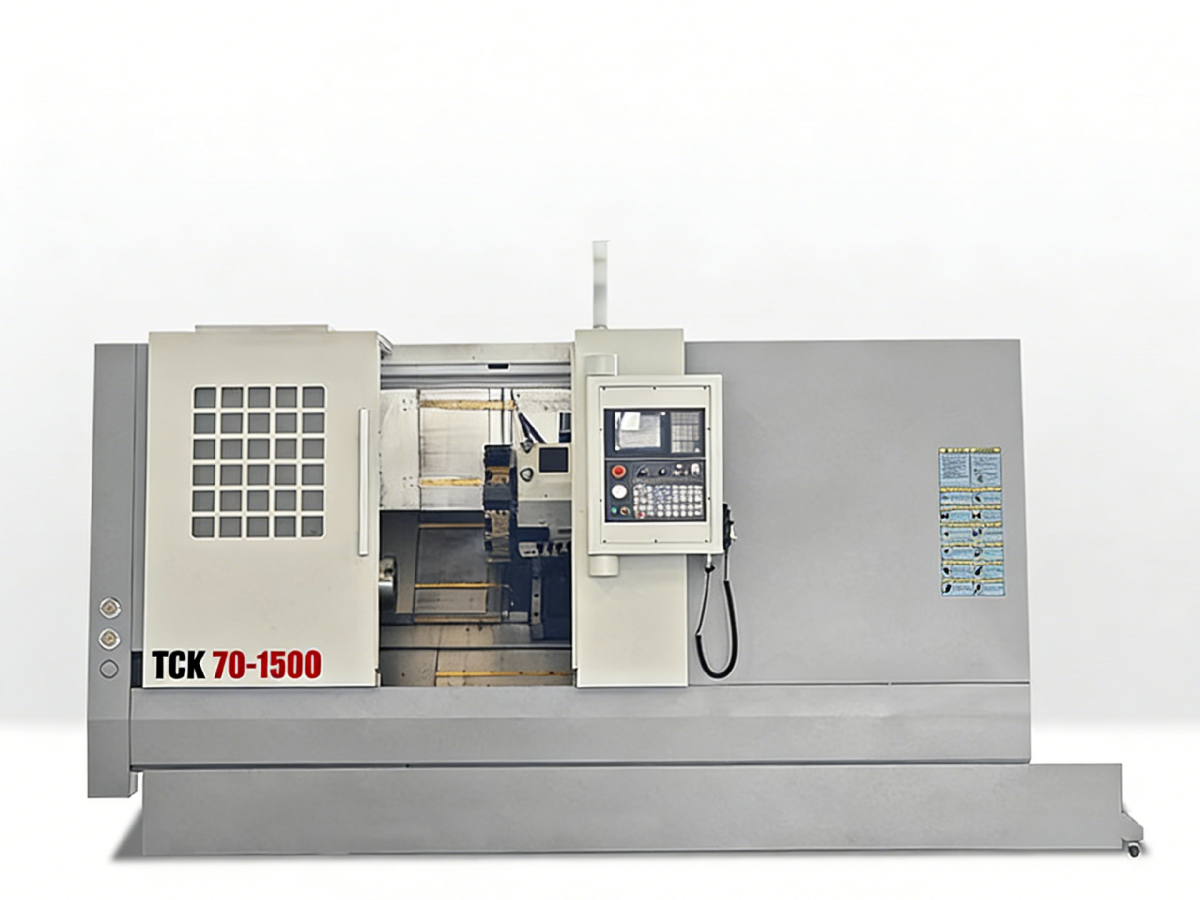

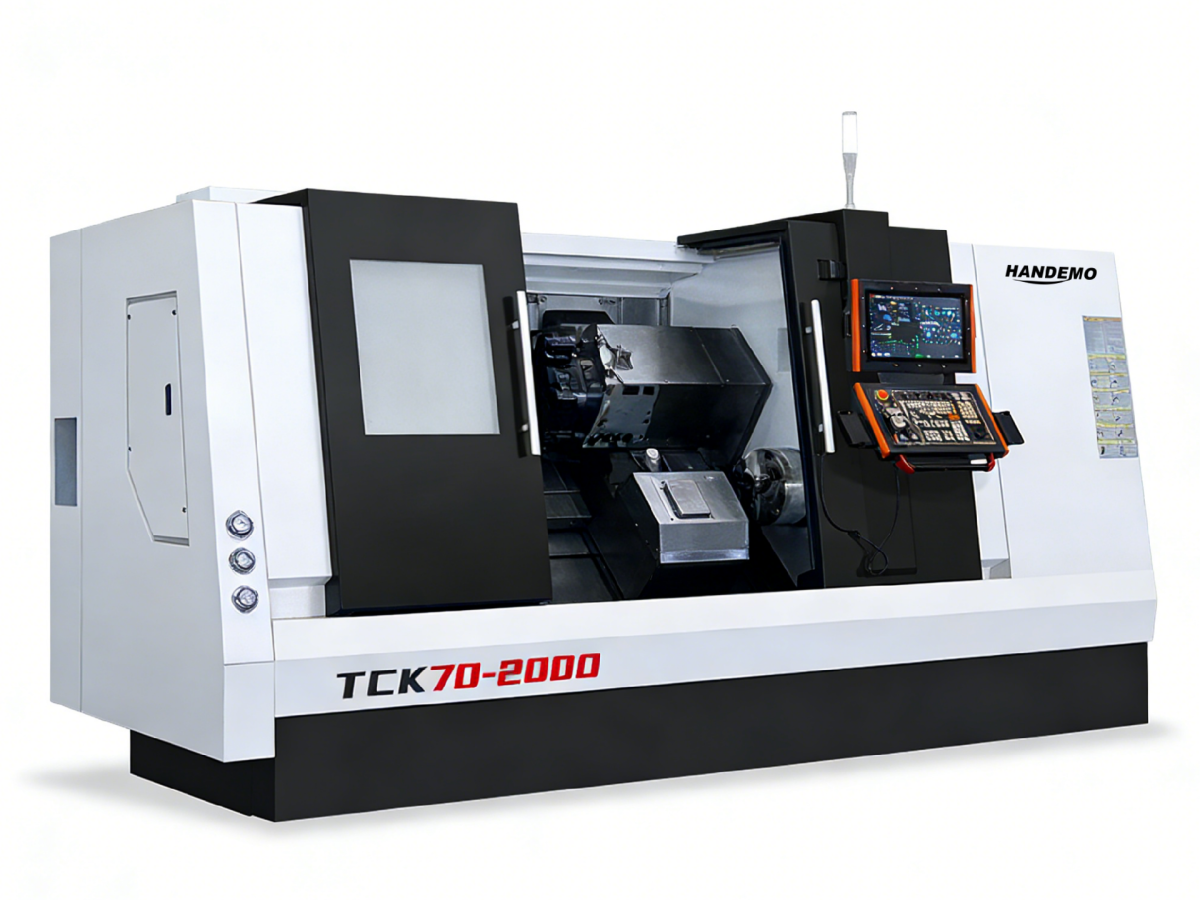

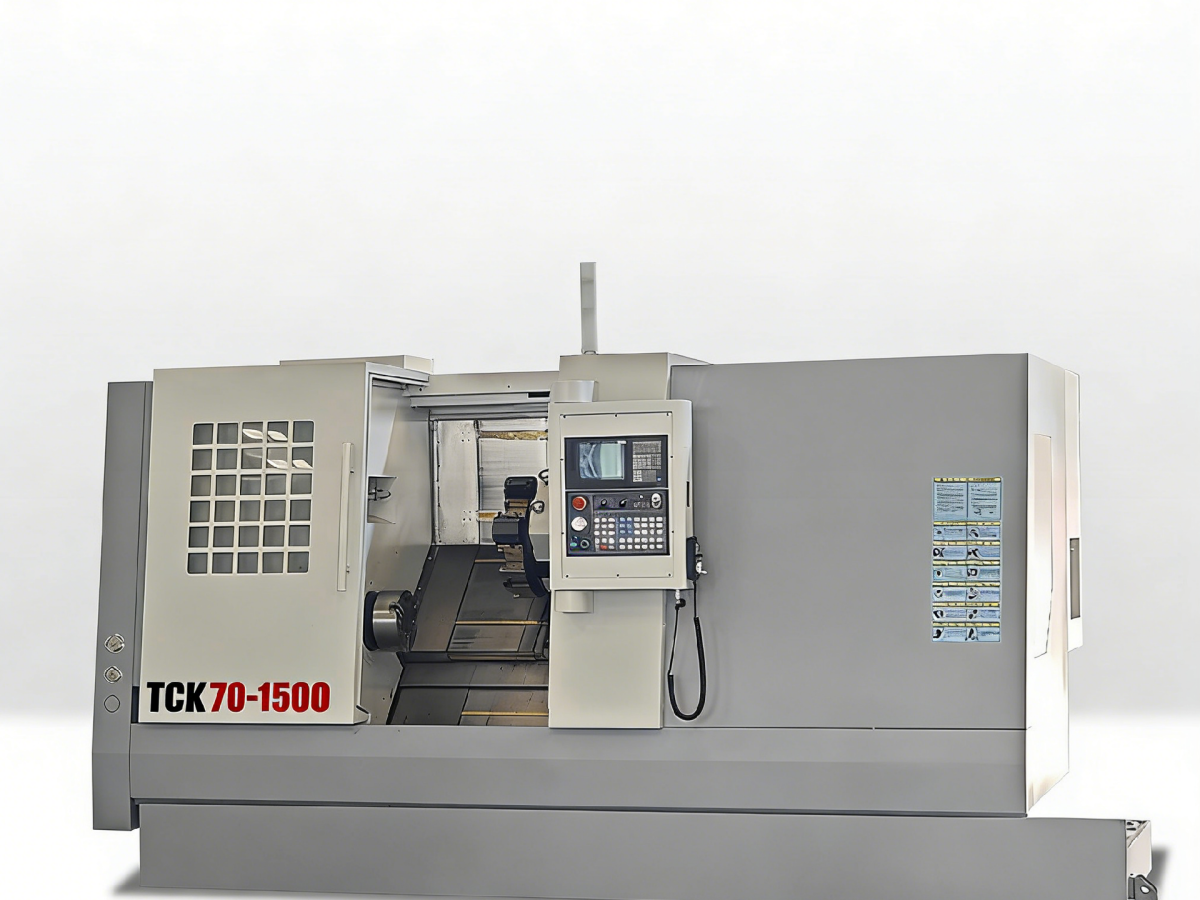

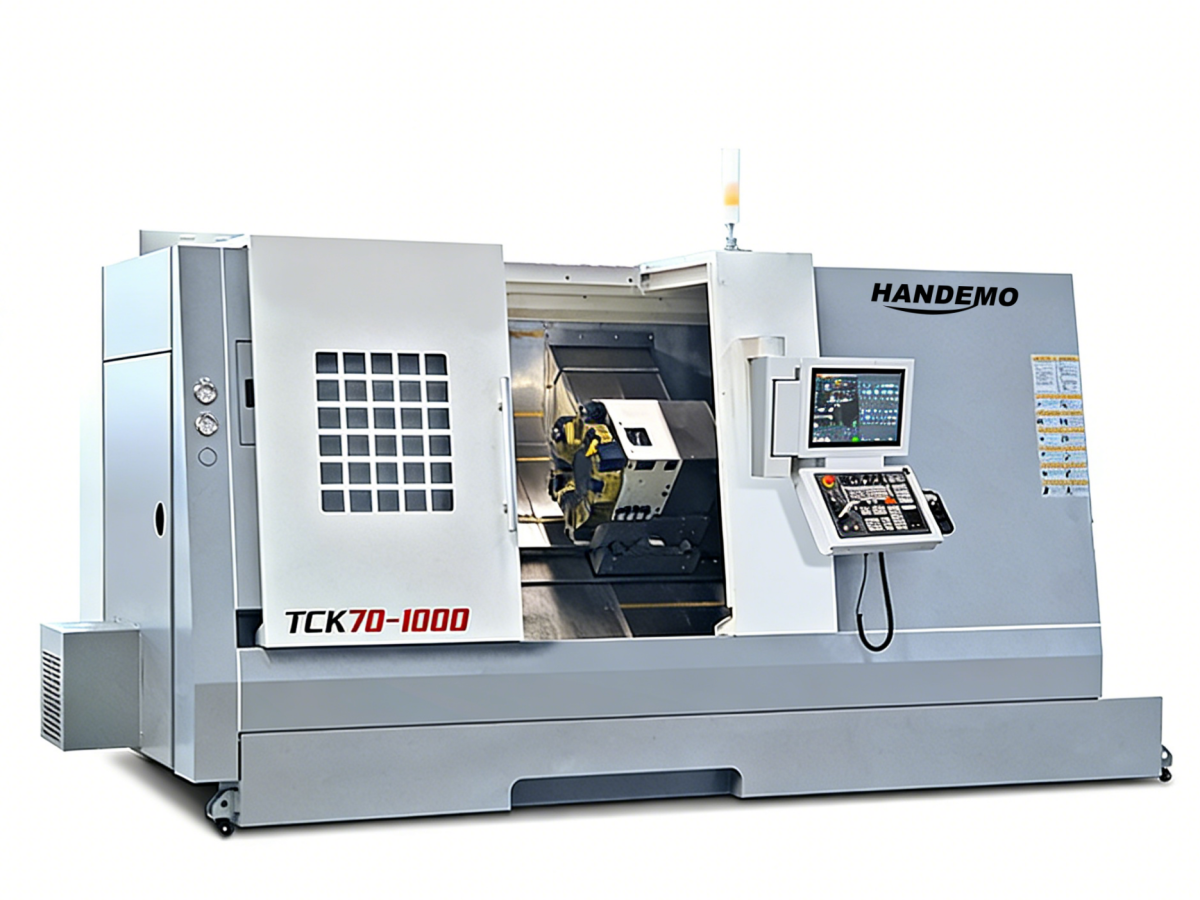

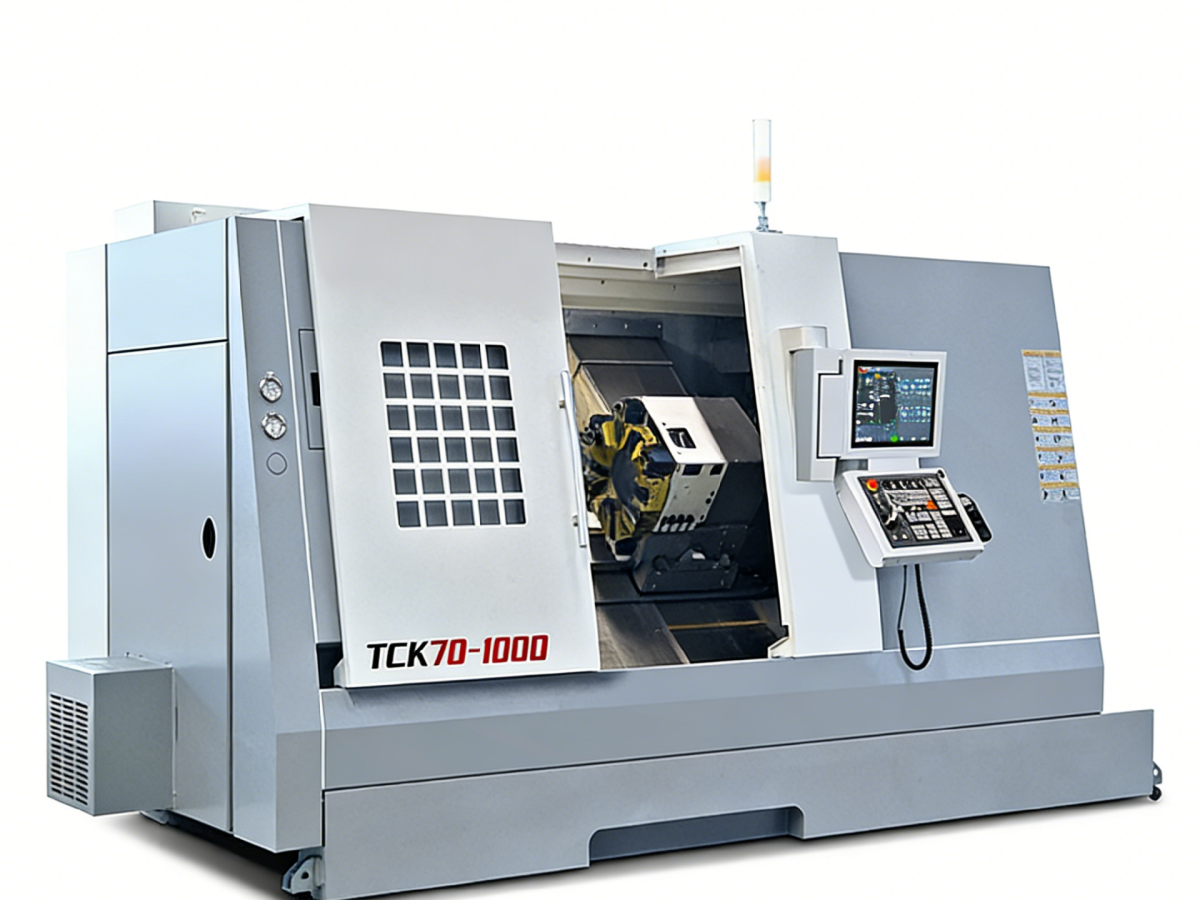

CNC Slant Bed Lathe
TCK70 General-Purpose High-Efficiency Model
- *Large scale heavy cutting lathe series, overall 45 degree Slant bed A2-8/A2-11 large through-hole spindle

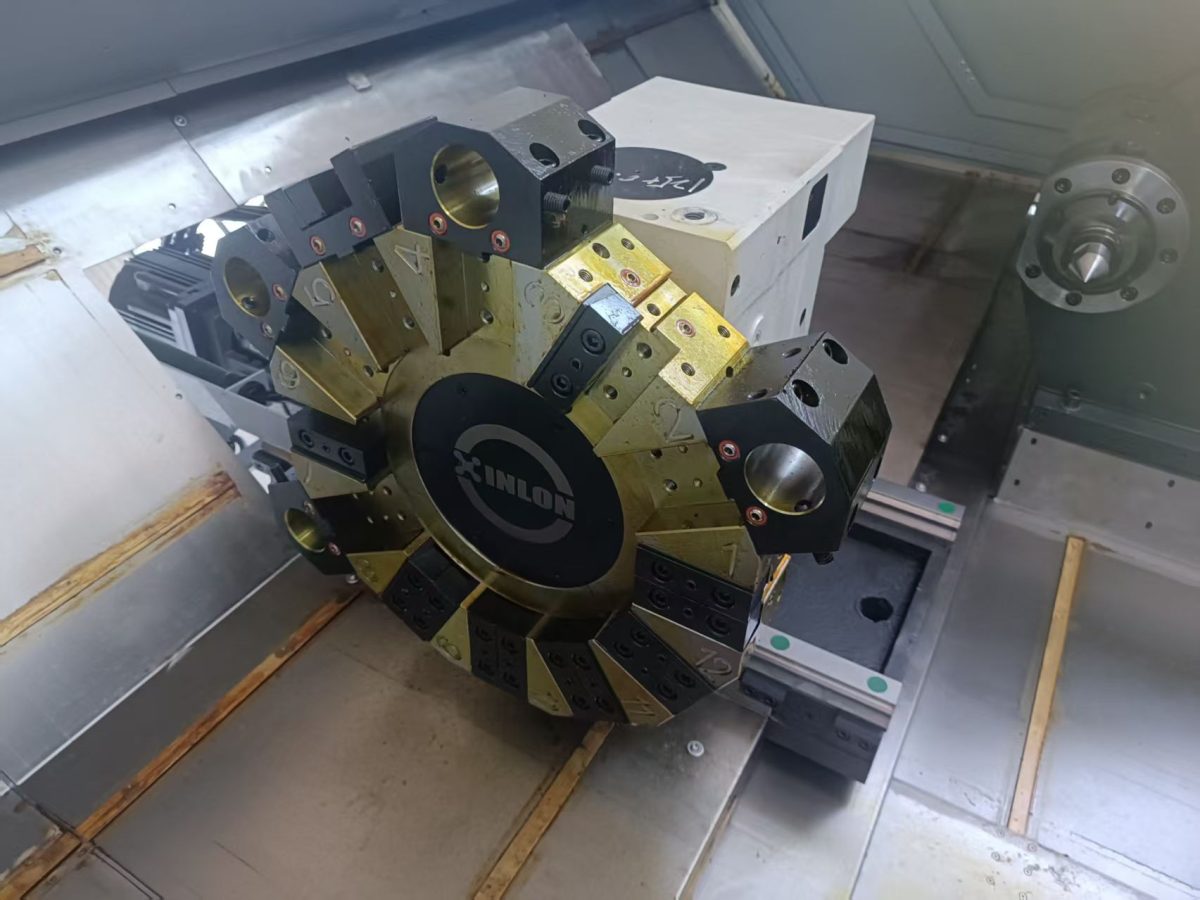

- *This machine tool adopts a 12 station 125 center high turret, with a larger turret span and a single 12mm cutting tool
- *Max. cutting length is 1000~3000mm
| Speicifications | TCK70-1500 |
|---|---|
| Max. swing over bed(mm) | 720 |
| Max. turning length(mm) | 1500 |
| Max. turning diameter(mm) | 500 |
| Max. swing over cross slide(mm) | 420 |
| Spindle nose type / code | A2-8/A2-11 |
| Spindle bore diameter(mm) | 80 |
| Max. bar capacity(mm) | 70 |
| Spindle motor output power（KW） | 18.5 |
| Rapid traverse –X‑axis（m/min） | 12 |
| Rapid traverse – Z-axis（m/min） | 16 |
| Travel – X‑axis(mm) | 250 |
| Travel – Z‑axis(mm) | 1520 |
| Tailstock travel(mm) | 1400 |
| Tailstock quill diameter(mm) | 110 |
| Tailstockquill stroke(mm) | 100 |
| Approx. gross weight(mm) | 8500 |
