CNC Slant Bed Lathe

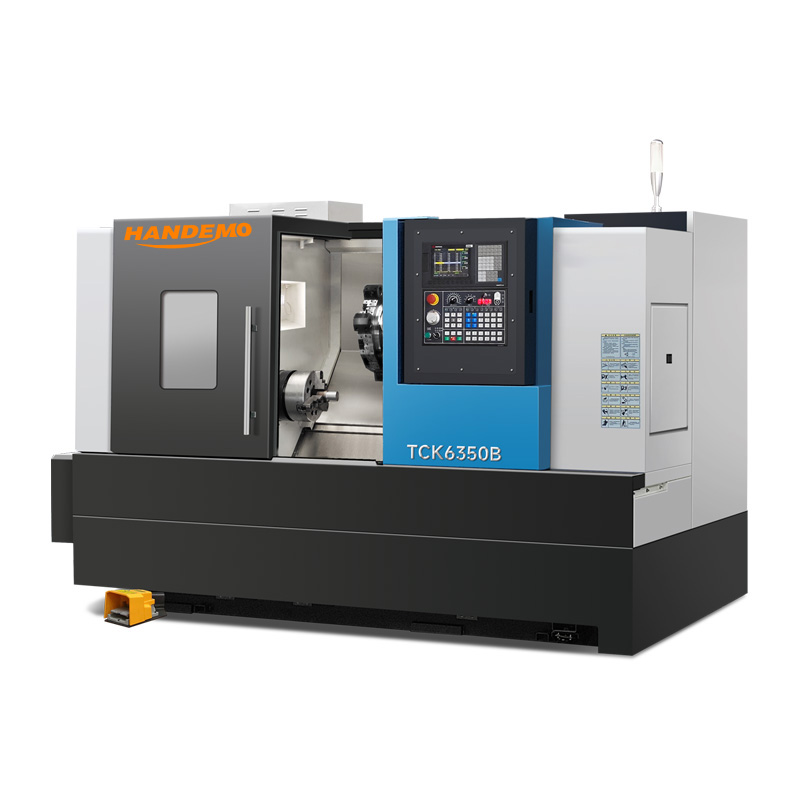

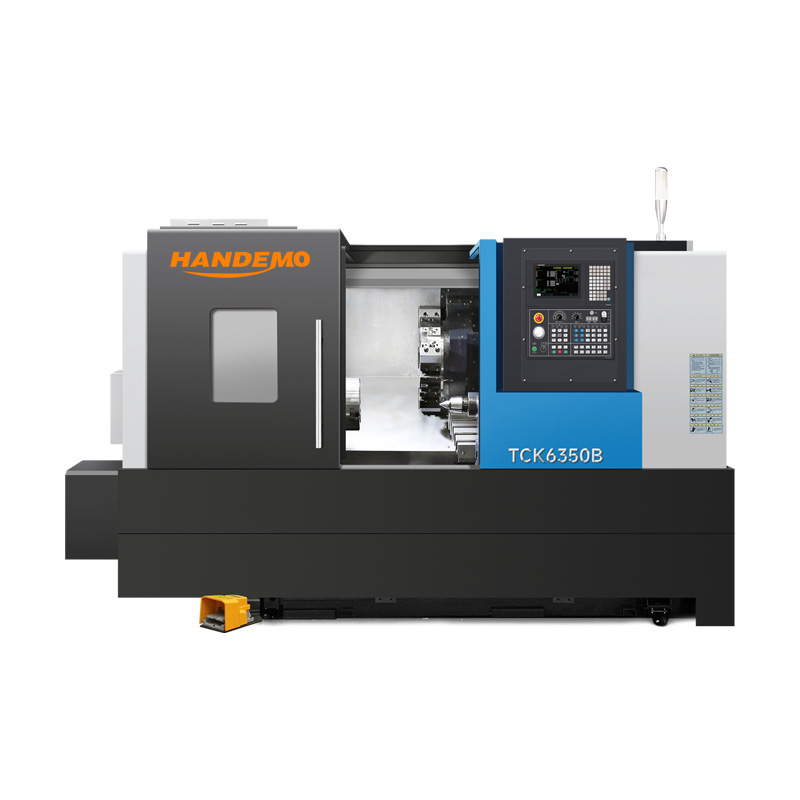

TCK6350B Heavy-Duty Industrial Model

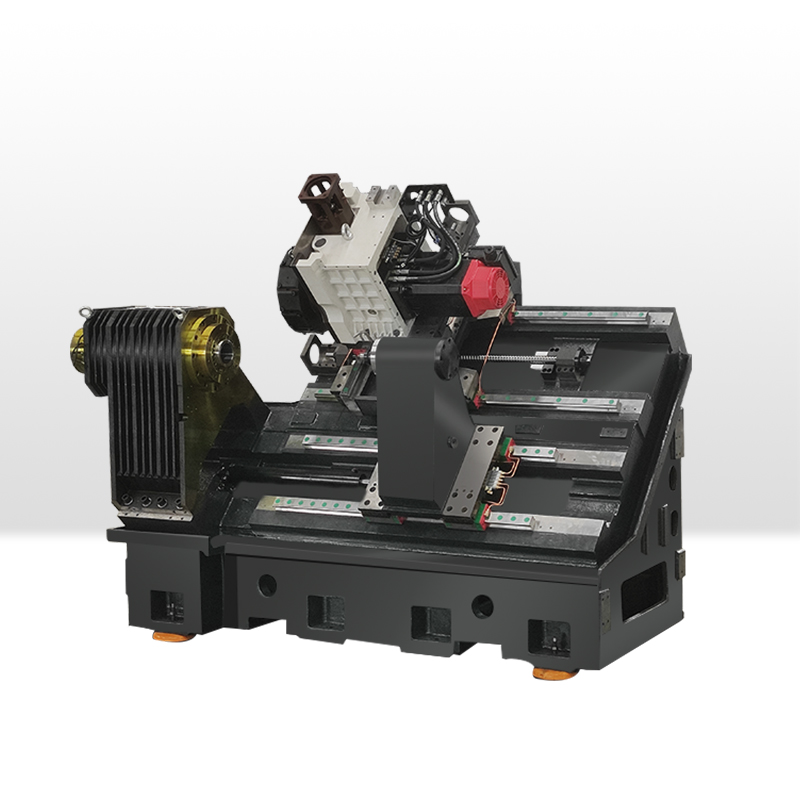

- *Heavy duty hard rail lathe
- *Capable of long-term unilateral cutting of 12mm
- *Box type spindle, through-hole 96mm, bar material 85mm
| Speicifications | TCK6350B |
|---|---|
| Max. turning diameter on bed(mm) | 630 |
| Max. cutting length(mm) | 500 |
| Max. cutting diameter(mm) | 480 |
| Max. turning diameter on the skateboard(mm) | 370 |
| Spindle nose type | A2-8 |
| Main shaft hole diameter(mm) | 96 |
| Max. over bar diameter(mm) | 85 |
| Spindle speed range（r/min） | 4500 |
| Spindle motor power（KW） | 18.5 |
| Chuck type（inch） | 10 or 12 |
| X-axis Fast shift speed(m/min) | 15 |
| Z-axis Fast shift speed(m/min) | 15 |
| X-axis travel(mm) | 270 |
| Z-axis travel(mm) | 690 |
| Tail seat travel(mm) | 500 |
| Tail seat sleeve travel(mm) | 100 |

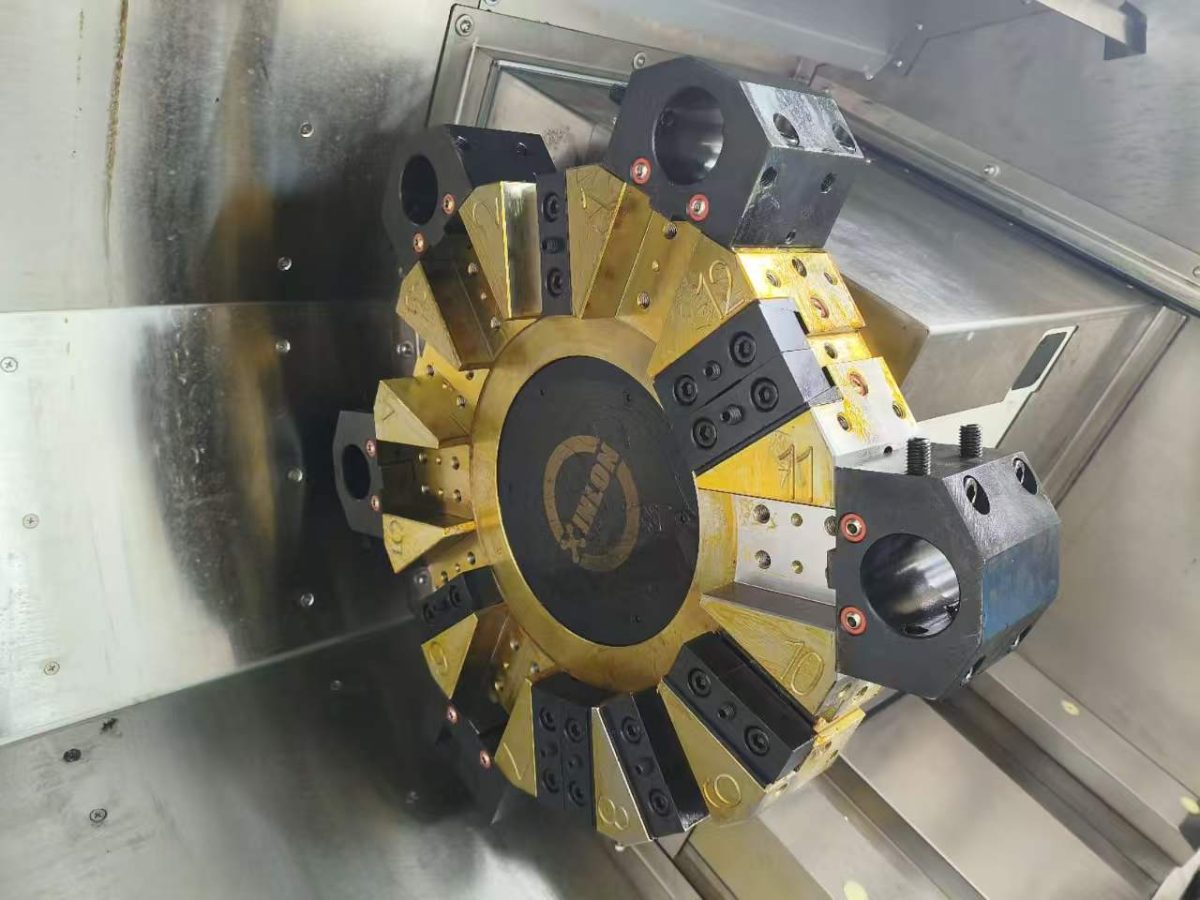

| Standard knife holder form | Horizontal 12 station servo turret |
| Machine size (mm) | 3300L*1750W*1890H |
| Machine weight (KG) | 4300 |
