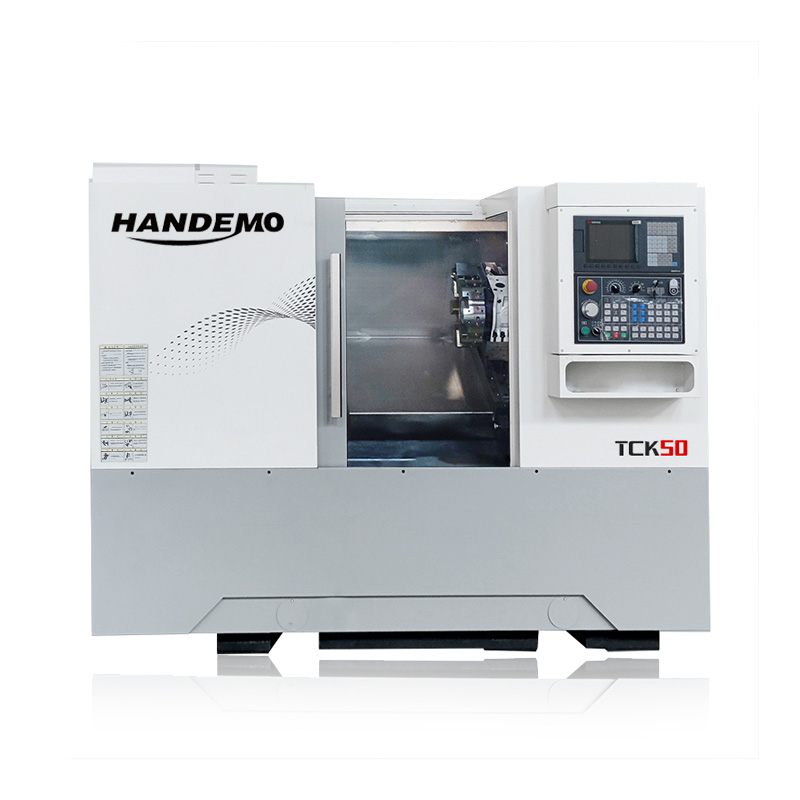

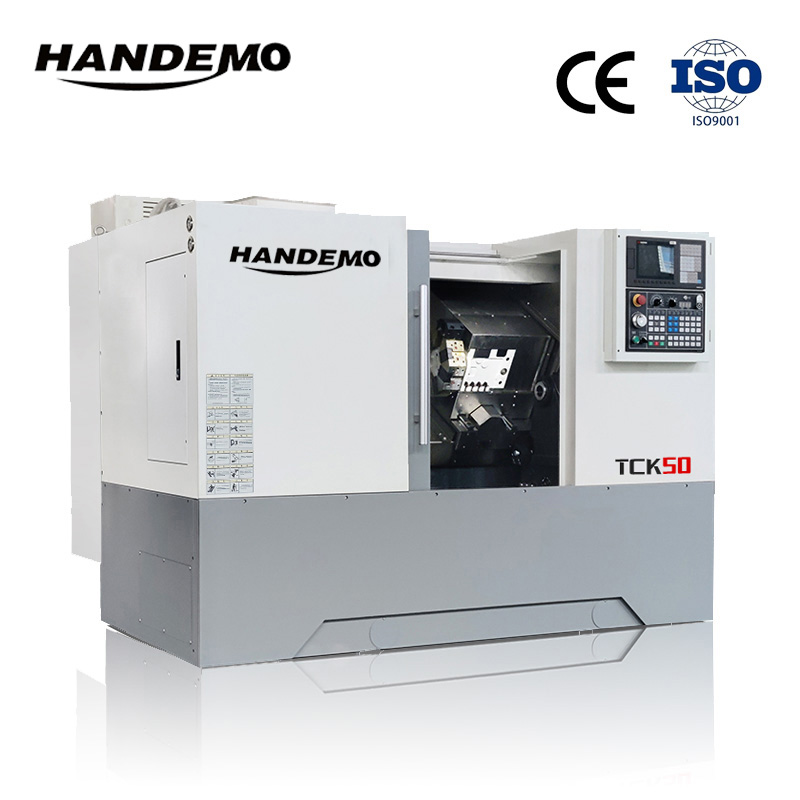

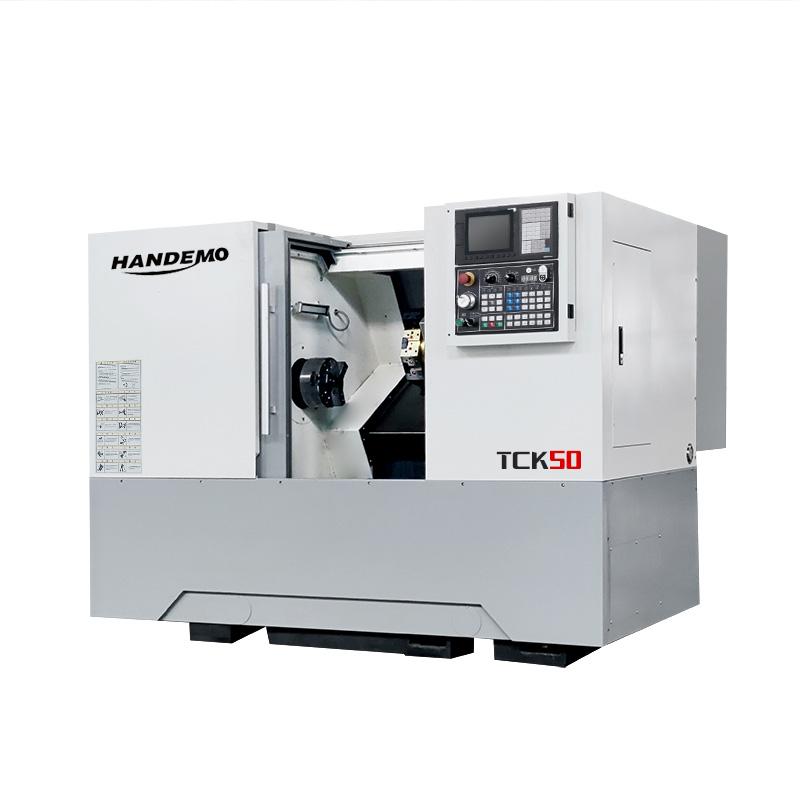

TCK50 CNC Slant Bed Lathe

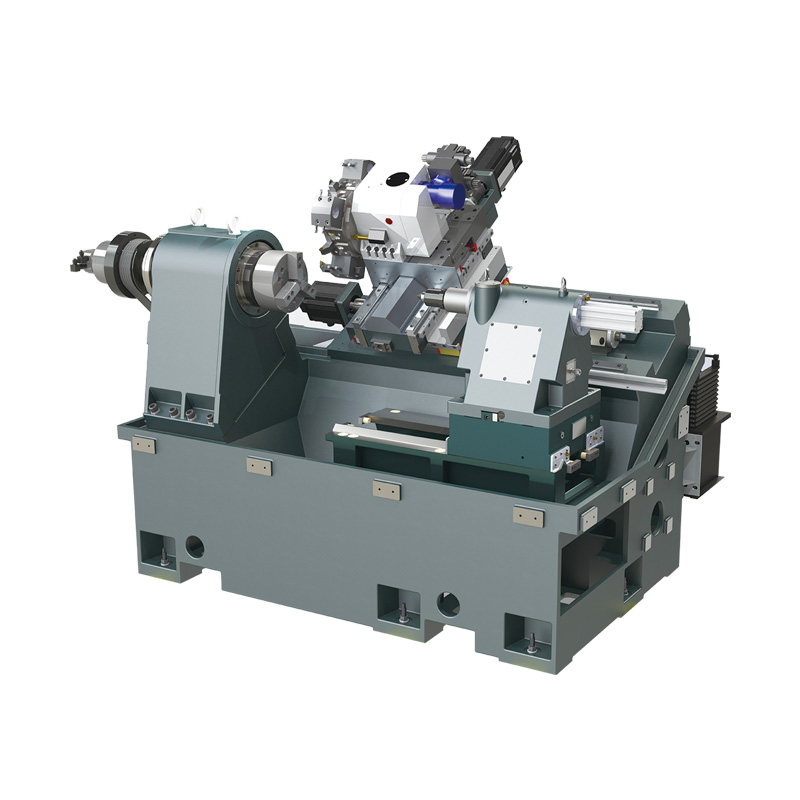

- *30 ° Slant bed for convenient chip removal
- *Small footprint, saving land costs

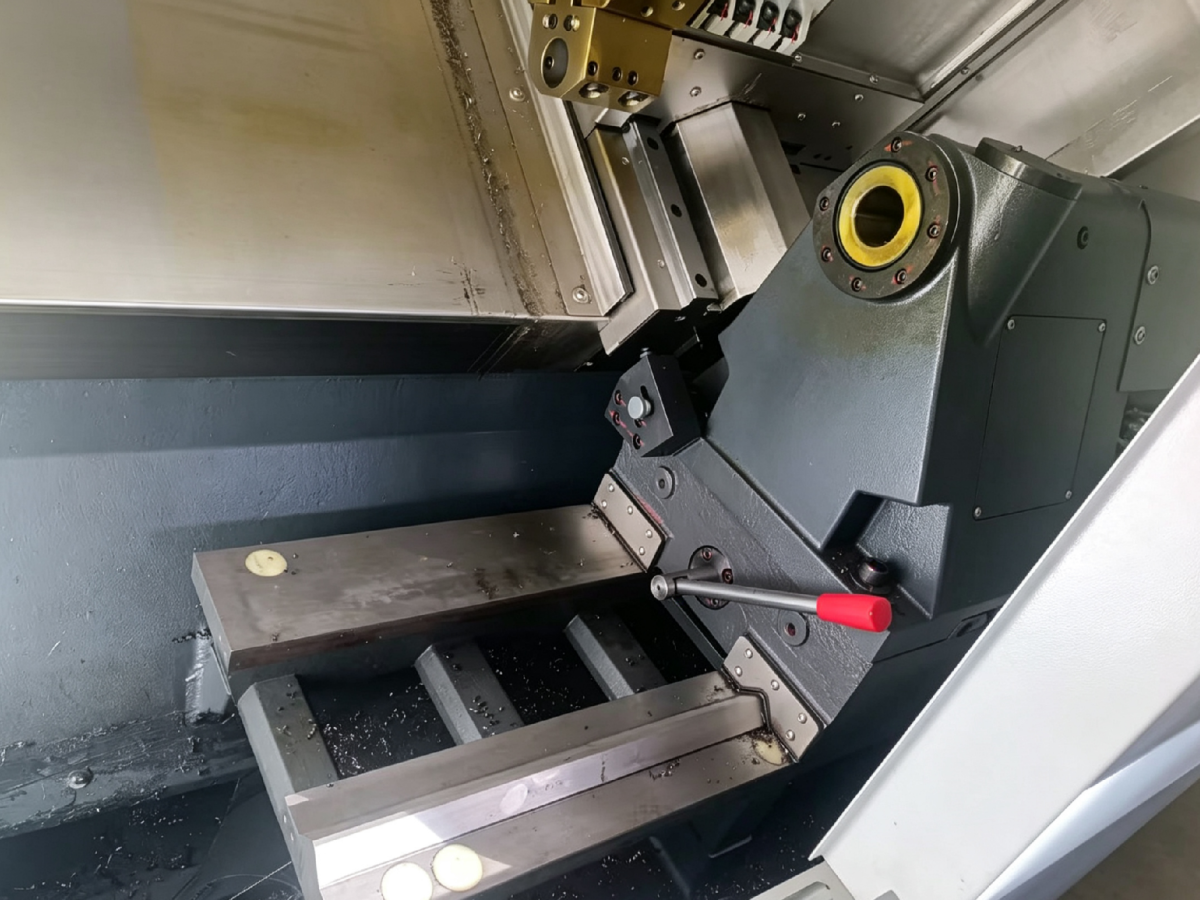

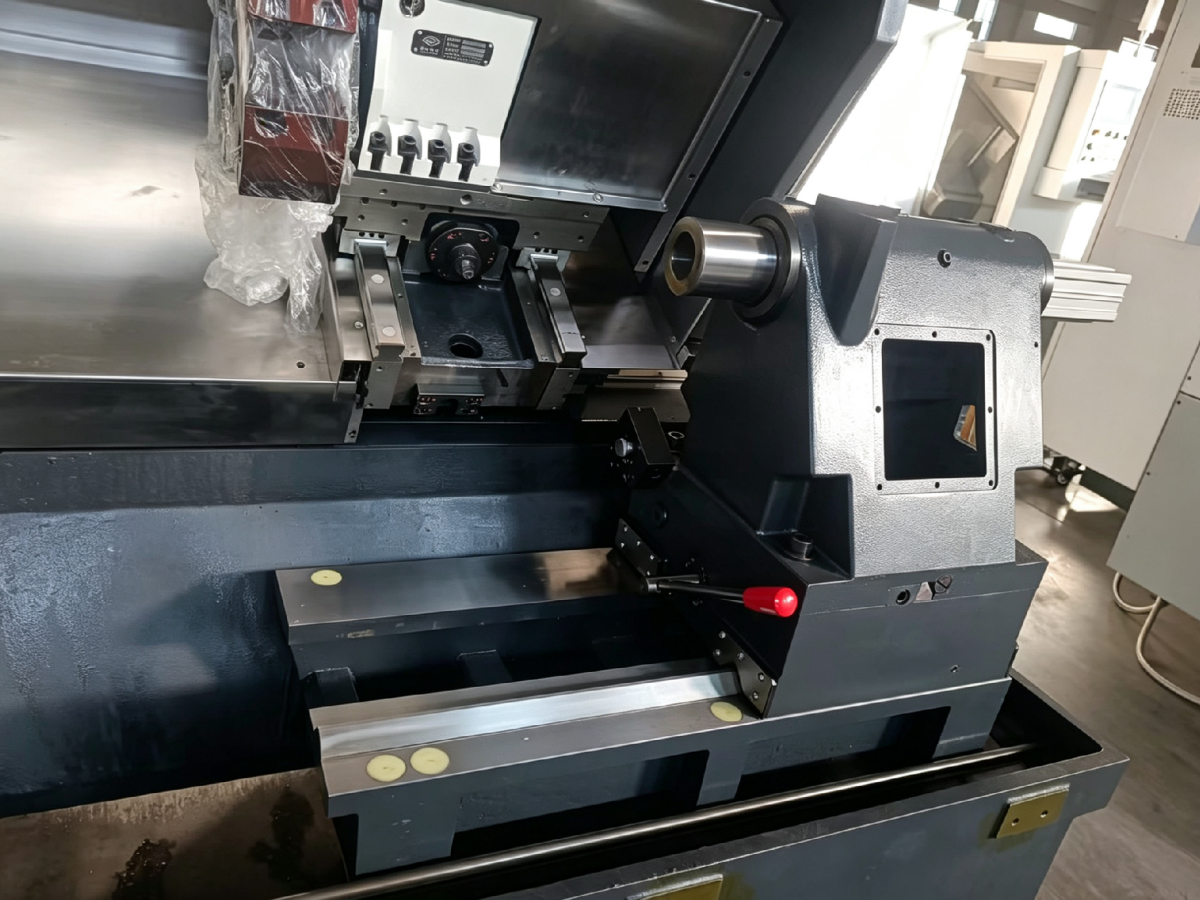

- *Hard rail tailstock for more stable processing
- X-axis travel(mm): 200
- Z-axis travel(mm): 550
- Tailseat travel(mm): 450
- Spindle speed range（r/min）: 4500
| Speicifications | TCK50 |
|---|---|
| Max. turning diameter on bed(mm) | 500 |
| Max. cutting length(mm) | 500 |
| Max. cutting diameter(mm) | 360 |
| Standard cutting diameter(mm) | 240 |
| Max. turning diameter on the skateboard(mm) | 300 |
| Spindle nose type | A2-6 |
| Main shaft hole diameter(mm) | 65 |
| Max. over bar diameter(mm) | 50 |
| Spindle speed range（r/min） | 4500 |
| Spindle motor power（KW） | 15 |
| Chuck type（inch） | 8 |
| X-axis Fast shift speed(m/min) | 30 |
| Z-axis Fast shift speed(m/min) | 30 |
| X-axis travel(mm) | 200 |
| Z-axis travel(mm) | 550 |
| Tailseat travel(mm) | 450 |
| Tailstock sleeve stroke(mm) | 100 |
| Tailstock sleeve cone hole taper (Mohs) | 5# |
| Standard knife holder form | Horizontal 8 station |
| Machine size (mm) | 2300L*1700W*1930H |
| Machine weight (KG) | 3600 |
| X-axis Positioning Accuracy (mm) | 0.008 |
| Y-axis Positioning Accuracy (mm) | 0.007 |
| Z-axis Positioning Accuracy (mm) | 0.002 |
