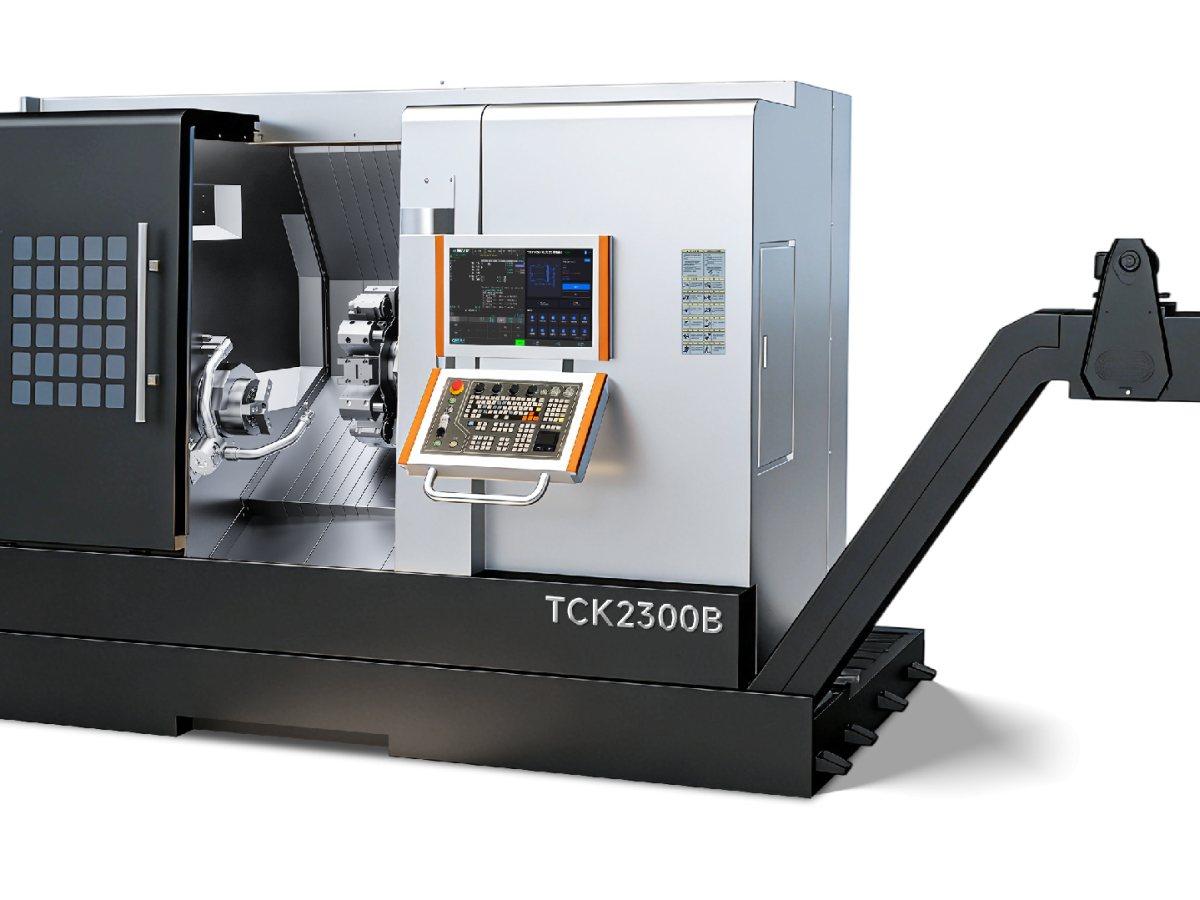

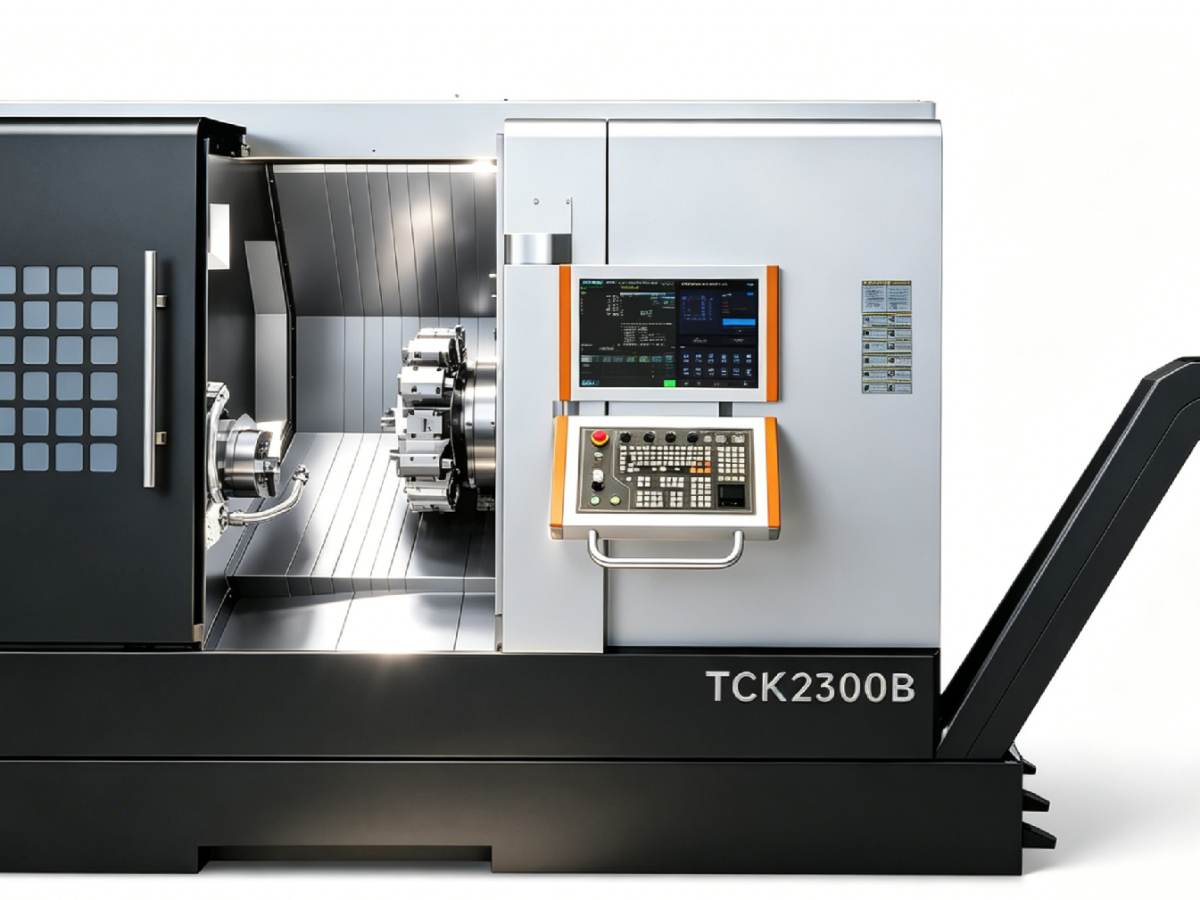

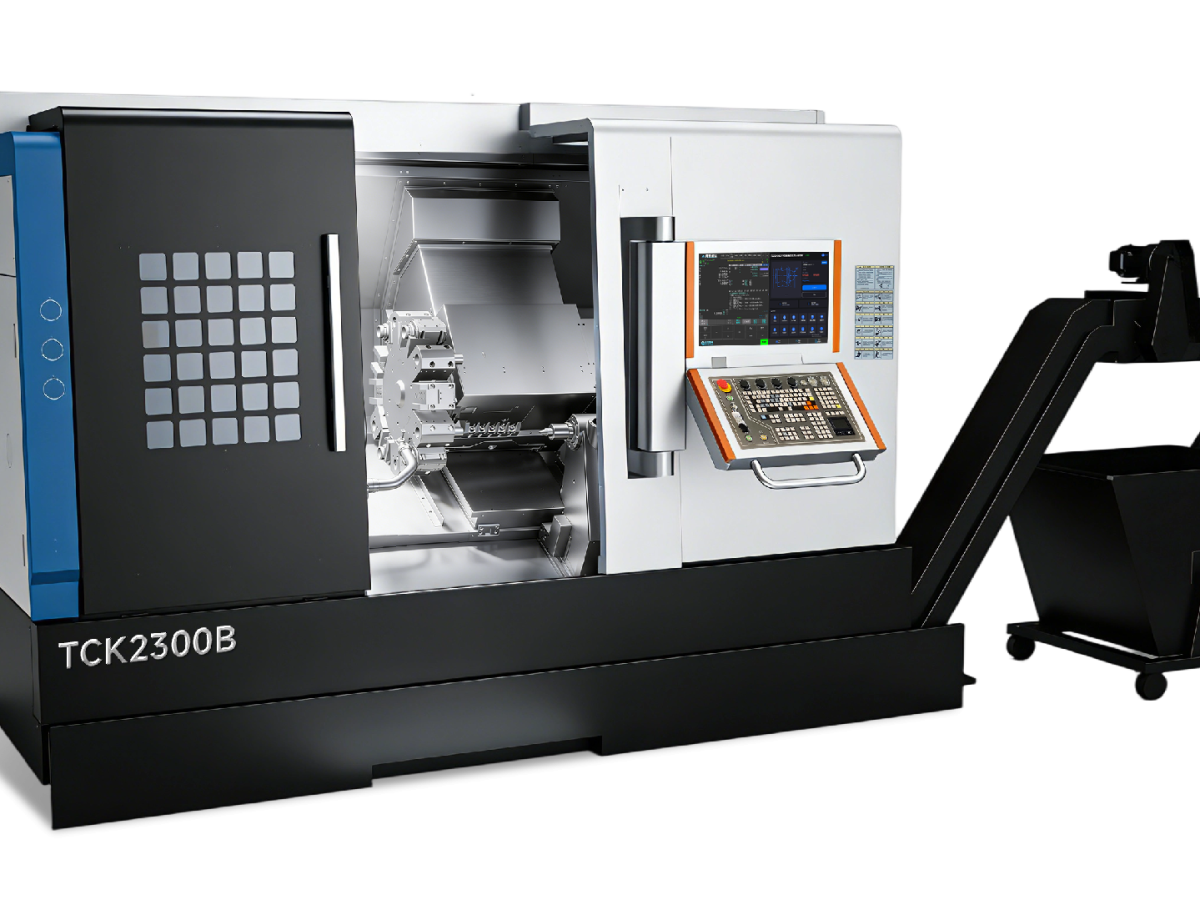

TCK2300B CNC Mill-Turn Machine
- *Max. swing over bed 700 mm, max turning length 500 mm, max turning diameter 400 mm, max swing over cross slide 400 mm
- *Spindle nose type 400, spindle bore 65 mm, max bar capacity 50 mm
- *X-axis travel 240 mm, Z-axis travel 500 mm, Y-axis travel ±60 mm, X/Z rapid traverse 20/20 m/min, Y rapid traverse 10 m/min
- *Standard tool post: Horizontal 12-station live tool turret
| Speicifications | TCK2300B |
|---|---|
| Max. swing over bed(mm) | 700 |
| Max. turning length(mm) | 500 |
| Max. turning diameter(mm) | 400 |
| Max. swing over cross slide(mm) | 400 |
| Spindle nose type / code | A2-6 |
| Spindle bore diameter(mm) | 65 |
| Max. bar capacity(mm) | 50 |
| X-axis rapid traverse(m/min) | 20 |
| Z-axis rapid traverse(m/min) | 20 |
| Y-axis rapid traverse(m/min) | 10 |
| Y‑axistravel(mm) | ±60 |
| X-axis travel(mm) | 240 |
| Z-axis travel(mm) | 500 |
| Standard tool post type | Horizontal 12‑station live tool turret |
