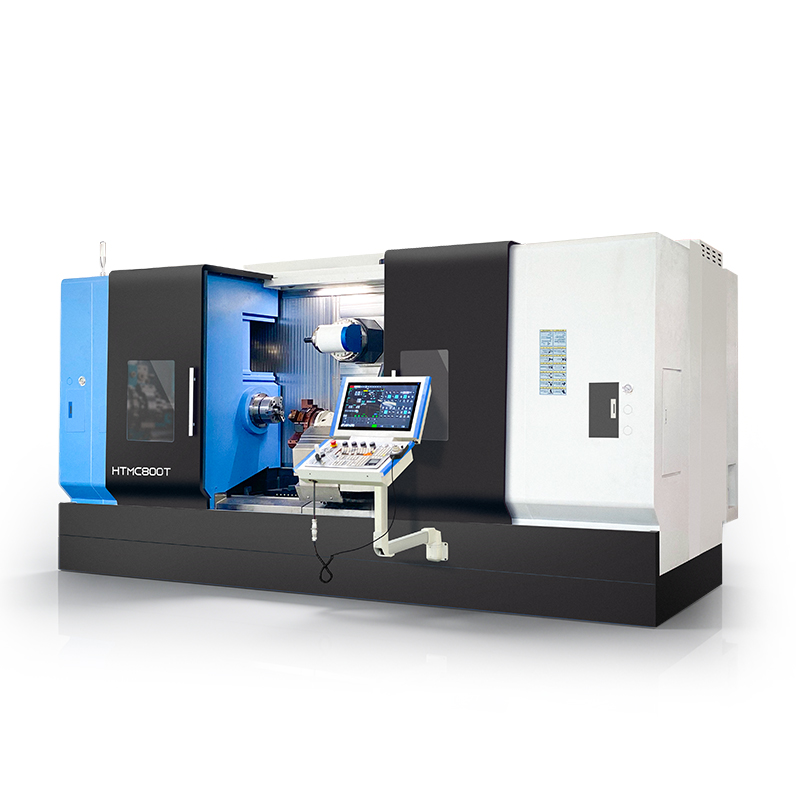

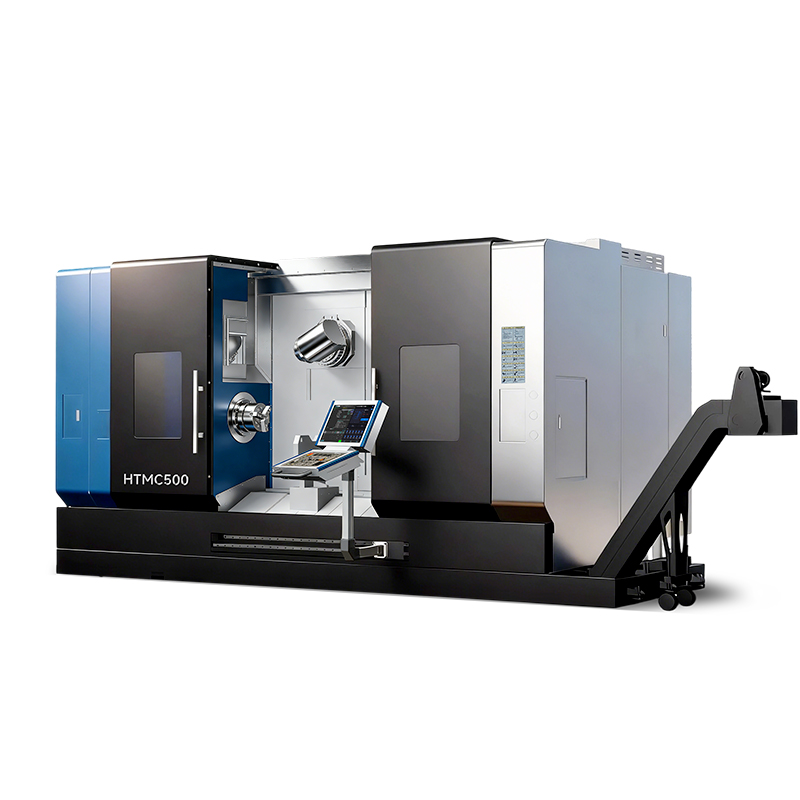

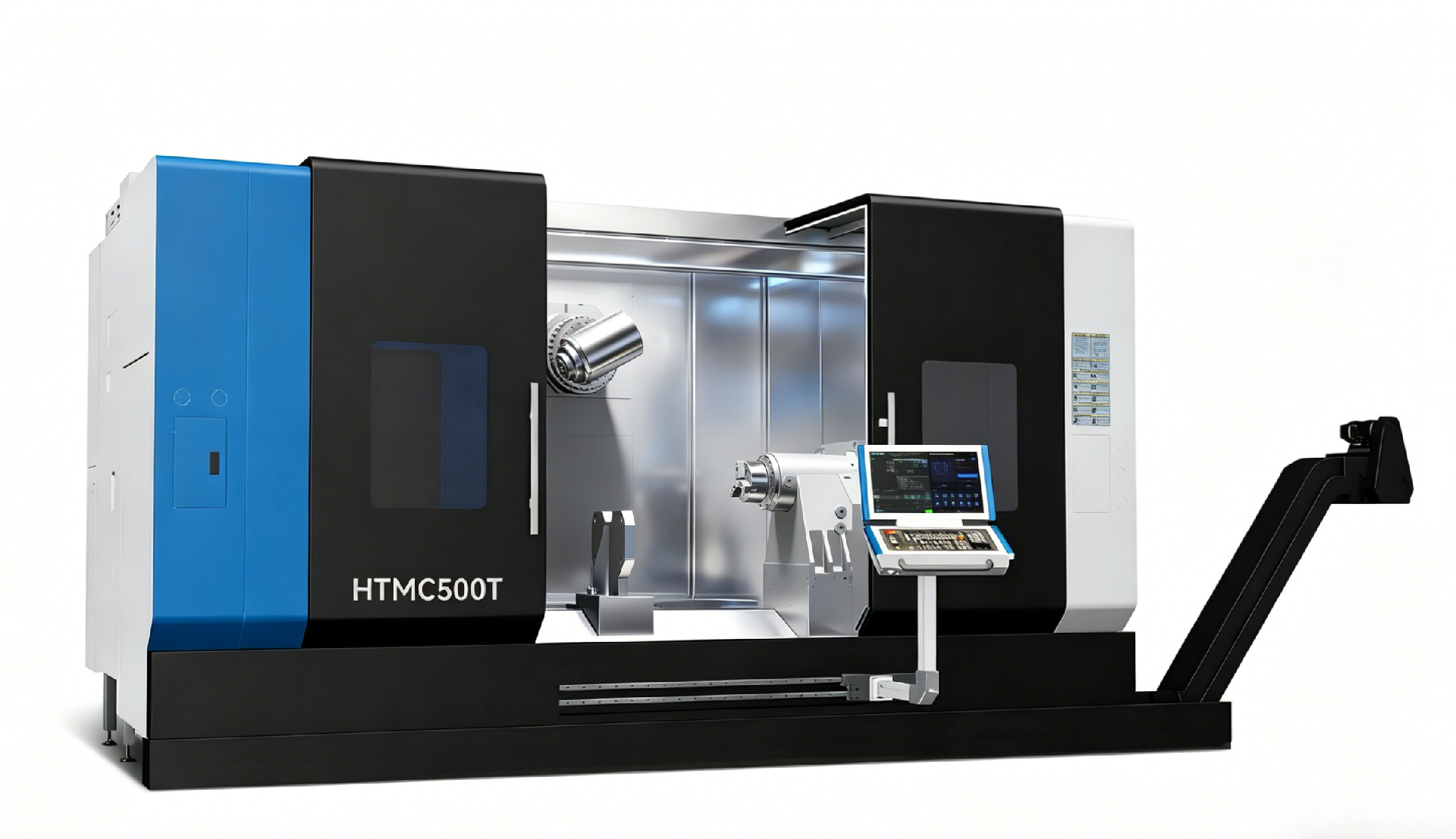

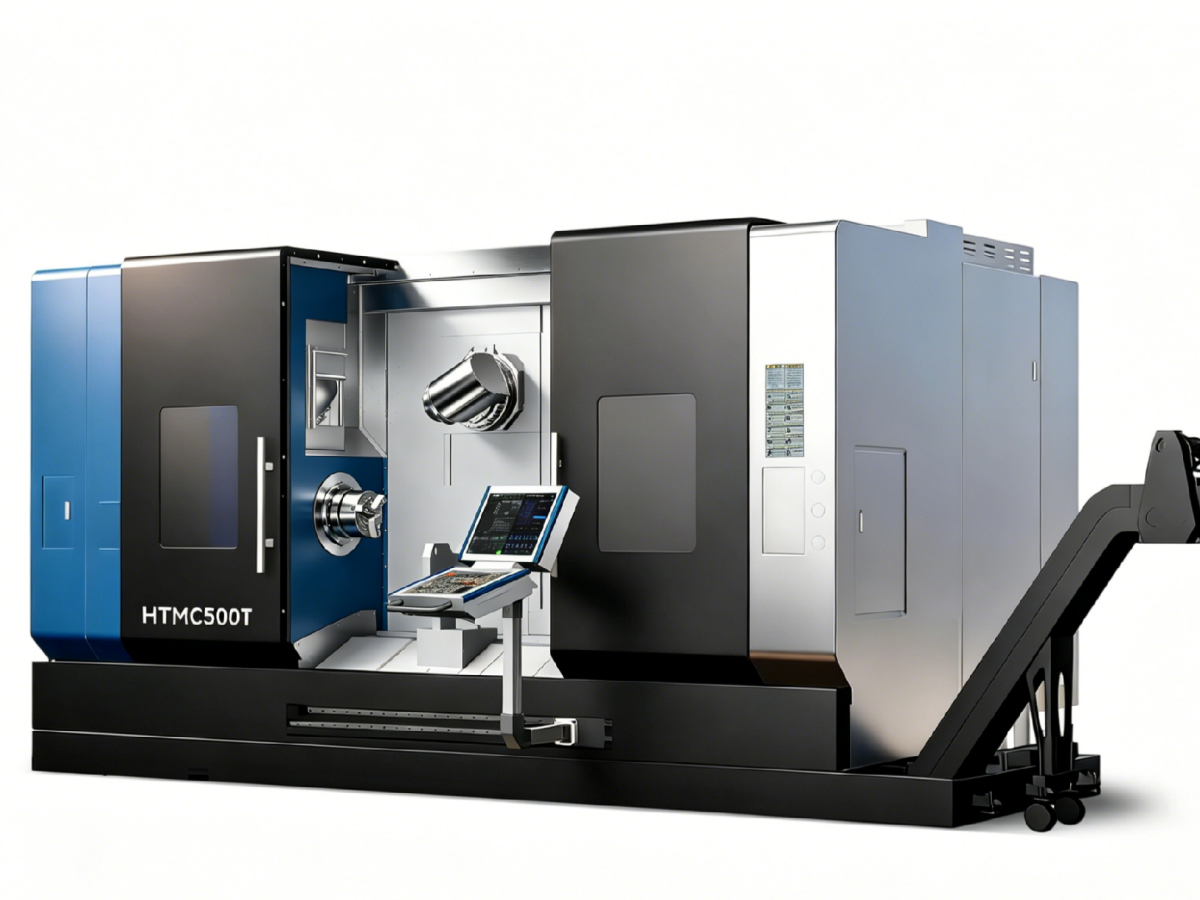

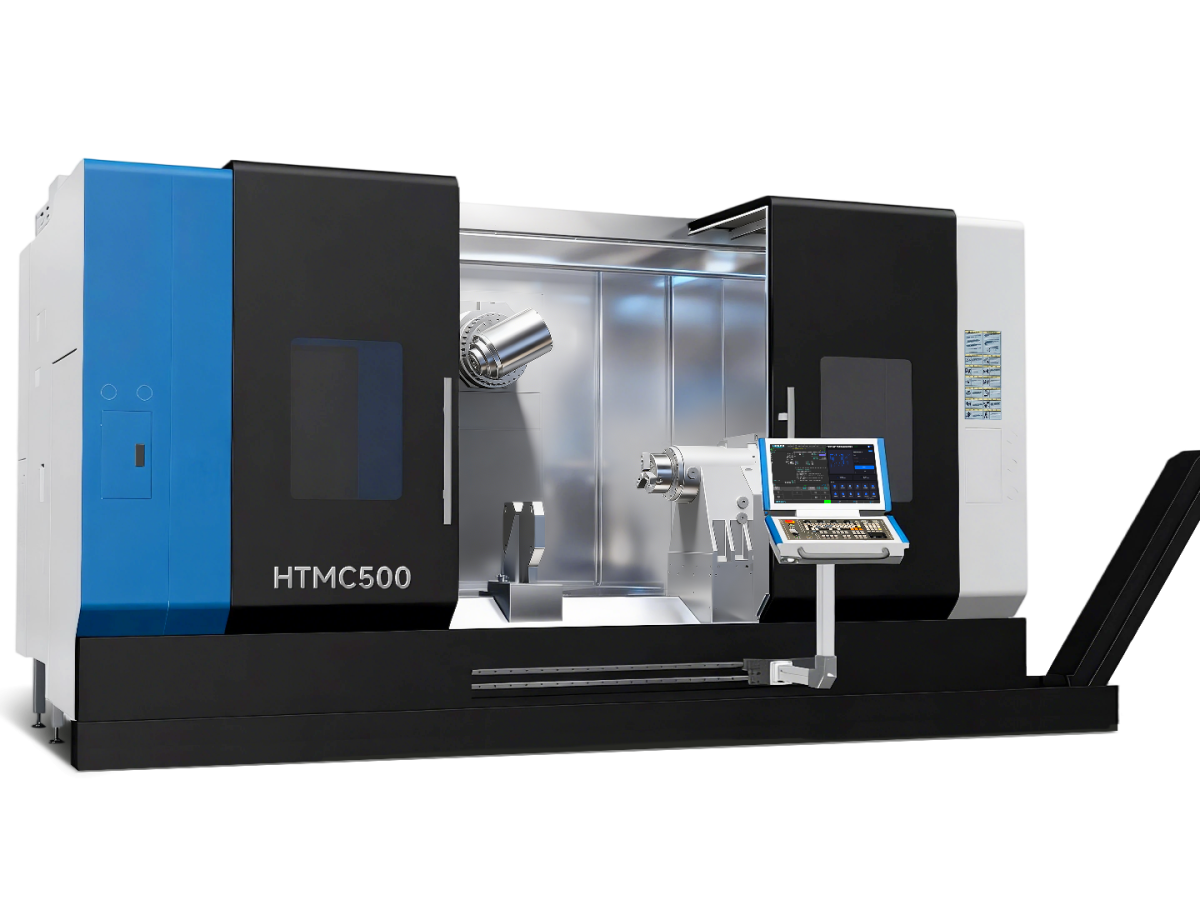

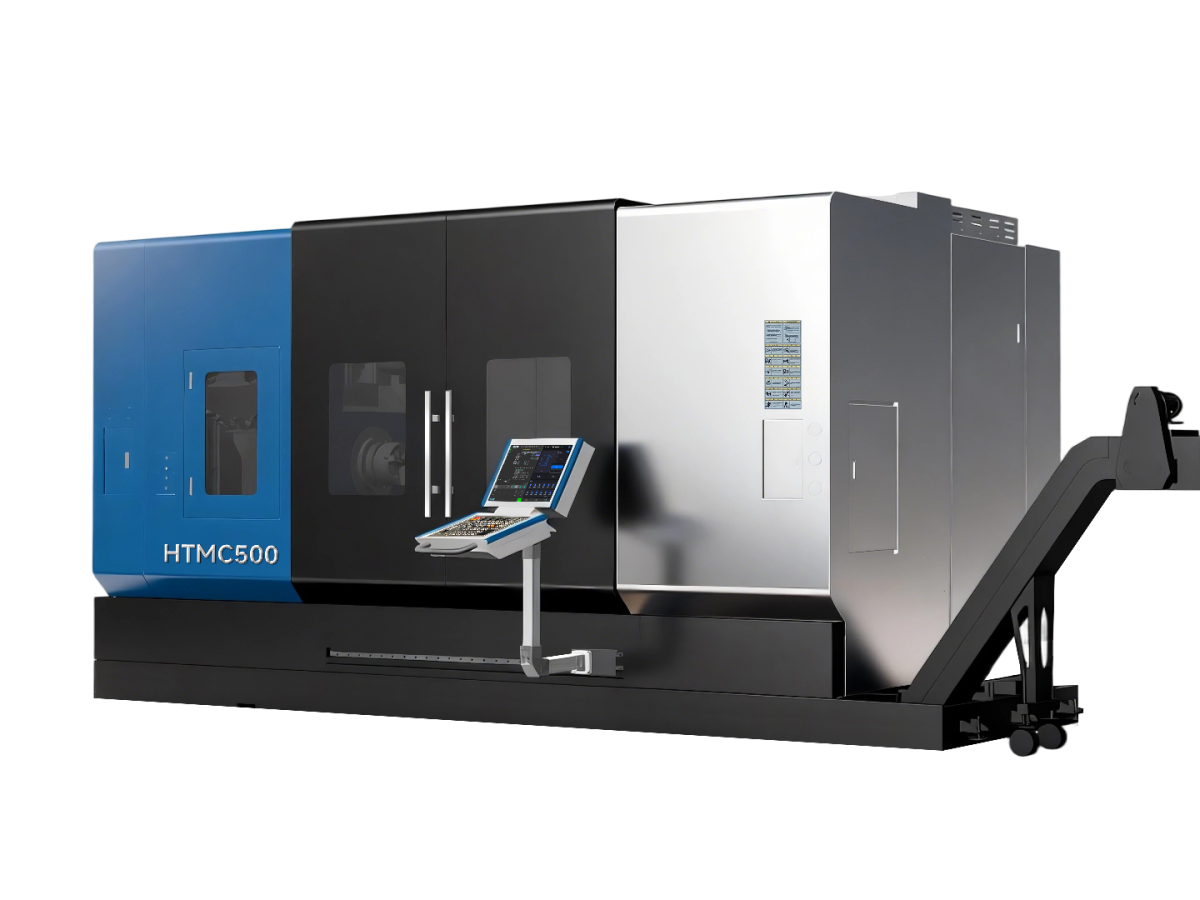

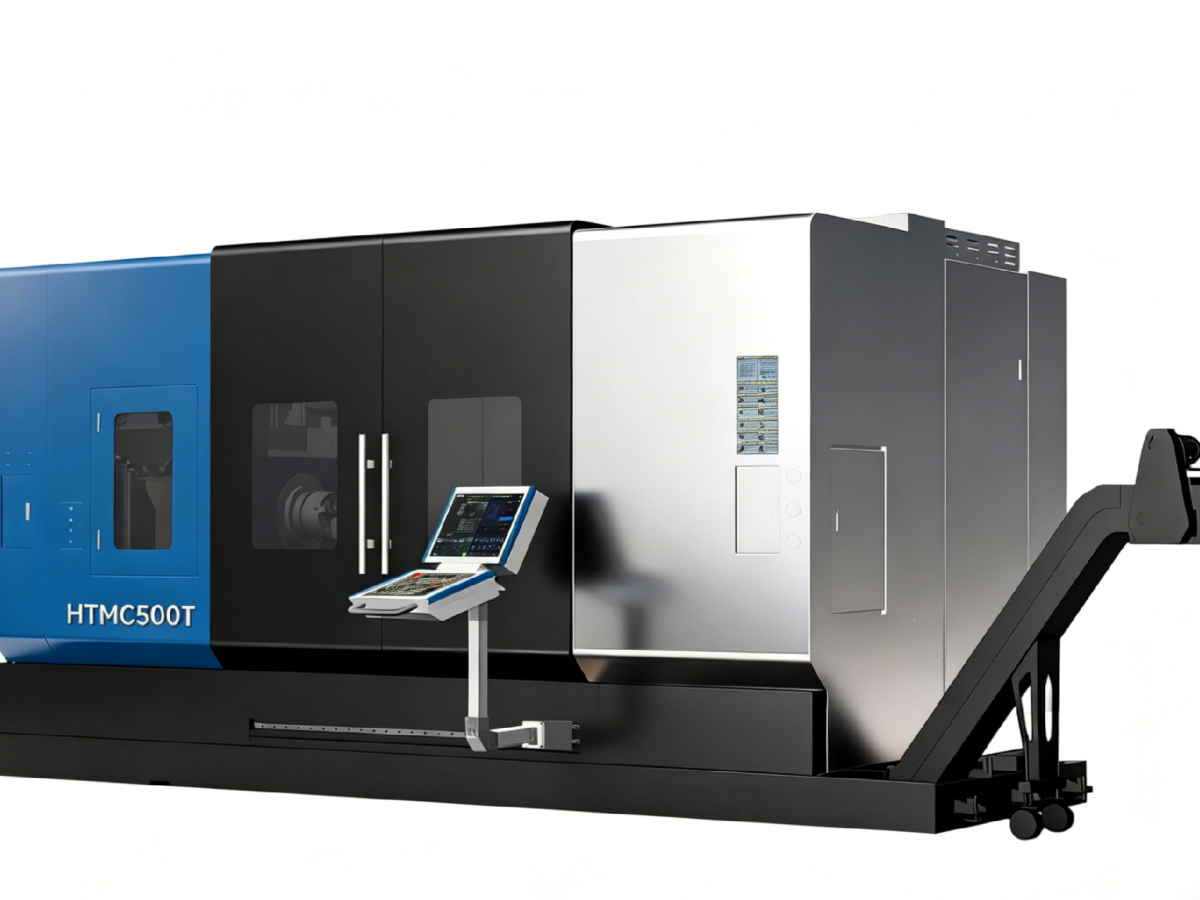

HTMC500T CNC Mill-Turn Machine
- *Max. swing over bed 700 mm, max turning length 1250 mm, max turning diameter 500 mm, max swing over cross slide 700 mm
- *Spindle nose type A2-8, spindle bore 86 mm, max bar capacity 75 mm
- *X-axis travel 700 mm, Z-axis travel 1400 mm, Y-axis travel ±125 mm, X/Y/Z rapid traverse 12/12/12 m/min
- *Machine dimensions 6900×3800×2900 mm, approx. gross weight 14000 kg
| Speicifications | HTMC500T |
|---|---|
| Max. swing over bed(mm) | 700 |
| Max. turning length(mm) | 1250 |
| Max. turning diameter(mm) | 500 |
| Max. swing over cross slide(mm) | 700 |
| Spindle nose type / code | A2-8 |
| Spindle bore diameter(mm) | 86 |
| Max. bar capacity(mm) | 75 |
| X-axis rapid traverse(m/min) | 12 |
| Z-axis rapid traverse(m/min) | 12 |
| Y-axis rapid traverse(m/min) | 12 |
| Y‑axis travel(mm) | ±125 |
| X-axis travel(mm) | 700 |
| Z-axis travel(mm) | 1400 |
| Machine dimensions(mm) | 6900L× 3800W× 2900H |
| Approx. gross weight（KG) | 14000 |
