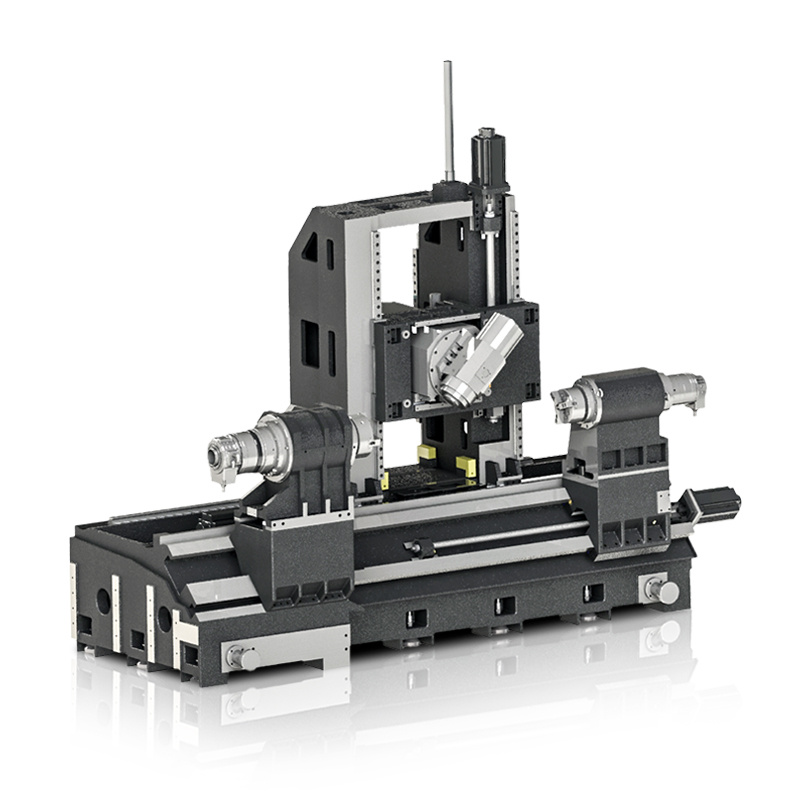

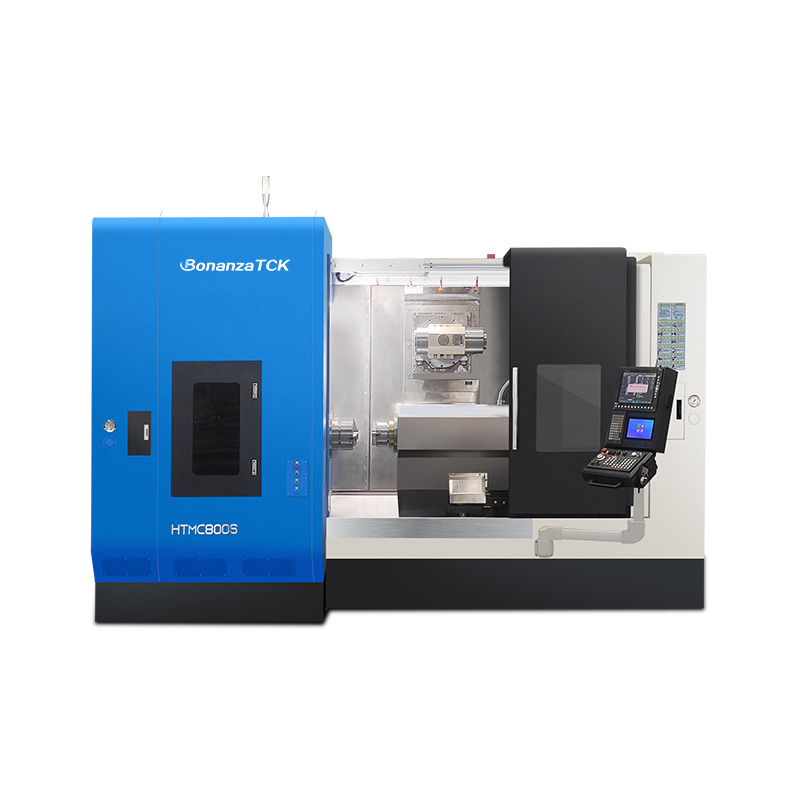

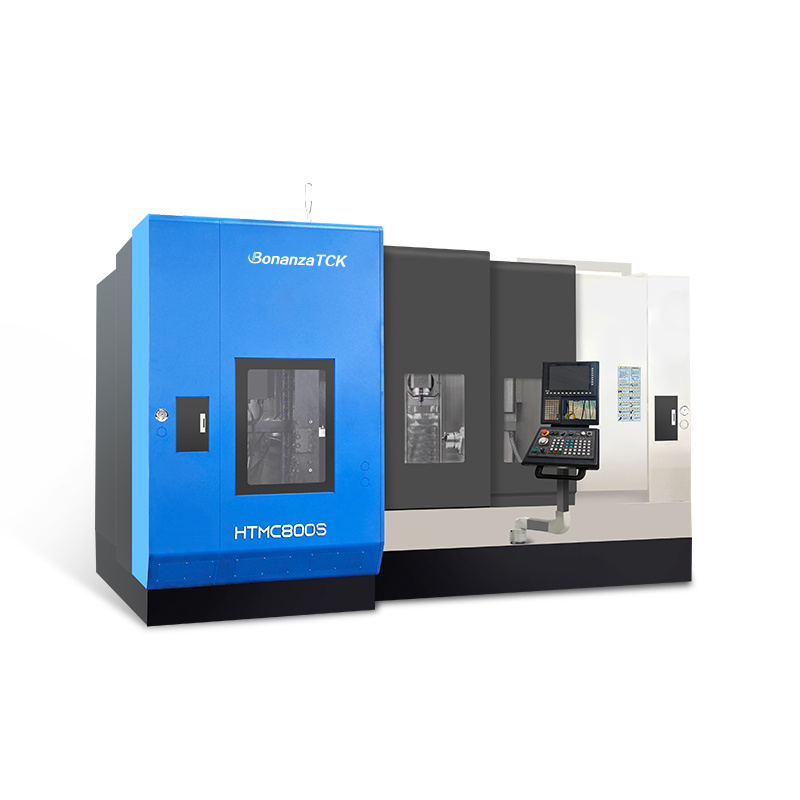

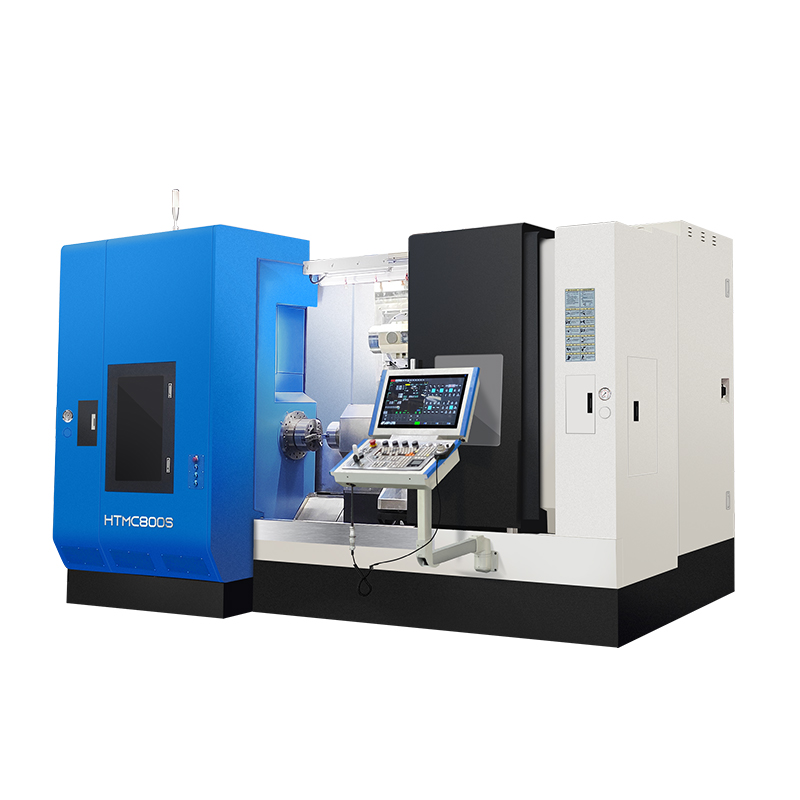

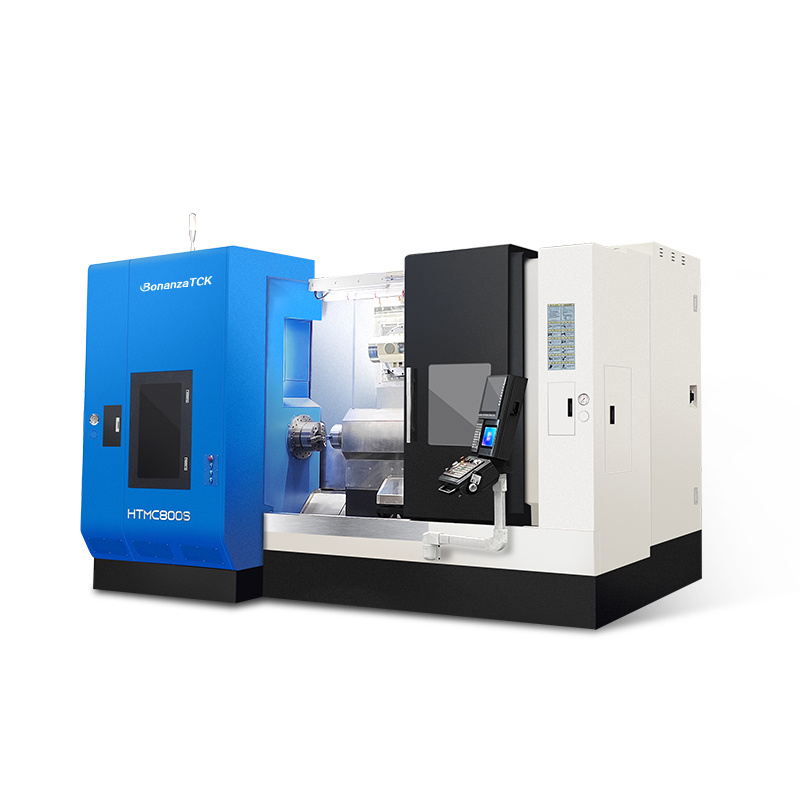

HTMC800S CNC Mill-Turn Machine
- *Max. swing over bed 600 mm, max turning length 1200 mm, max turning diameter 580 mm, max swing over cross slide 600 mm
- *Spindle nose type A2-6/A2-8, spindle bore 87 mm, max bar capacity 67 mm
- *X-axis travel 720 mm, Z-axis travel 1550 mm, Y-axis travel ±125 mm, X/Y/Z rapid traverse 12/12/12 m/min
- *Approx. gross weight 17000 kg
| Speicifications | TCK70Y-2000 |
|---|---|
| Max. swing over bed(mm) | 600 |
| Max. turning length(mm) | 1200 |
| Max. turning diameter(mm) | 580 |
| Max. swing over cross slide(mm) | 600 |
| Spindle nose type / code | A2-6/A2-8 |
| Spindle bore diameter(mm) | 87 |
| Max. bar capacity(mm) | 67 |
| X-axis rapid traverse(m/min) | 12 |
| Y-axis rapid traverse(m/min) | 12 |
| Z-axis rapid traverse(m/min) | 12 |
| Y‑axistravel(mm) | ±125 |
| X-axis travel(mm) | 720 |
| Z-axis travel(mm) | 1550 |
| Approx. gross weight（KG) | 17000 |
