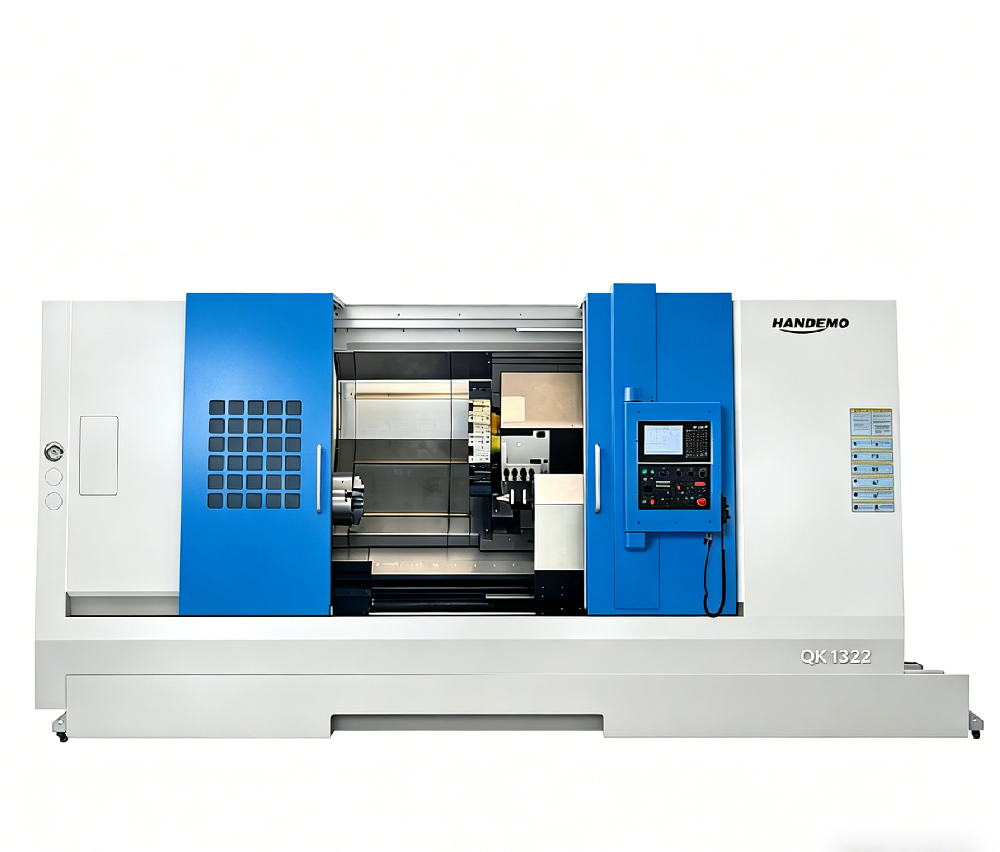

QK1322 CNC Mill-Turn Machine
- *Max. swing over bed 1000 mm, max turning length 1350 mm, max turning diameter 800 mm, max swing over cross slide 550 mm
- *Spindle nose type A2-15, spindle bore 240 mm, max bar capacity 220 mm
- *X-axis travel 450 mm, Z-axis travel 1600 mm, X/Z rapid traverse 12/12 m/min
- *Machine dimensions 4930×2770×2570 mm, approx. gross weight 12000 kg
| Speicifications | QK1322 |
|---|---|
| Max. swing over bed(mm) | 1000 |
| Max. turning length(mm) | 1350 |
| Max. turning diameter(mm) | 800 |
| Max. swing over cross slide(mm) | 550 |
| Spindle nose type / code | A2-15 |
| Spindle bore diameter(mm) | 240 |
| Max. bar capacity(mm) | 220 |
| X-axis rapid traverse(m/min) | 12 |
| Z-axis rapid traverse(m/min) | 12 |
| X-axis travel(mm) | 450 |
| Z-axis travel(mm) | 1600 |
| Machine dimensions(mm) | 4930L× 2770W× 2570H |
| Approx. gross weight（KG) | 12000 |
