CNC Mill-Turn Machines

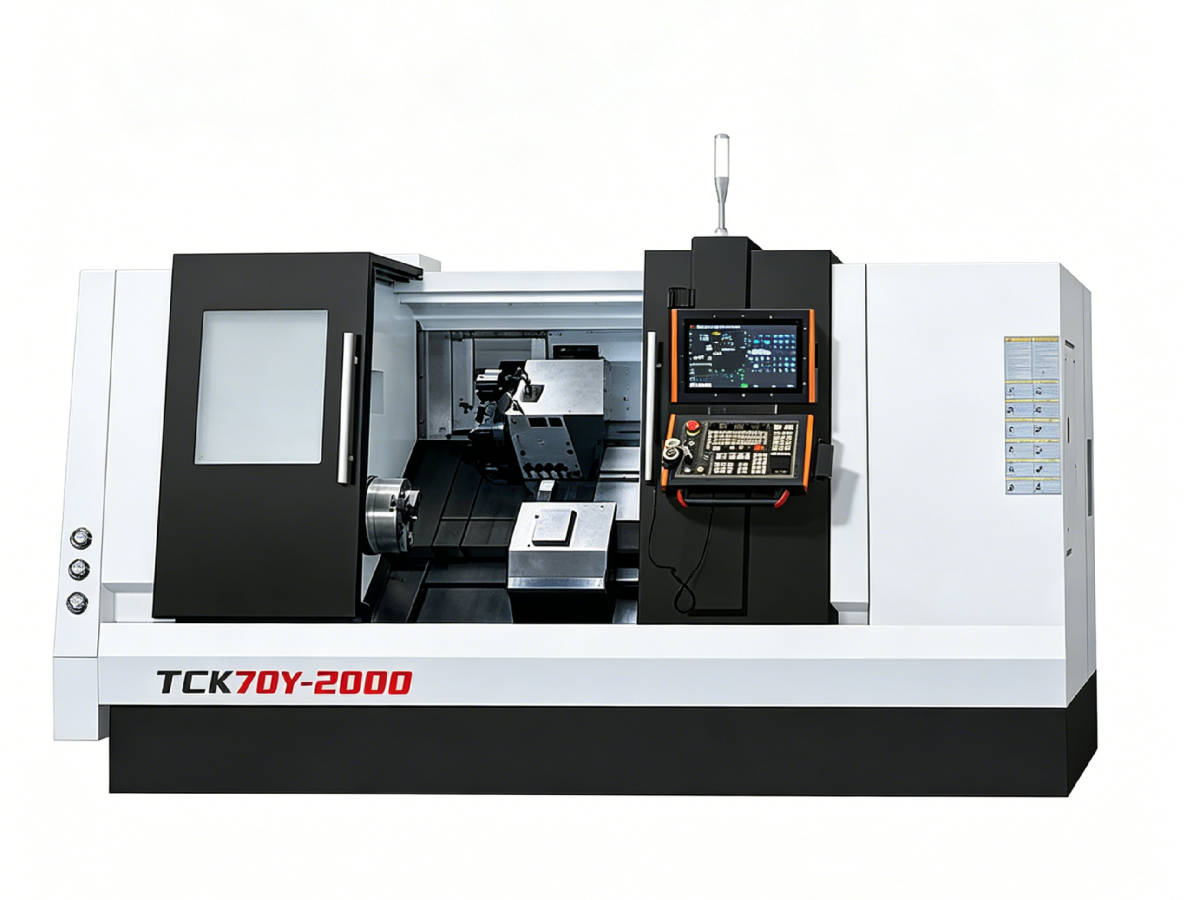

70Y CNC Mill-Turn Machines

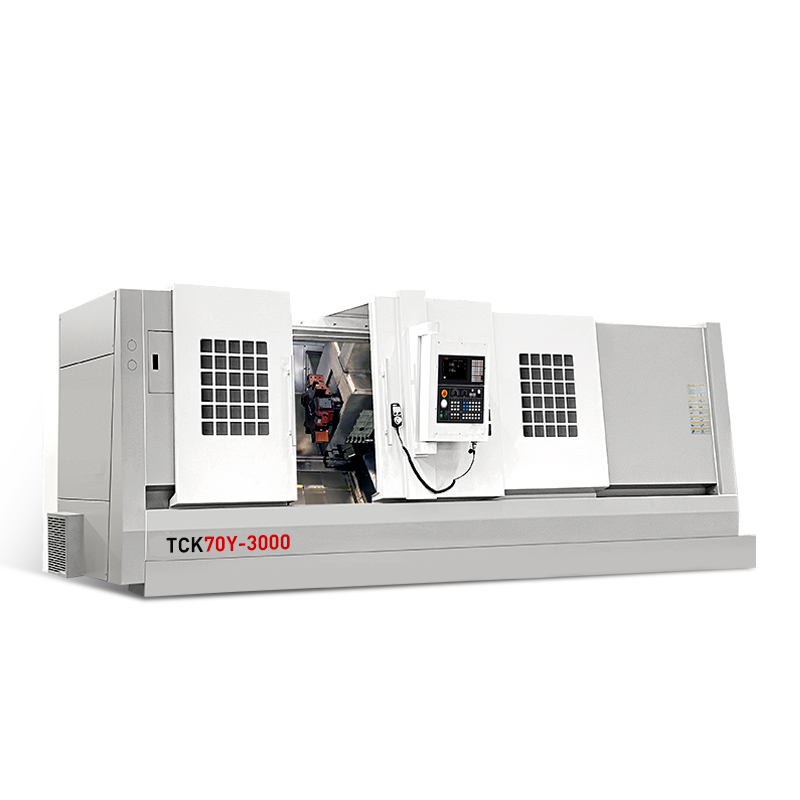

- * Max. cutting length 1000~3000mm
- * Customized Mohs 5# spindle structure tailstock ,resulting in higher machining accuracy

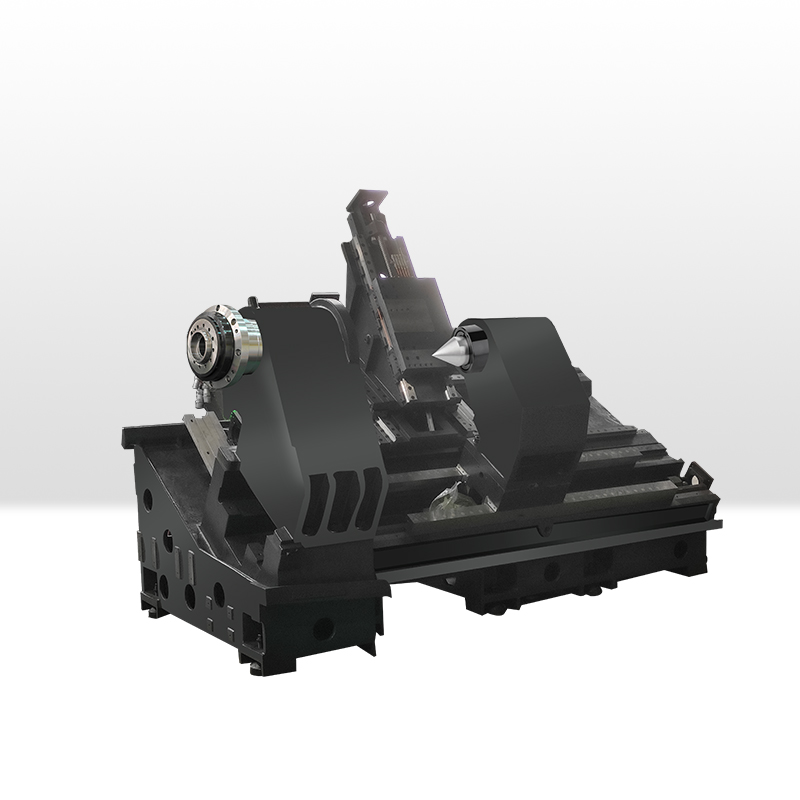

- * The spindle structure has better rigidity at the top and a longer service life.

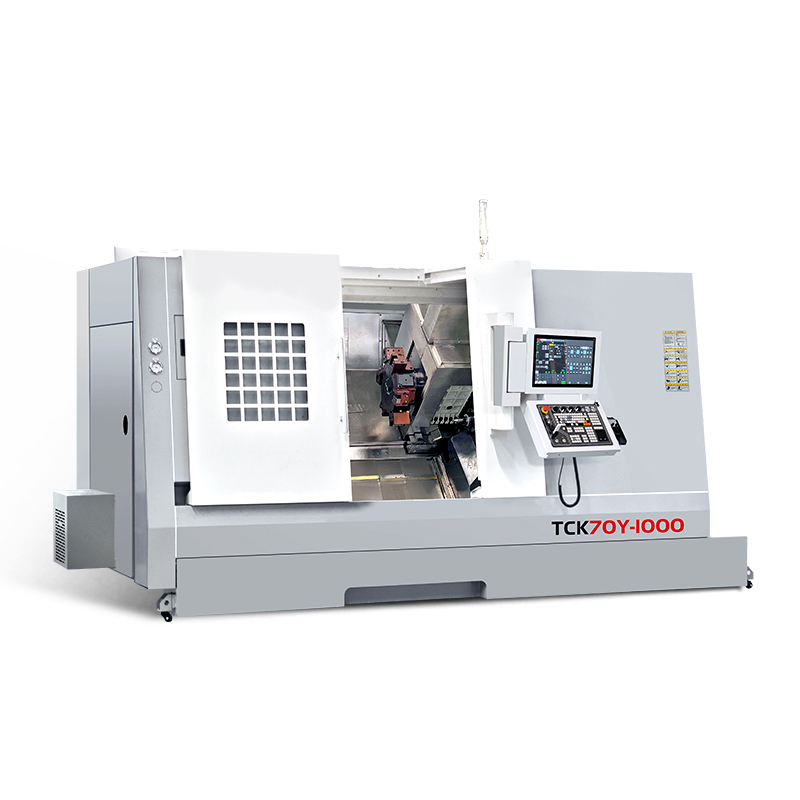

| Speicifications | TCK70Y-1000 |
|---|---|
| Max. turning diameter on bed(mm) | 720 |
| Max. cutting length(mm) | 1000 |
| Max. cutting diameter(mm) | 480 |
| Spindle nose type | A2-8 |
| Main shaft hole diameter(mm) | 85 |
| Spindle speed range（r/min） | 3000 |
| Spindle motor power（KW） | 37 |
| X/Y/Z-axis fast movement speed(mm) | 12/12/16 |
| X-axis travel(mm) | 300 |
| Z-axis travel(mm) | 1020 |
| Y-axis travel(mm) | ±75 |

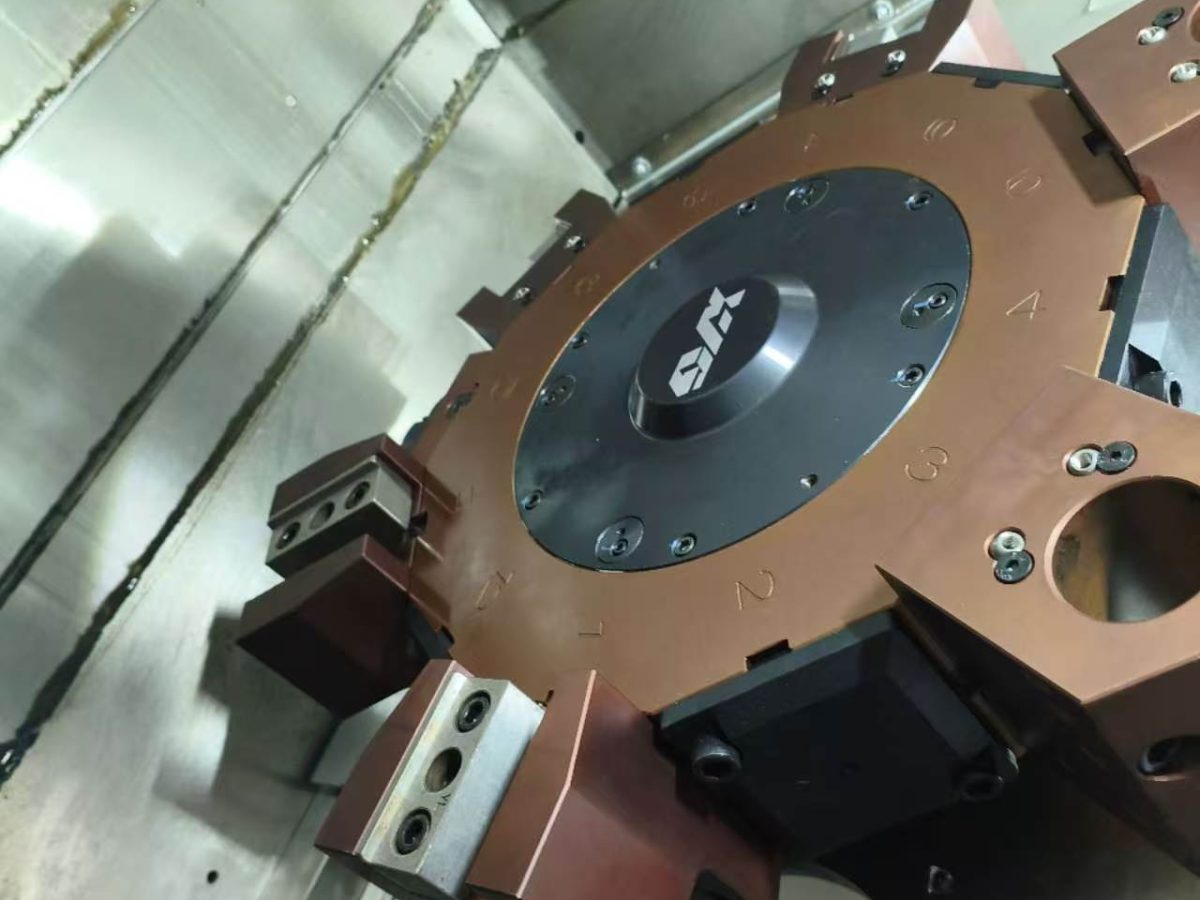

| Standard knife holder form | 12 station power knife tower |
| Machine size (mm) | 3950L*2160W*2485H |
| Machine weight (KG) | 8000 |
