Vertical Machining Centers

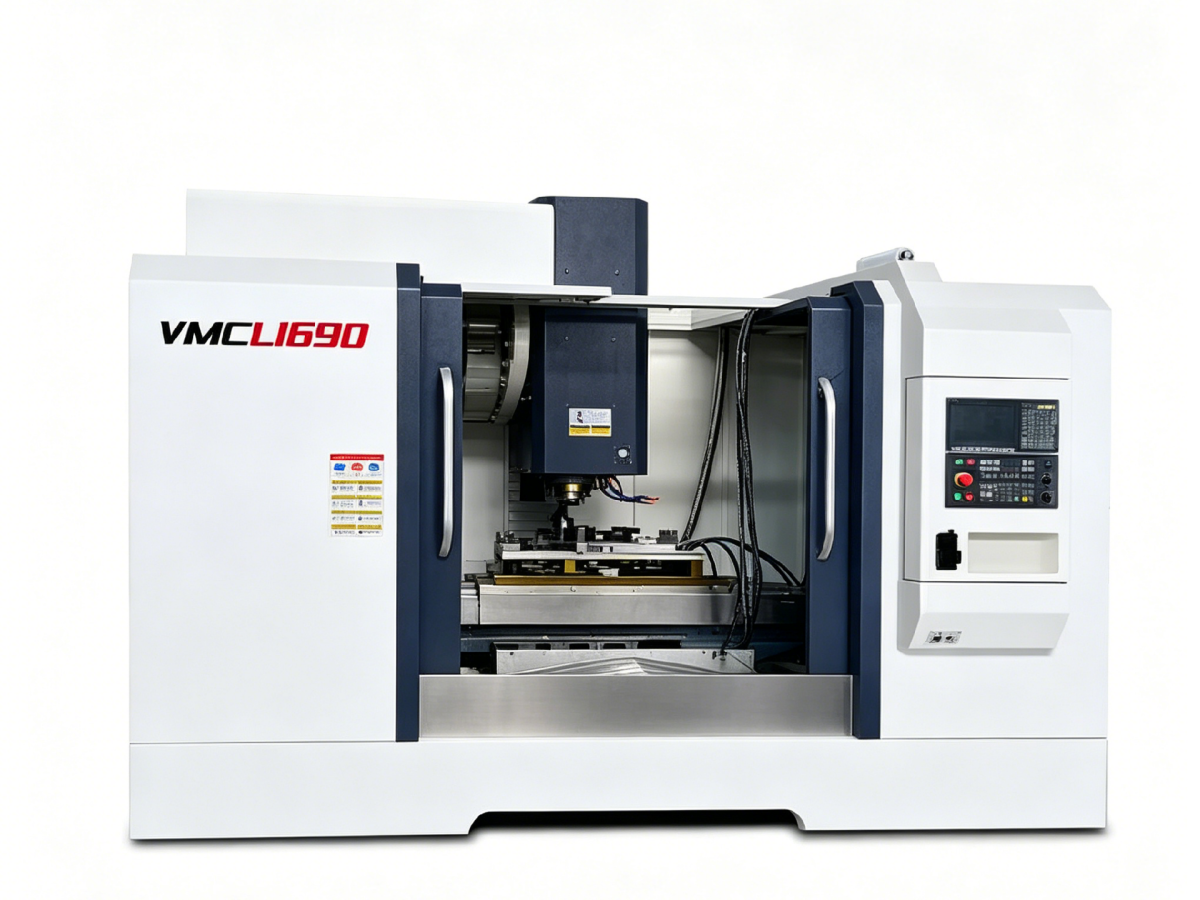

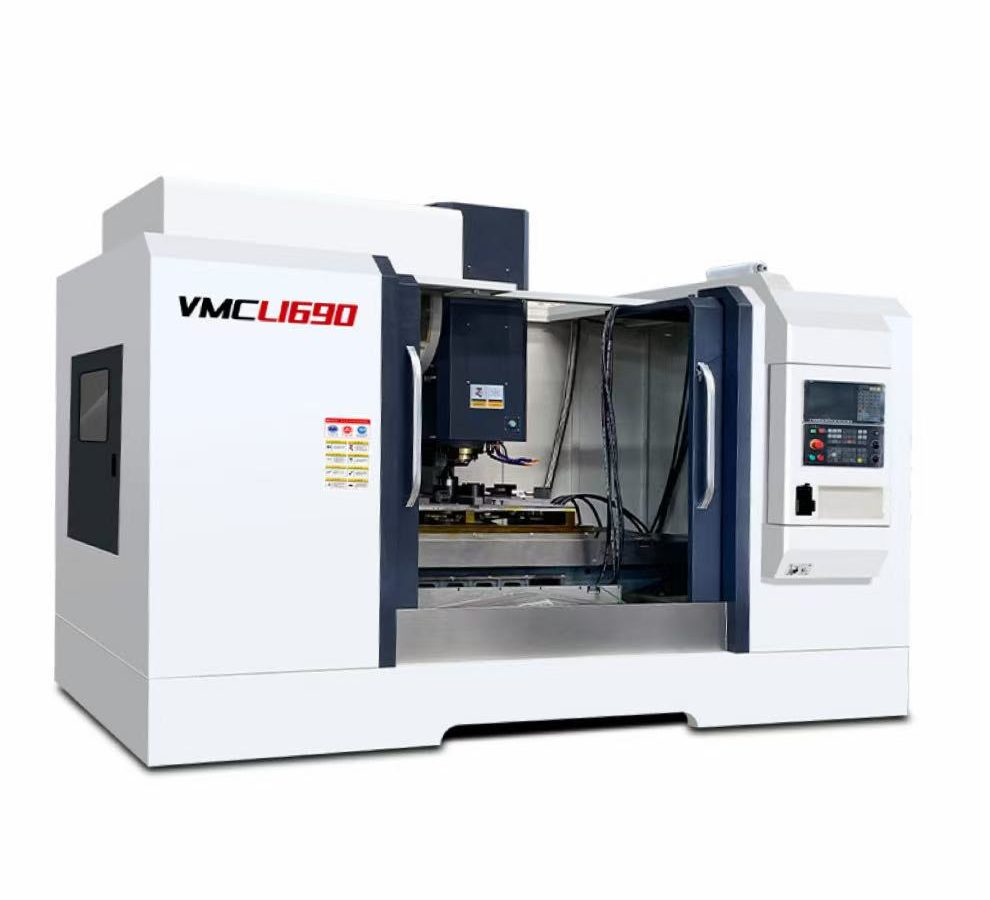

L1690 Vertical Machining Centers

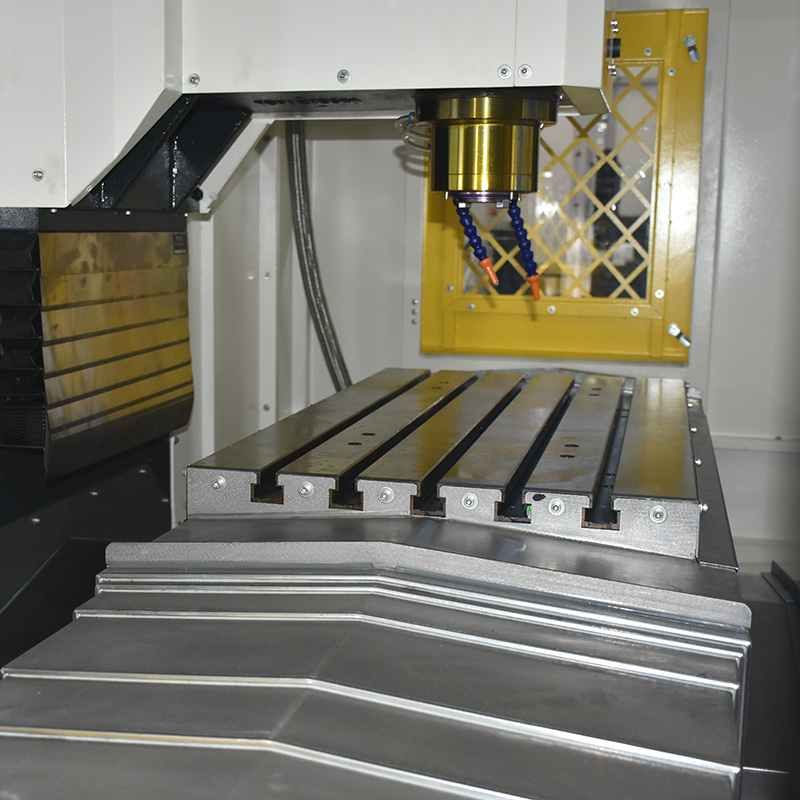

- *Table size 1600×800 mm, max. worktable load 1500 kg

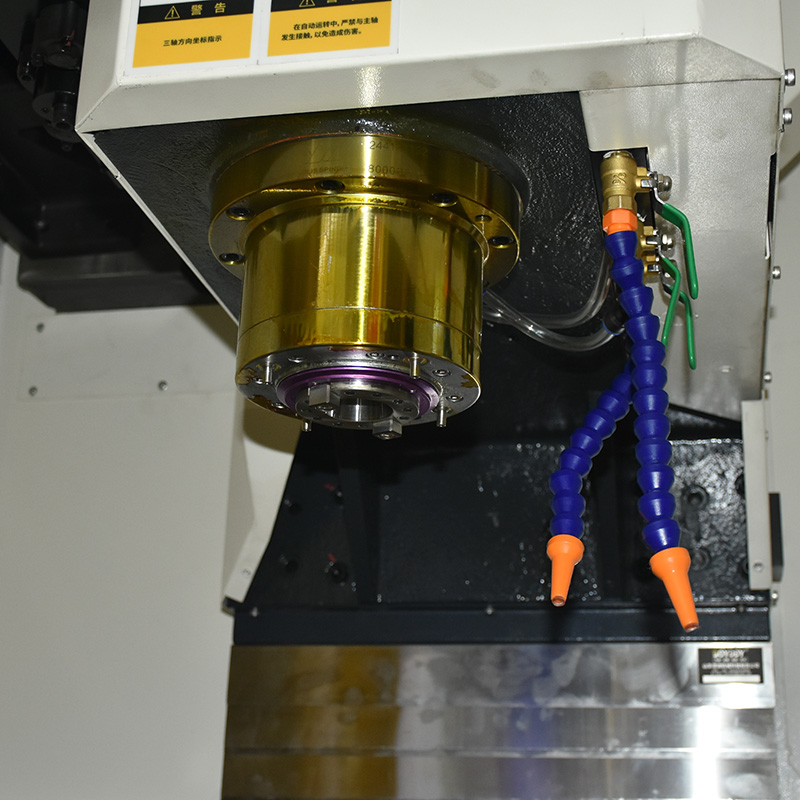

- *Spindle taper hole BT50-190, spindle speed range 6000 r/min
- *X/Y/Z axis travel: 1600/900/700 mm, X/Y rapid shift 20 m/min, Z rapid shift 16 m/min
| Speicifications | VMCL1690 |
|---|---|
| Table size （mm） | 1600×800 |
| Max. worktable load（kg） | 1500 |
| X-axis travel(mm) | 1600 |
| Y-axis travel(mm) | 900 |
| Z-axis travel(mm) | 700 |
| X-axis Fast shift speed(m/min) | 20 |
| Y-axis Fast shift speed(m/min) | 20 |
| Z-axis Fast shift speed(m/min) | 16 |
| Spindle taper hole | BT50-190 |
| Spindlerange (r/min) | 6000 |
| Positioning accuracy (X/Y/Z) | - |
| Repeatability (X/Y/Z) | - |
