Vertical Machining Centers

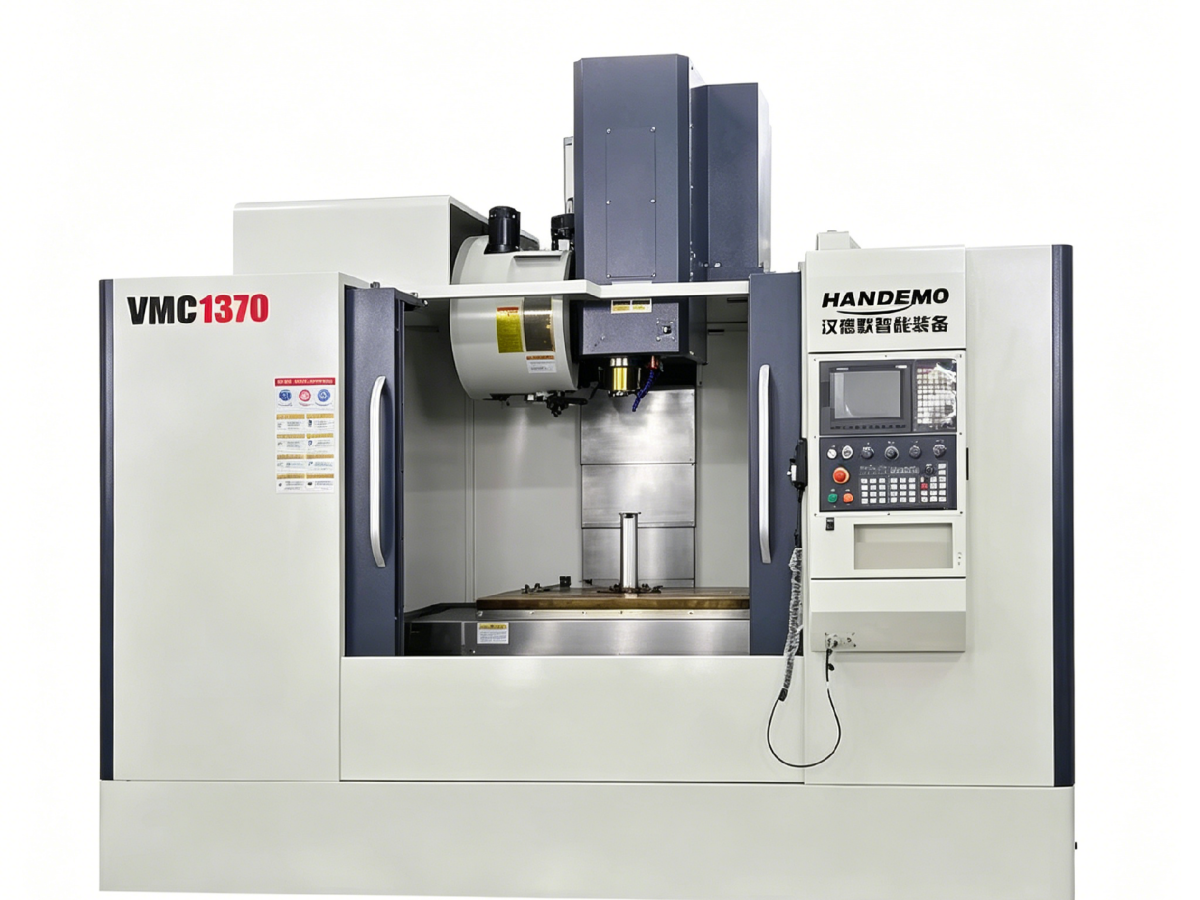

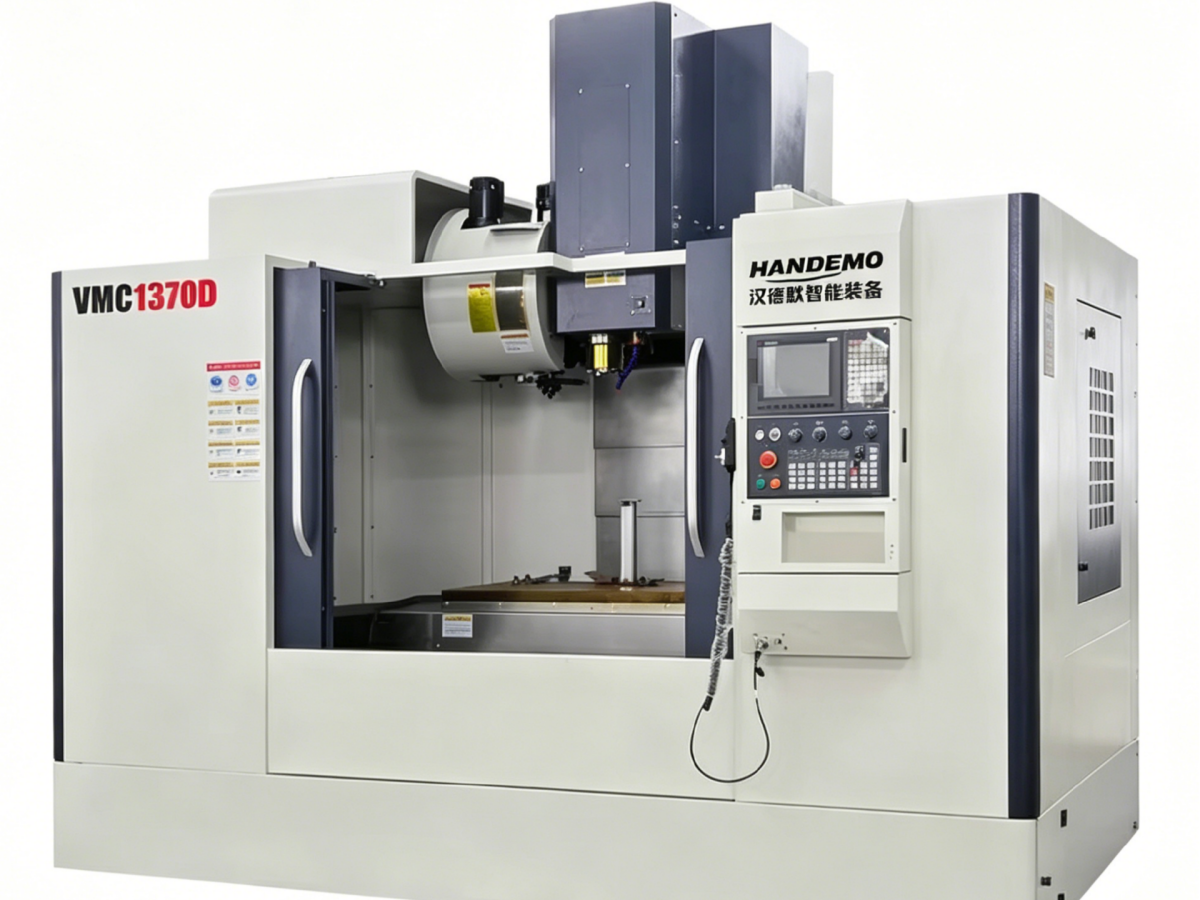

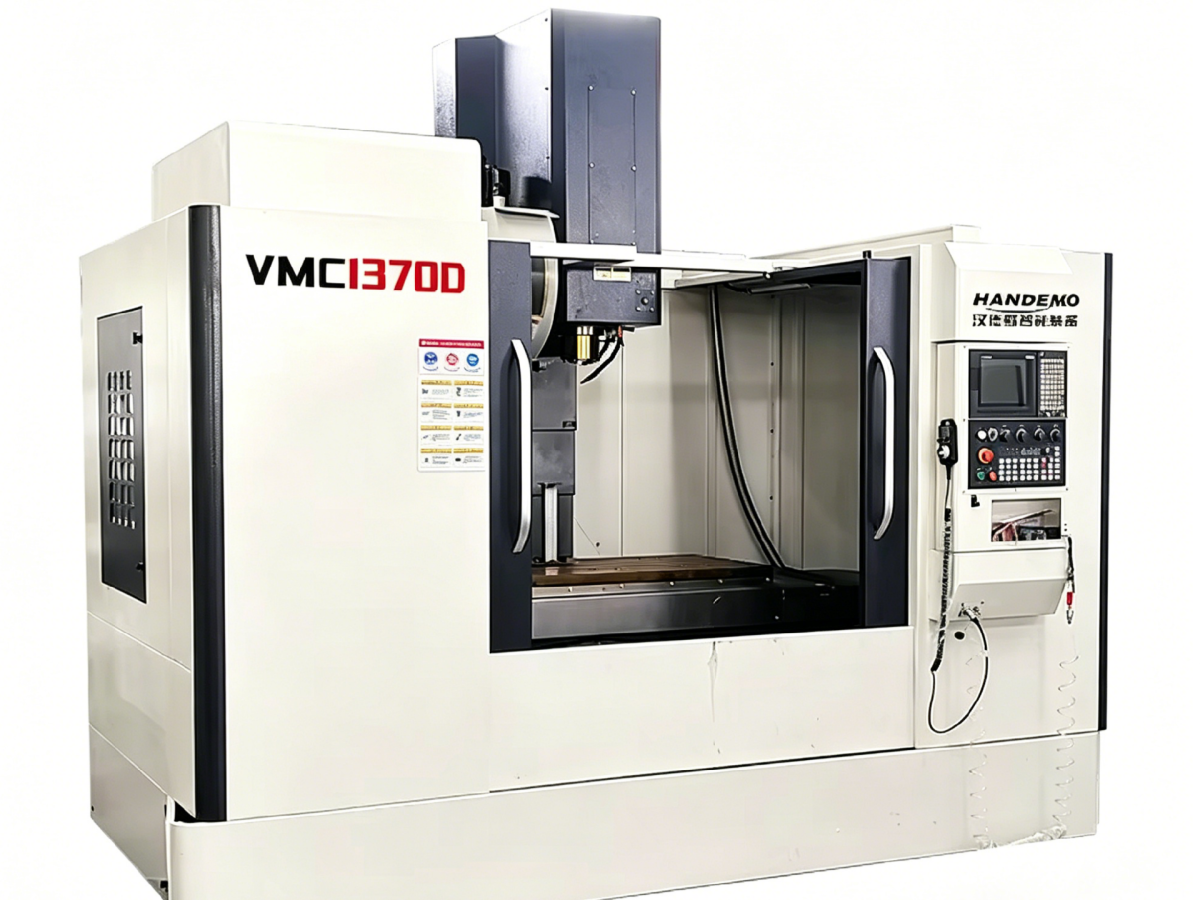

1370D Vertical Machining Centers
- *Table size 1400×700 mm, max. worktable load 800 kg, T-slot 5-18-130 mm
- *Spindle taper hole BT40-150, spindle speed 8000 rpm
- *X/Y/Z axis travel: 1300/700/750 mm, X/Y rapid shift 24 m/min, Z rapid shift 18 m/min
- *Machine size 3550×2730×2620 mm, machine weight 9000 kg
| Speicifications | VMC1370D |
|---|---|
| Table size （mm） | 1400×700 |
| Max. worktable load（kg） | 800 |
| T-slot (number*width*distance) | 5-18-130 |
| X-axis travel(mm) | 1300 |
| Y-axis travel(mm) | 700 |
| Z-axis travel(mm) | 750 |
| X-axis Fast shift speed(m/min) | 24 |
| Y-axis Fast shift speed(m/min) | 24 |
| Z-axis Fast shift speed(m/min) | 18 |
| Spindle taper hole | BT40-150 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 3550L*2730W*2620H |
| Machine weight (KG) | 9000 |
Interested in this machine?
Get a factory-direct quote and technical specifications for 1370D Vertical Machining Centers.
Request A Quote WhatsApp Us
