Vertical Machining Centers

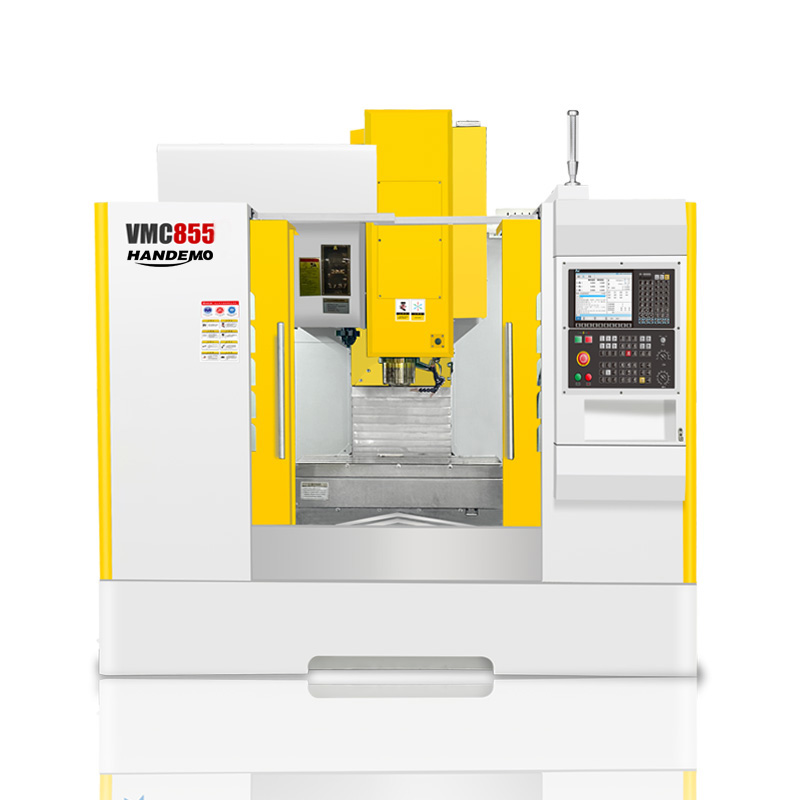

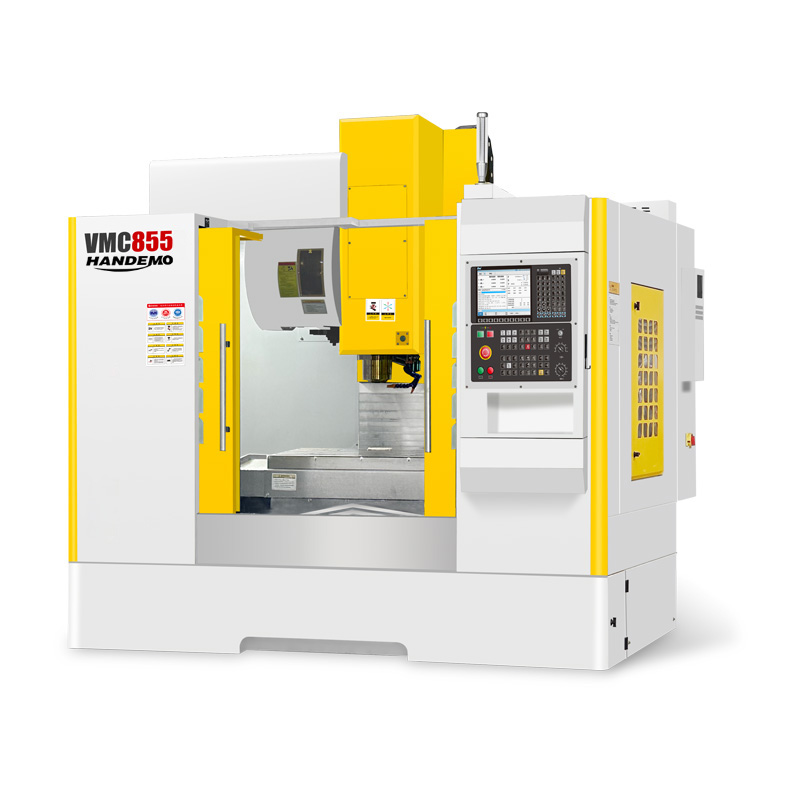

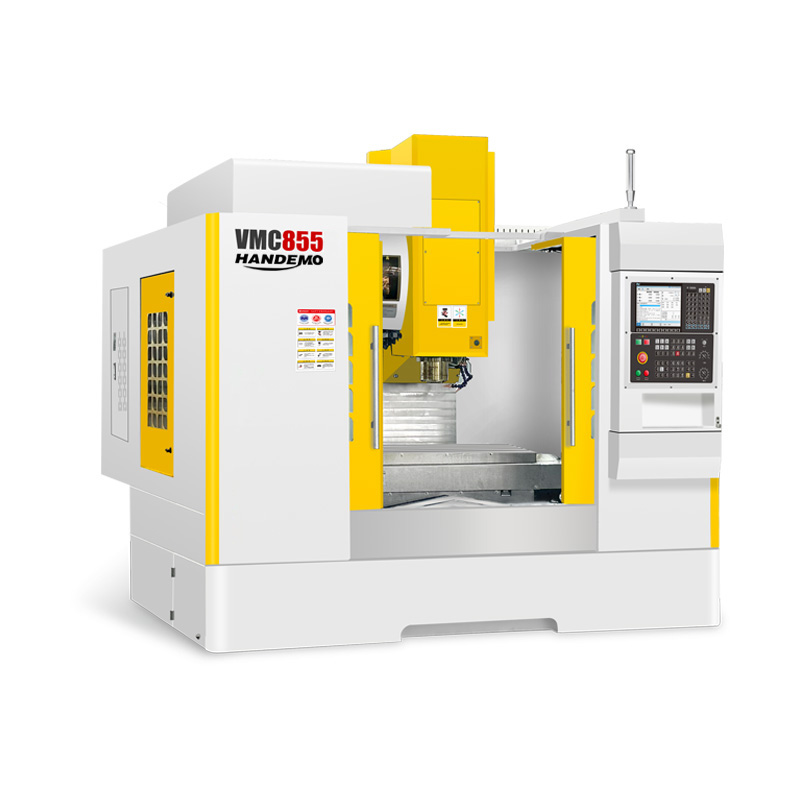

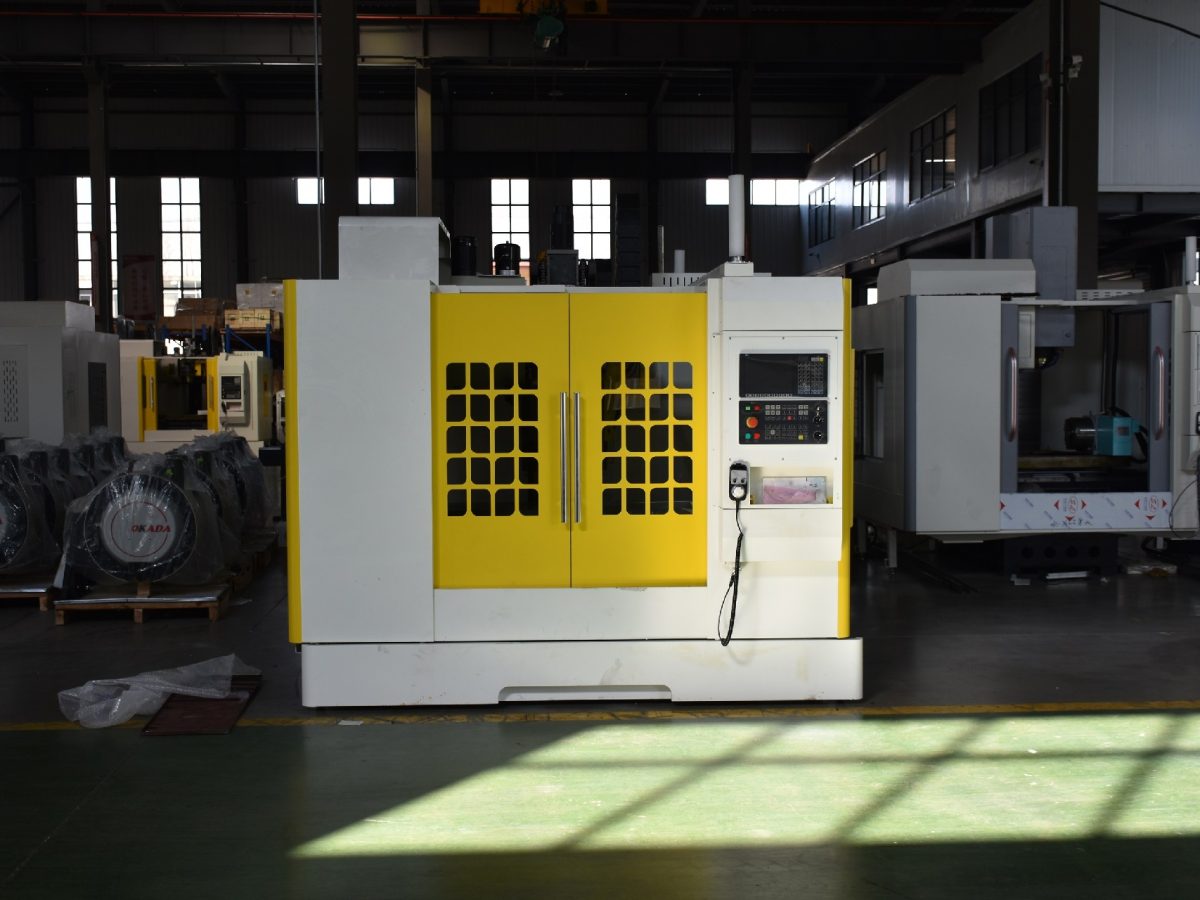

855 Vertical Machining Centers

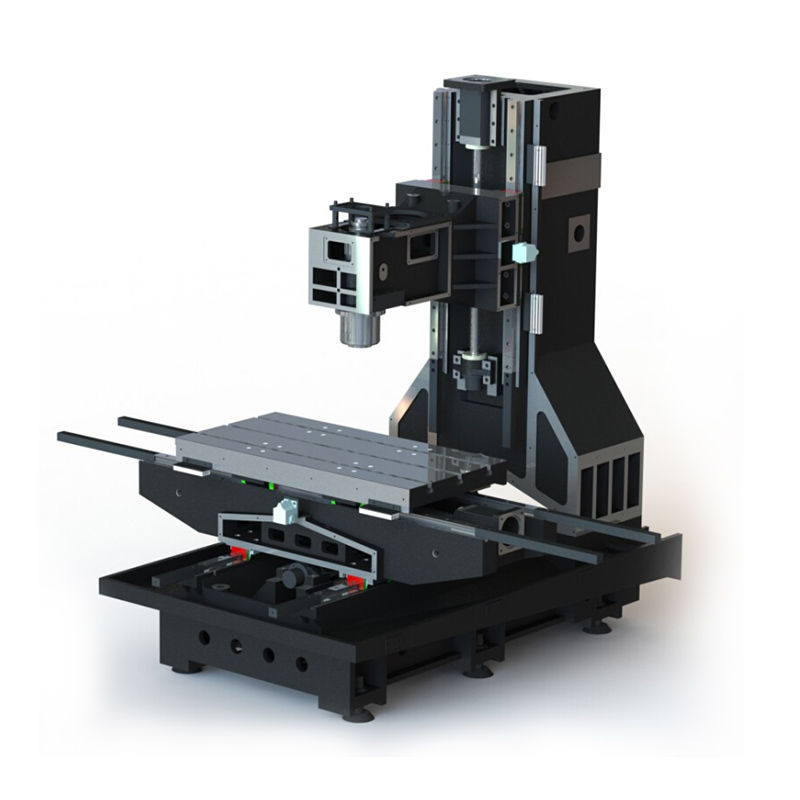

- The VMC855 is a heavy-duty vertical machining center for medium-to-heavy workpieces. Its rigid 5,300-kg structure and precision linear guides keep cutting stable and accurate, with X/Y/Z travels of 800/550/550 mm.

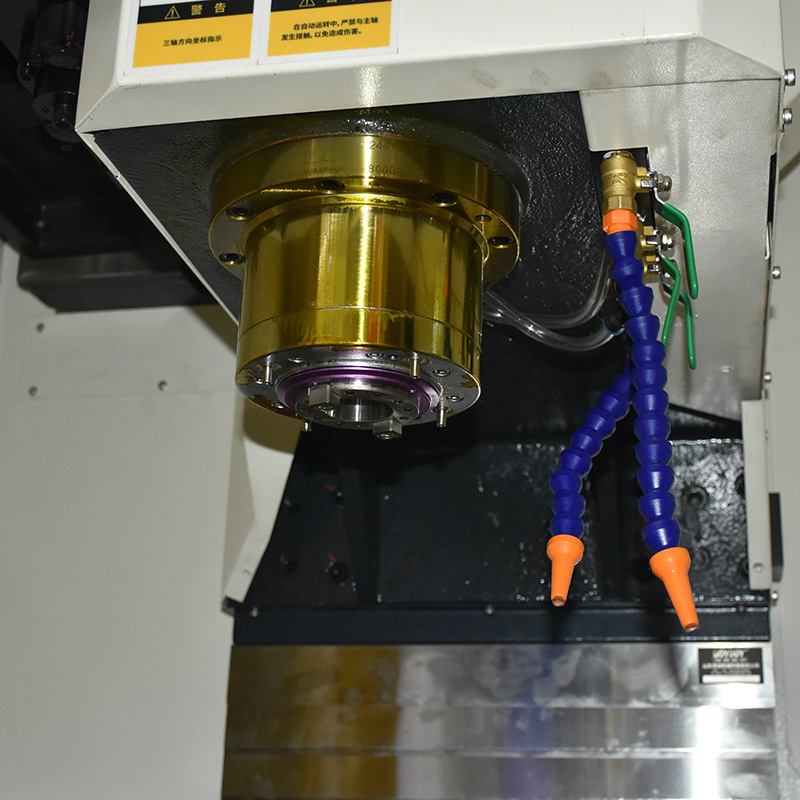

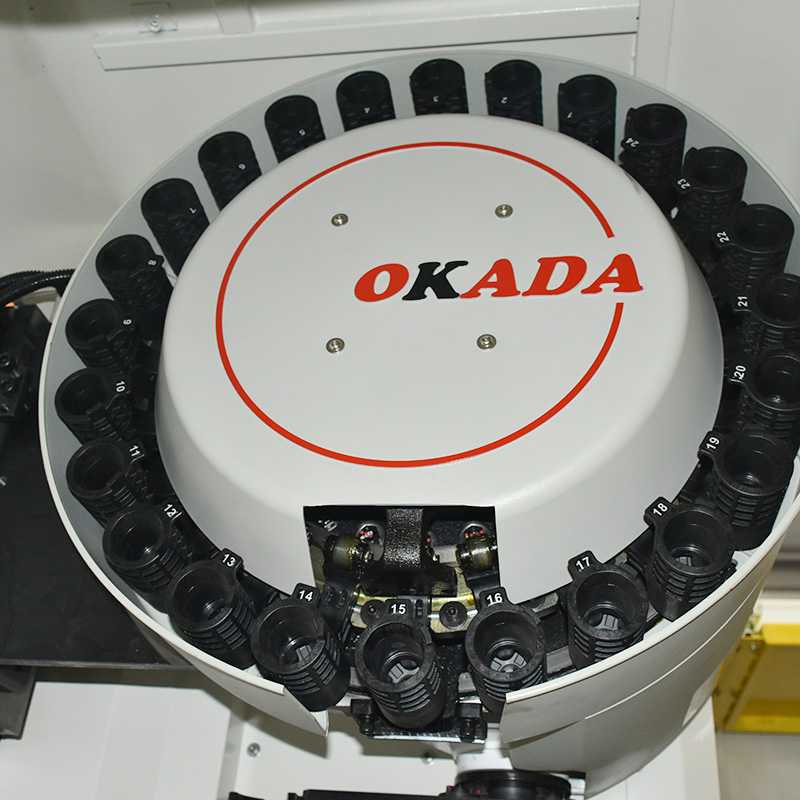

- An 8,000-rpm BT40 belt spindle and a 24-tool disc ATC deliver efficient, reliable machining. It is ideal for automotive parts, mold making, general machinery, and aerospace components.
- Optional extras—through-spindle coolant, a chip conveyor, and smart networking—let you adapt it to batch production or single parts.
| Speicifications | VMC855 |
|---|---|

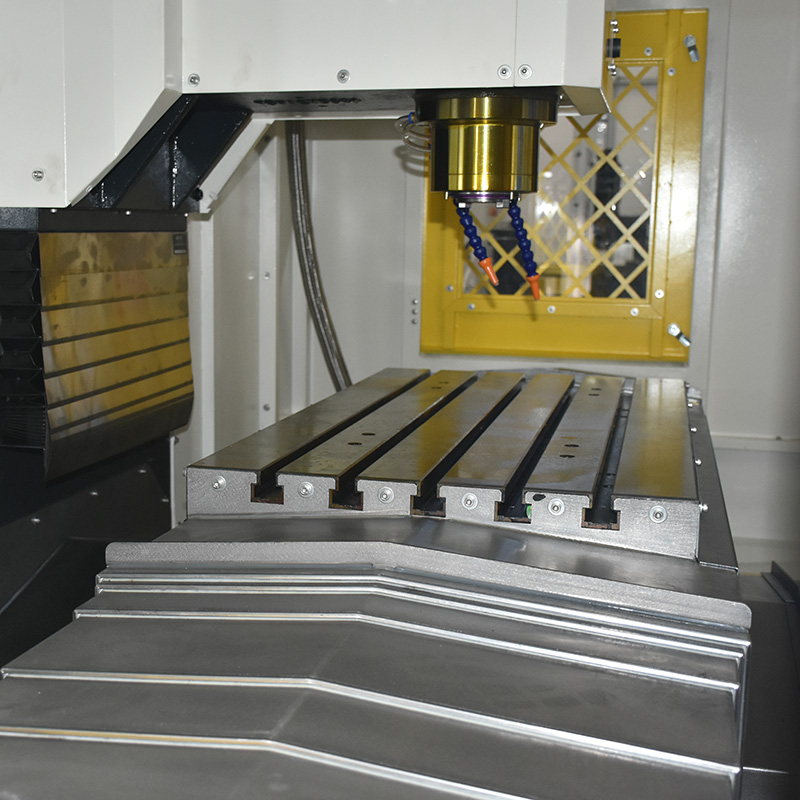

| Table size （mm） | 1000×550 |
| Max. worktable load（kg） | 600 |
| X-axis travel(mm) | 800 |
| Y-axis travel(mm) | 55 |
| Z-axis travel(mm) | 550 |
| X-axis Fast shift speed(m/min) | 32 |
| Y-axis Fast shift speed(m/min) | 32 |
| Z-axis Fast shift speed(m/min) | 24 |
| Spindle taper hole | BT40Φ150 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 2600L*2380W*2400H |
| Machine weight (KG) | 5300 |
| X-axis Positioning Accuracy(mm) | 0.020 |
| Y-axis Positioning Accuracy(mm) | 0.008 |
| Z-axis Positioning Accuracy(mm) | 0.017 |
