650 Vertical Machining Centers

Vertical Machining Centers

650 Vertical Machining Centers

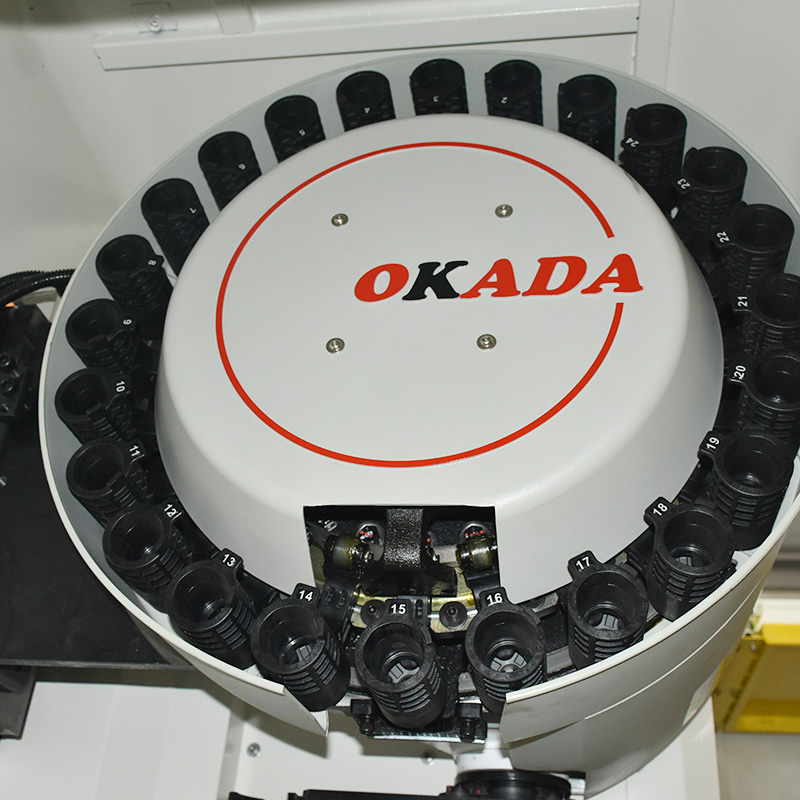

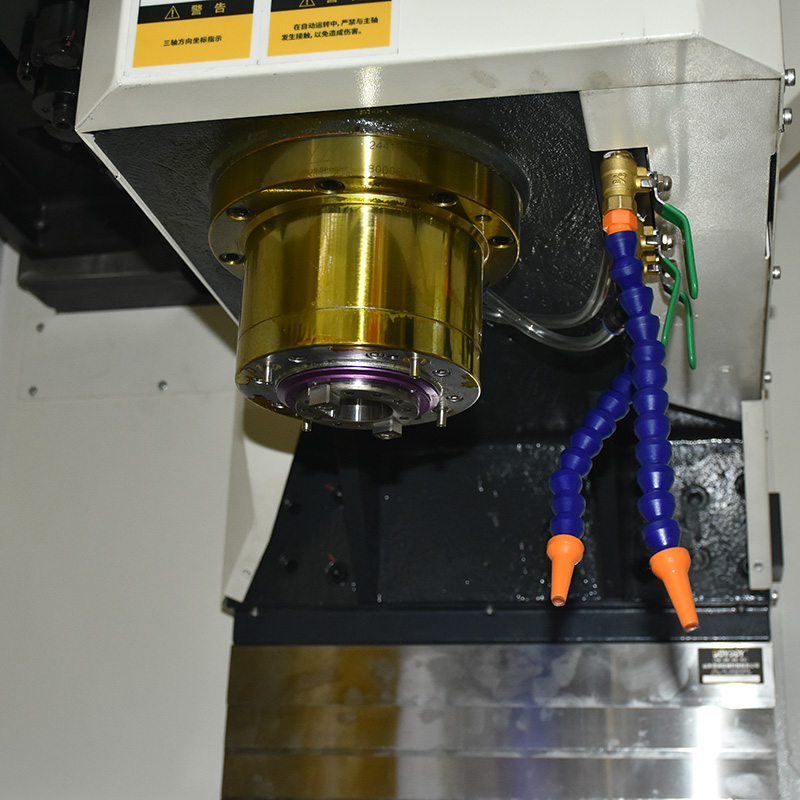

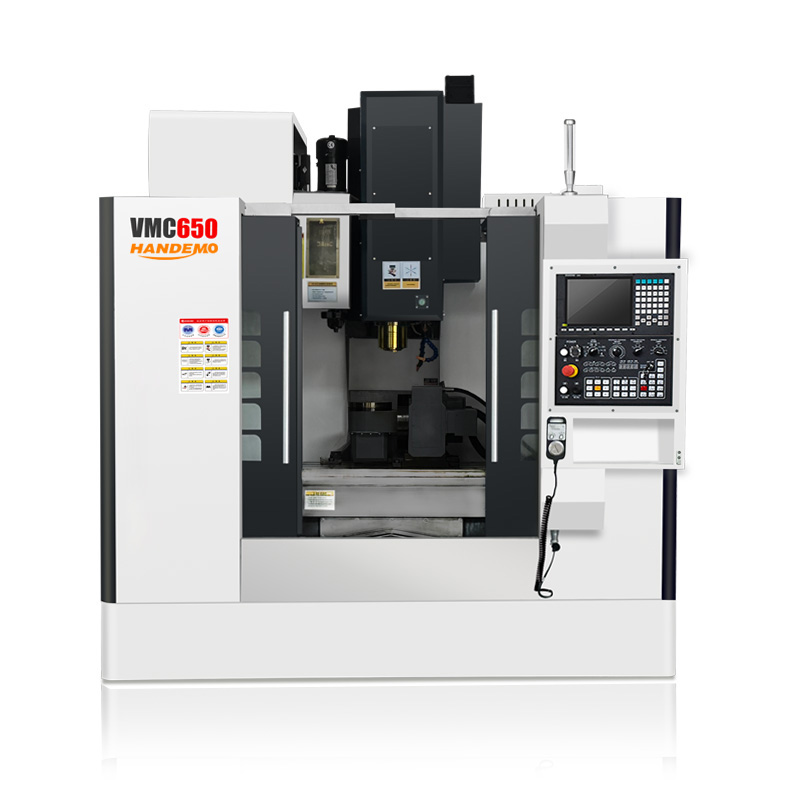

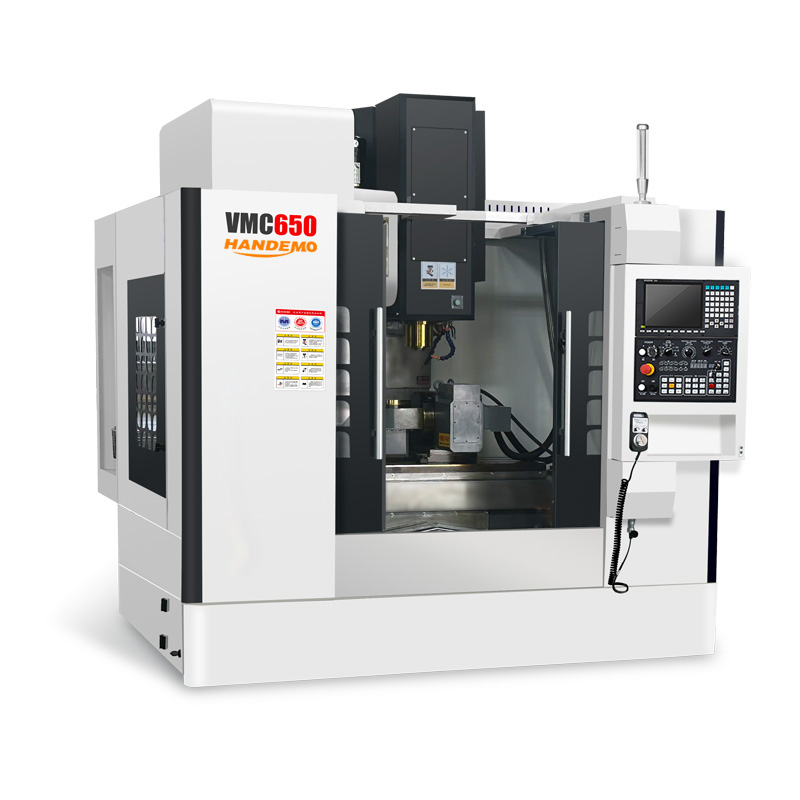

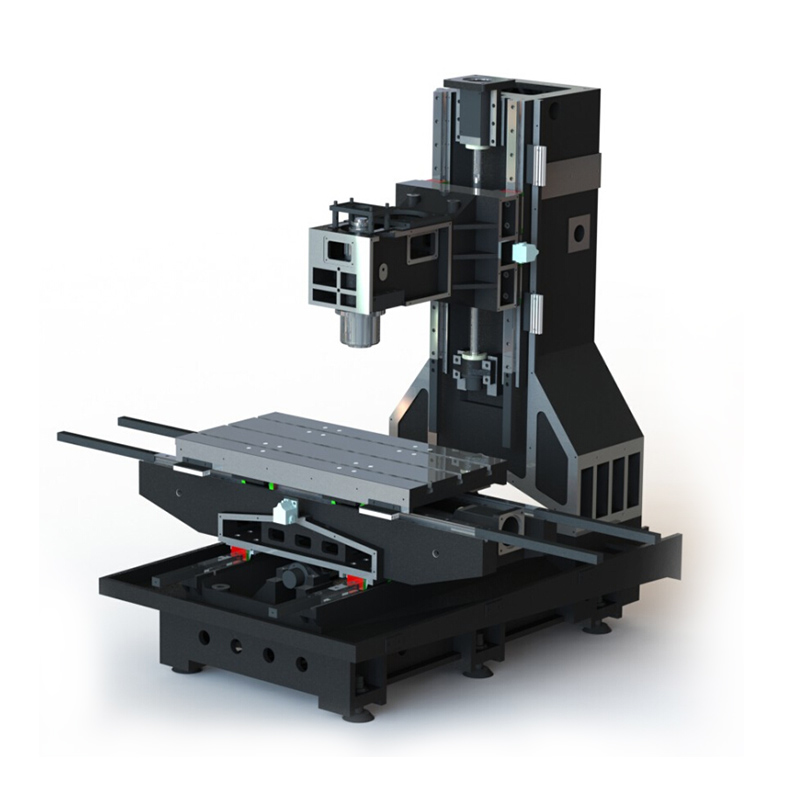

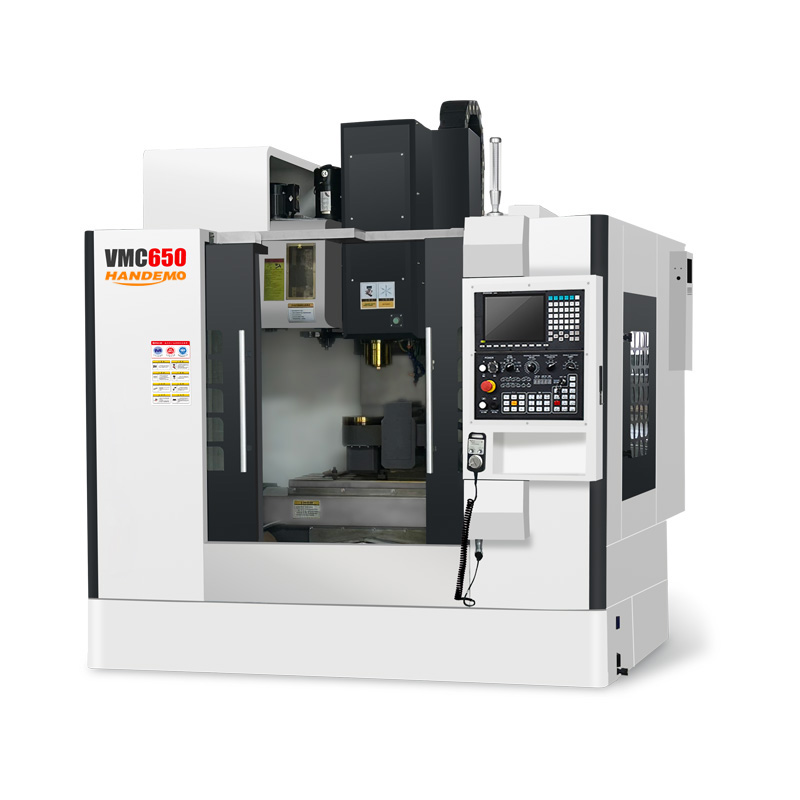

  • The VMC650 is a rugged 3‑axis linear‑guide machining center that combines high‑speed rapid traverse (32/32/24 m/min) with precision‑grade performance. Its BT40‑8000 rpm spindle, 16‑station round‑disc ATC, and durable Taiwanese/European key components ensure reliable milling, drilling, and tapping for automotive parts, mold making, general machinery, and 3C components. Optional upgrades – such as through‑spindle coolant, oil cooler, chip conveyors, and a 32‑tool magazine – allow flexible configuration to match both high‑efficiency roughing and tight‑tolerance finishing requirements.
SpeicificationsVMC650

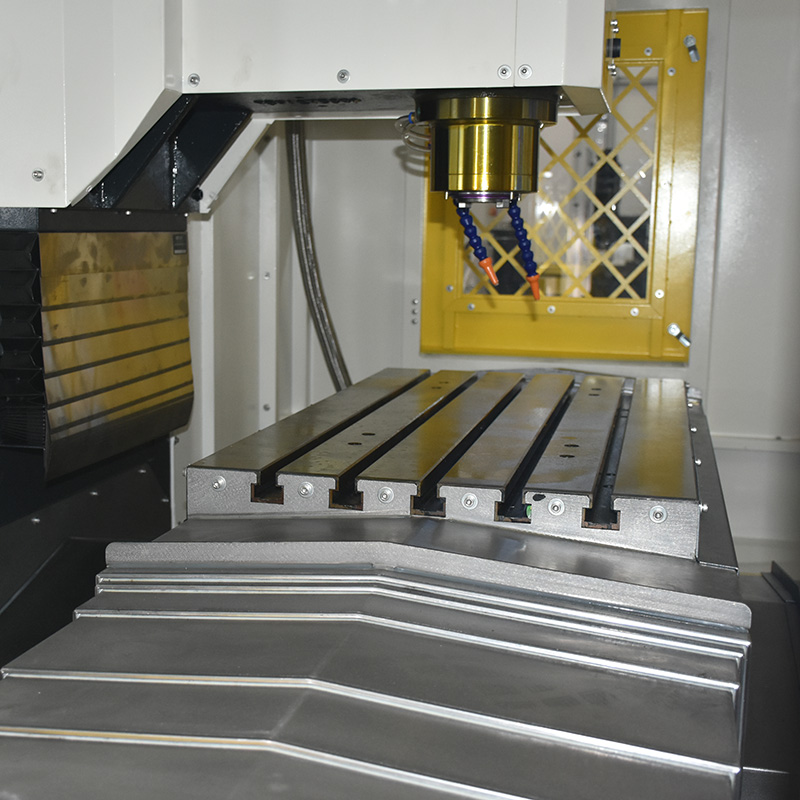

Table size (mm)1000×400
Max. worktable load(kg)400
X-axis travel(mm)650
Y-axis travel(mm)400
Z-axis travel(mm)550
X-axis Fast shift speed(m/min)32
Y-axis Fast shift speed(m/min)32
Z-axis Fast shift speed(m/min)24
Spindle taper holeBT40Φ120
Spindle speed (rpm)8000
Machine size (mm)2400L*2100W*2300H
Machine weight (KG)3800
