Vertical Machining Centers

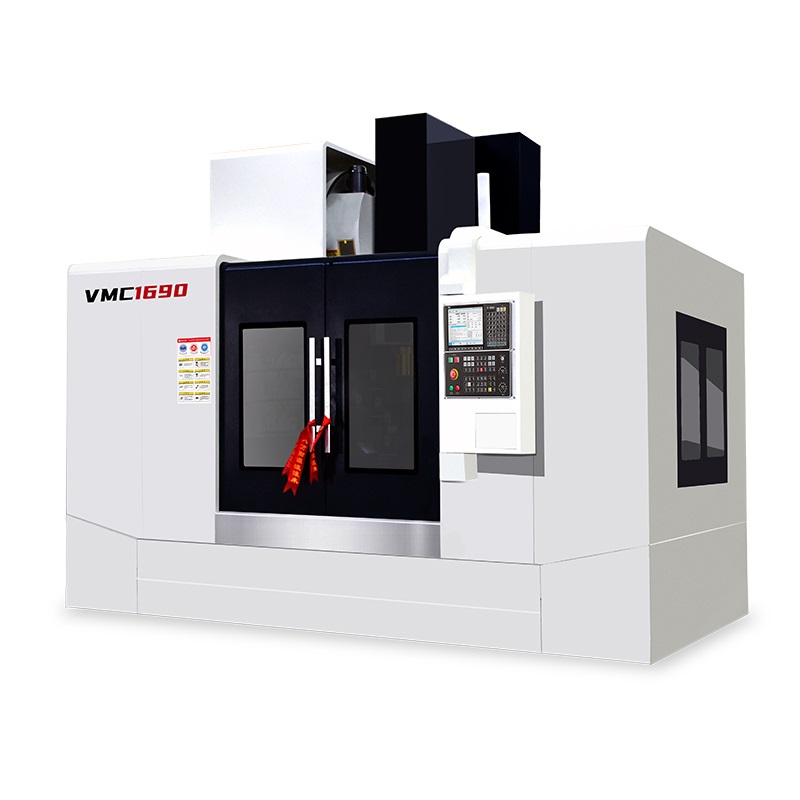

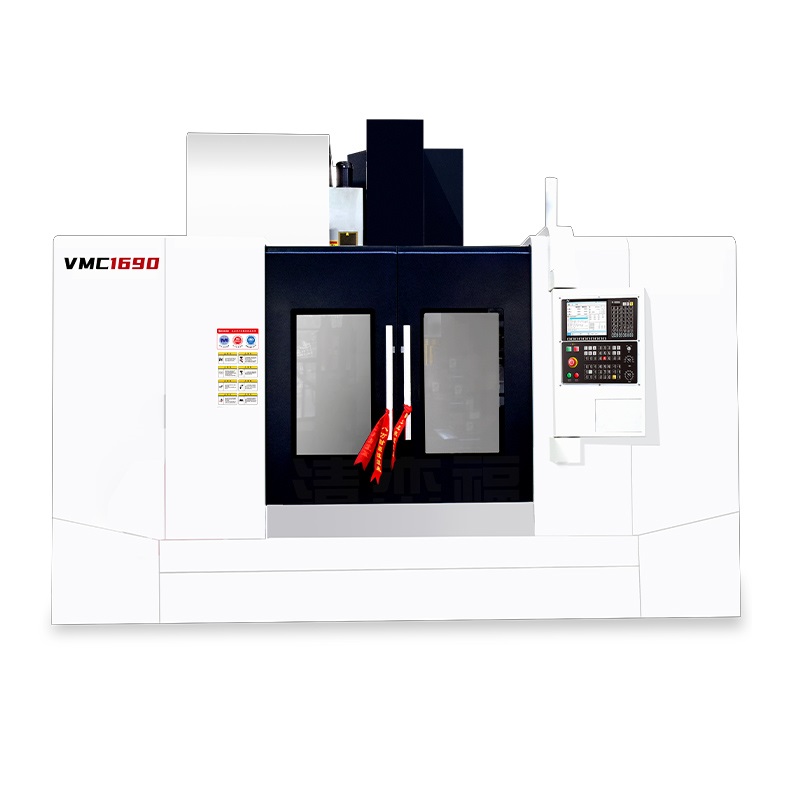

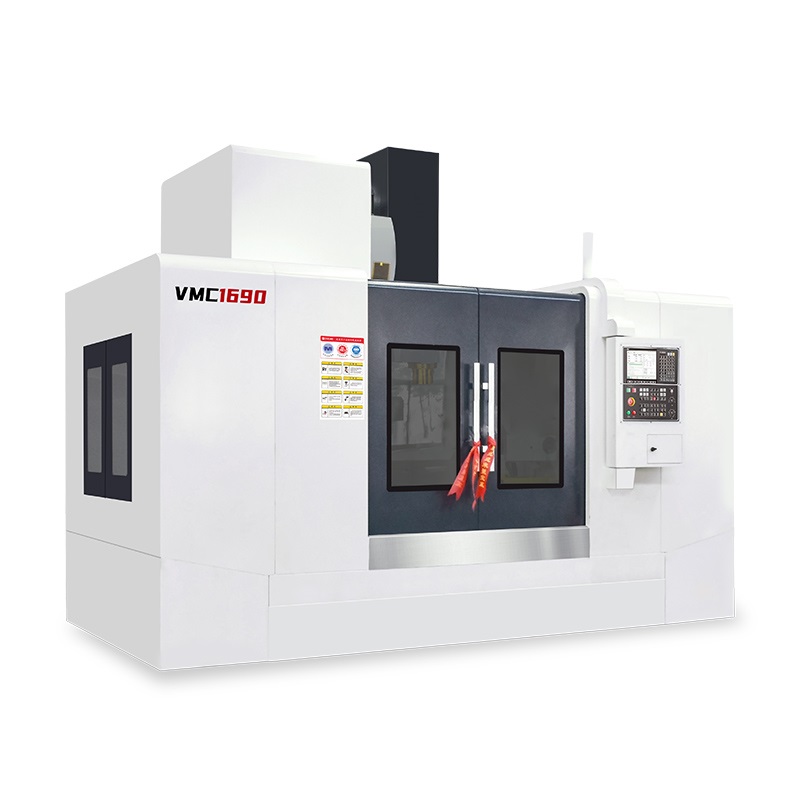

1690 Vertical Machining Centers

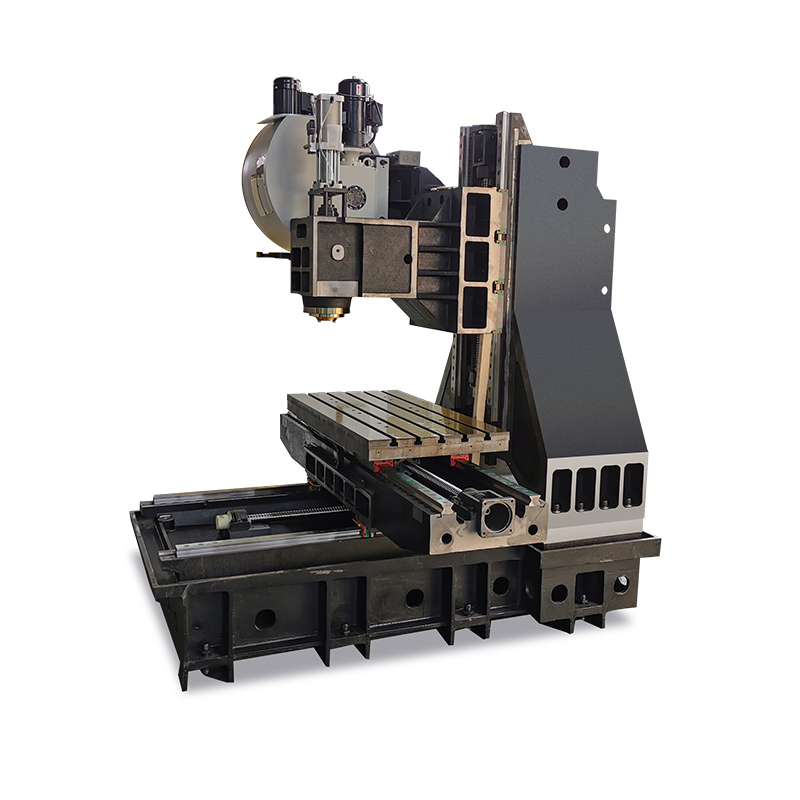

- * The bed structure of this machine tool is equipped with a 1.64m long span chassis and widened columns, making the structure more stable.

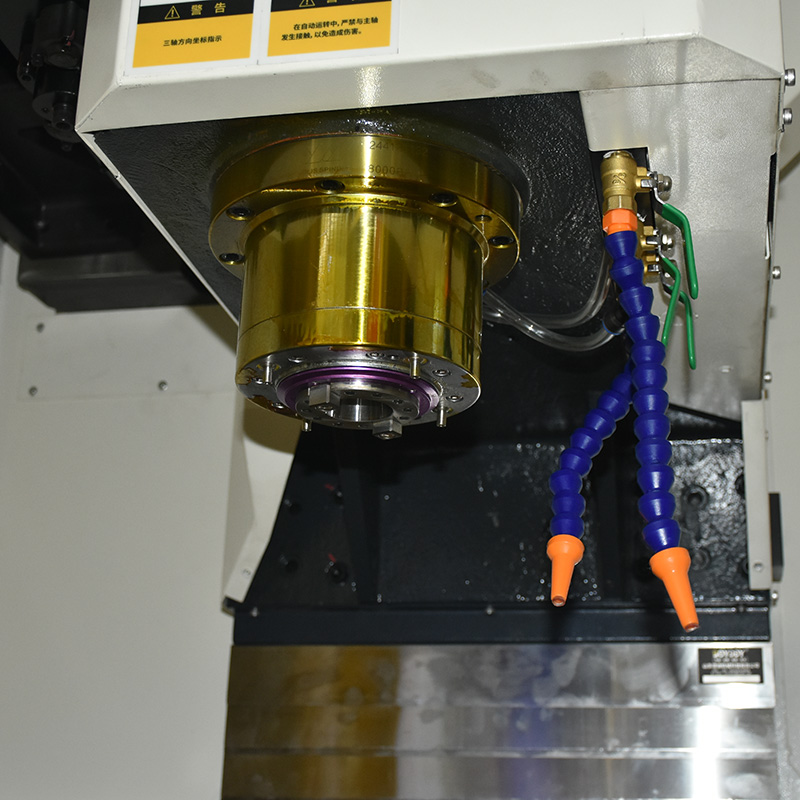

- * The main shaft adopts the BT50-190 outer diameter short nose type main shaft, equipped with 72 teeth and broadband wheels+15KW rated 1000 low-speed high torque motor, high load, heavy cutting, and a 50% increase in machining torque
| Speicifications | VMC1690 |
|---|---|

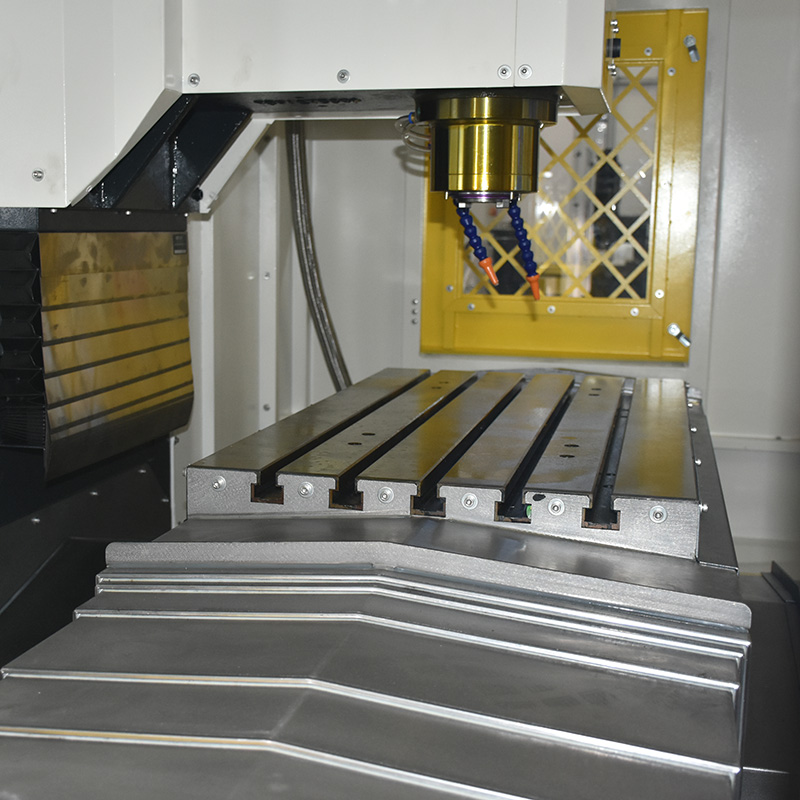

| Table size （mm） | 1600×800 |
| Max. worktable load（kg） | 1500 |
| X-axis travel(mm) | 1600 |
| Y-axis travel(mm) | 900 |
| Z-axis travel(mm) | 700 |
| X-axis Fast shift speed(m/min) | 20 |
| Y-axis Fast shift speed(m/min) | 20 |
| Z-axis Fast shift speed(m/min) | 14 |
| Spindle taper hole | BT50-190 |
| Spindle speed (rpm) | 6000 |
| Machine size (mm) | 4500L*3600W*2800H |
| Machine weight (KG) | 12000 |
