Vertical Machining Centers

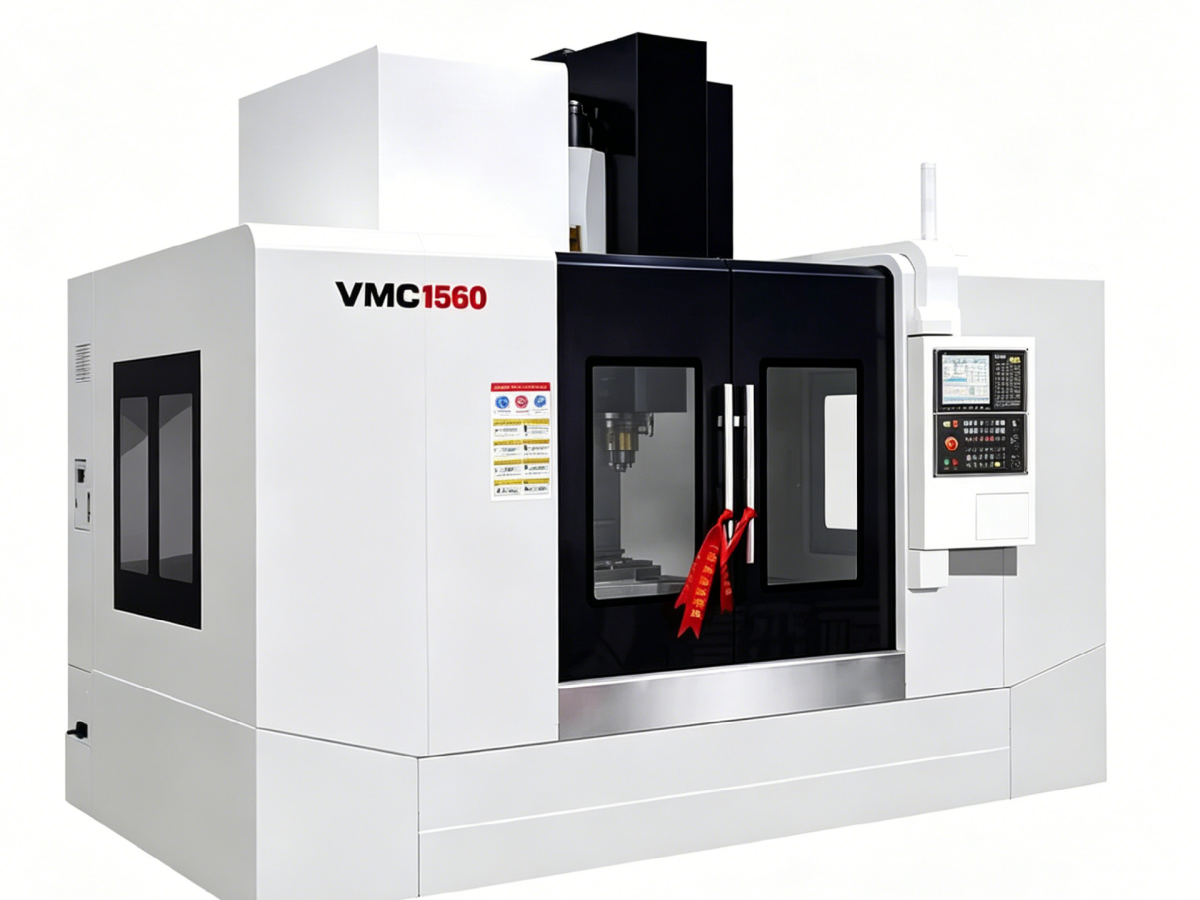

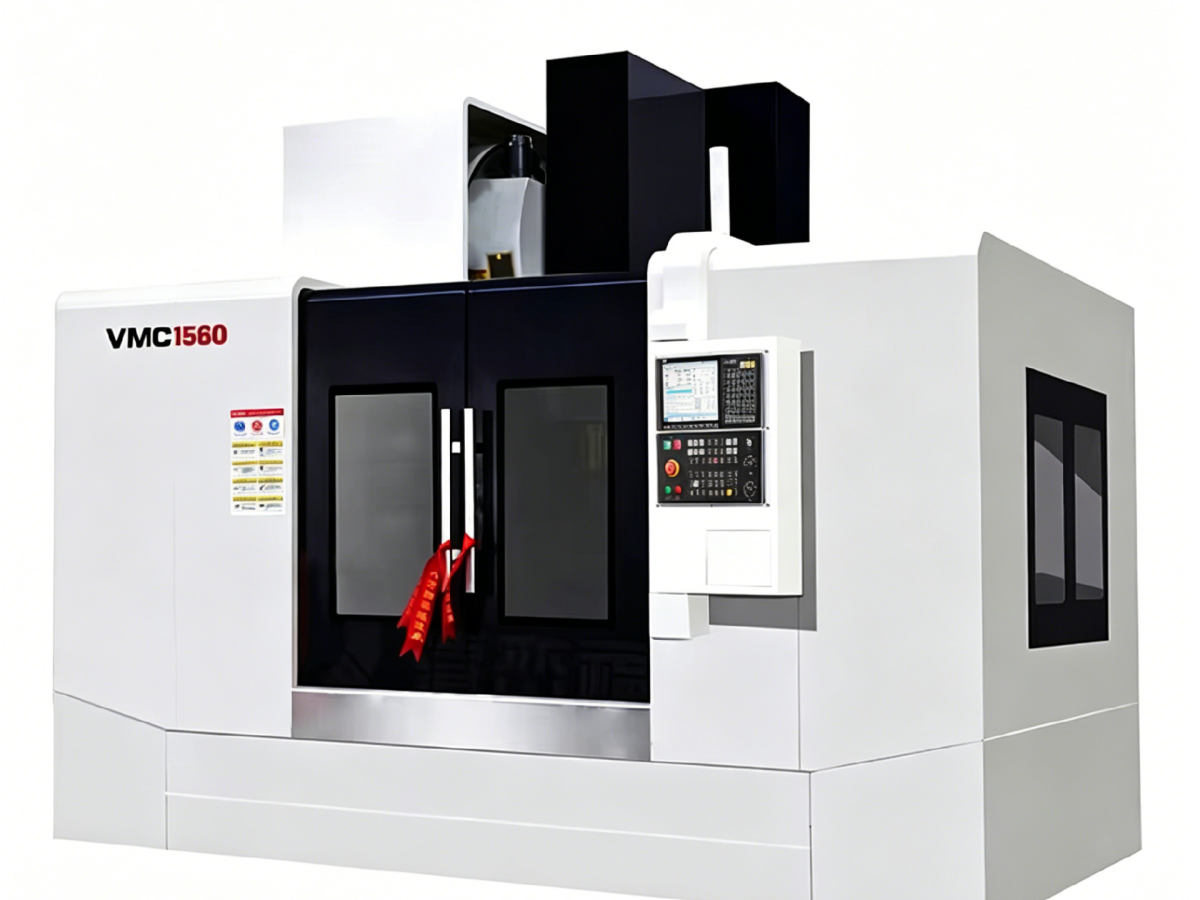

1560 Vertical Machining Centers

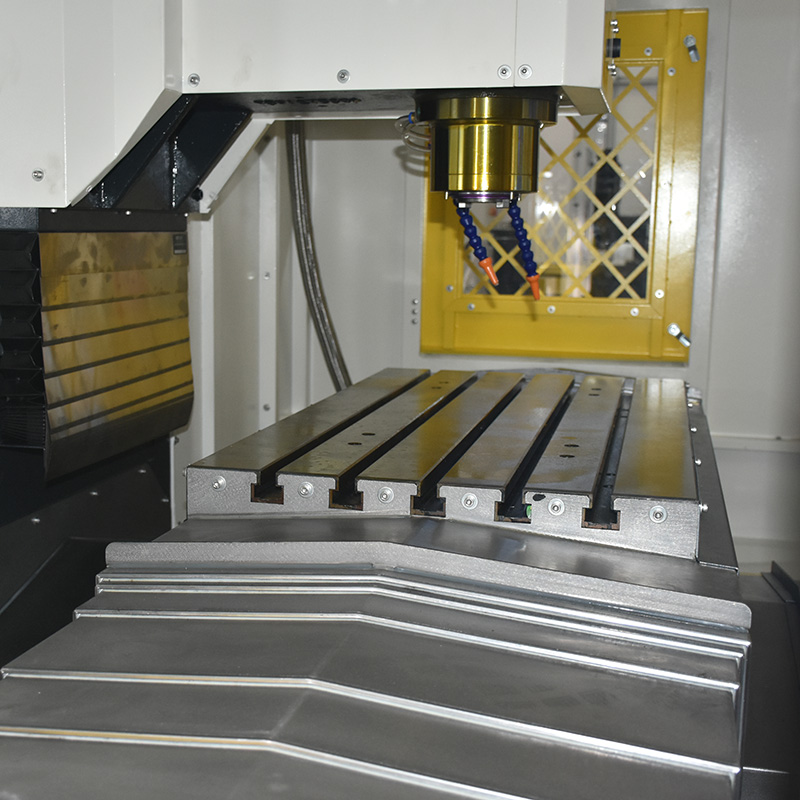

- *Table size 2200×600 mm, max. worktable load 1500 kg, T-slot 5-18-100 mm

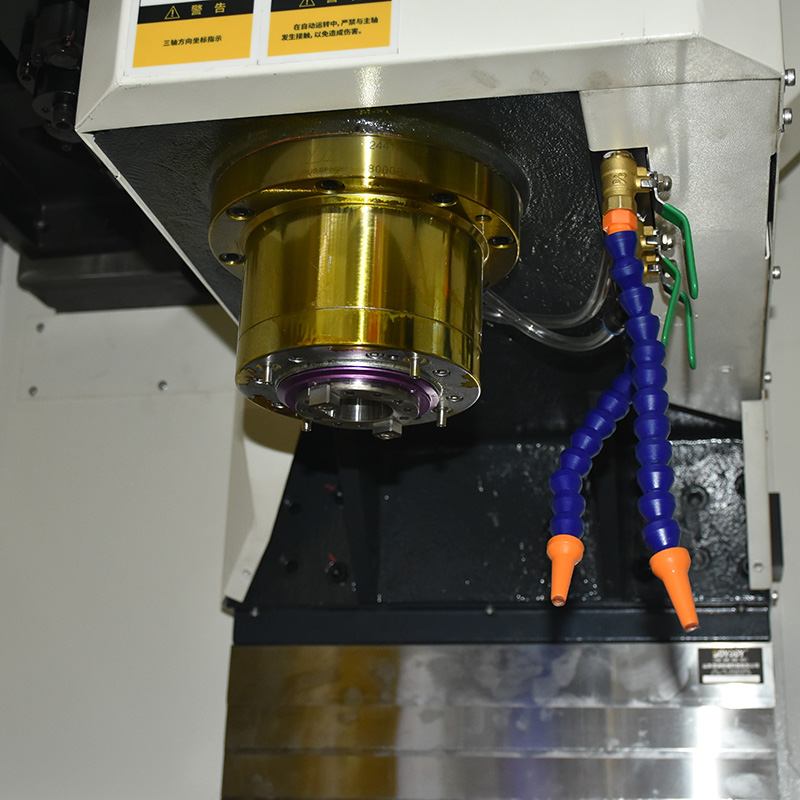

- *Spindle taper hole BT40-150
- *X/Y/Z axis travel: 1500/650/650 mm, X/Y rapid shift 24 m/min, Z rapid shift 18 m/min
| Speicifications | VMC1560 |
|---|---|
| Table size （mm） | 2200×600 |
| Max. worktable load（kg） | 1500 |
| T-slot (number*width*distance) | 5-18-100 |
| X-axis travel(mm) | 1500 |
| Y-axis travel(mm) | 650 |
| Z-axis travel(mm) | 650 |
| X-axis Fast shift speed(m/min) | 24 |
| Y-axis Fast shift speed(m/min) | 24 |
| Z-axis Fast shift speed(m/min) | 18 |
| Spindle taper hole | BT40-150 |
