Vertical Machining Centers
1370 Vertical Machining Centers

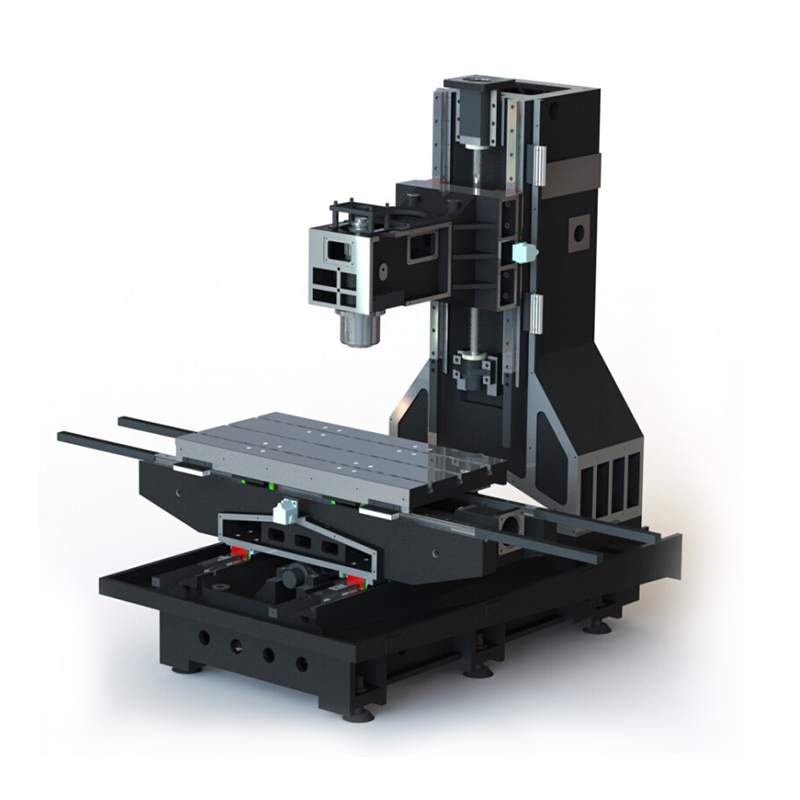

- * This machine tool has a stable bed structure and uses "meter" shaped reinforcement ribs to enhance the stability of the bed.
- * This machine tool is a large stroke, high-precision CNC machine tool
- * Standard configuration includes a 15KW motor or an 11KW low-speed high torque motor, with 55 types of three-axis guide rails, providing stronger load-bearing capacity.
| Speicifications | VMC1370 |
|---|---|
| Table size （mm） | 1400×700 |
| Max. worktable load（kg） | 800 |
| T-slot (number*width*distance) | 5-18-130 |
| X-axis travel(mm) | 1300 |
| Y-axis travel(mm) | 700 |
| Z-axis travel(mm) | 750 |
| X-axis Fast shift speed(m/min) | 24 |
| Y-axis Fast shift speed(m/min) | 24 |
| Z-axis Fast shift speed(m/min) | 18 |
| Spindle taper hole | BT40-150 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 3550L*2730W*2620H |
| Machine weight (KG) | 9000 |
