Vertical Machining Centers

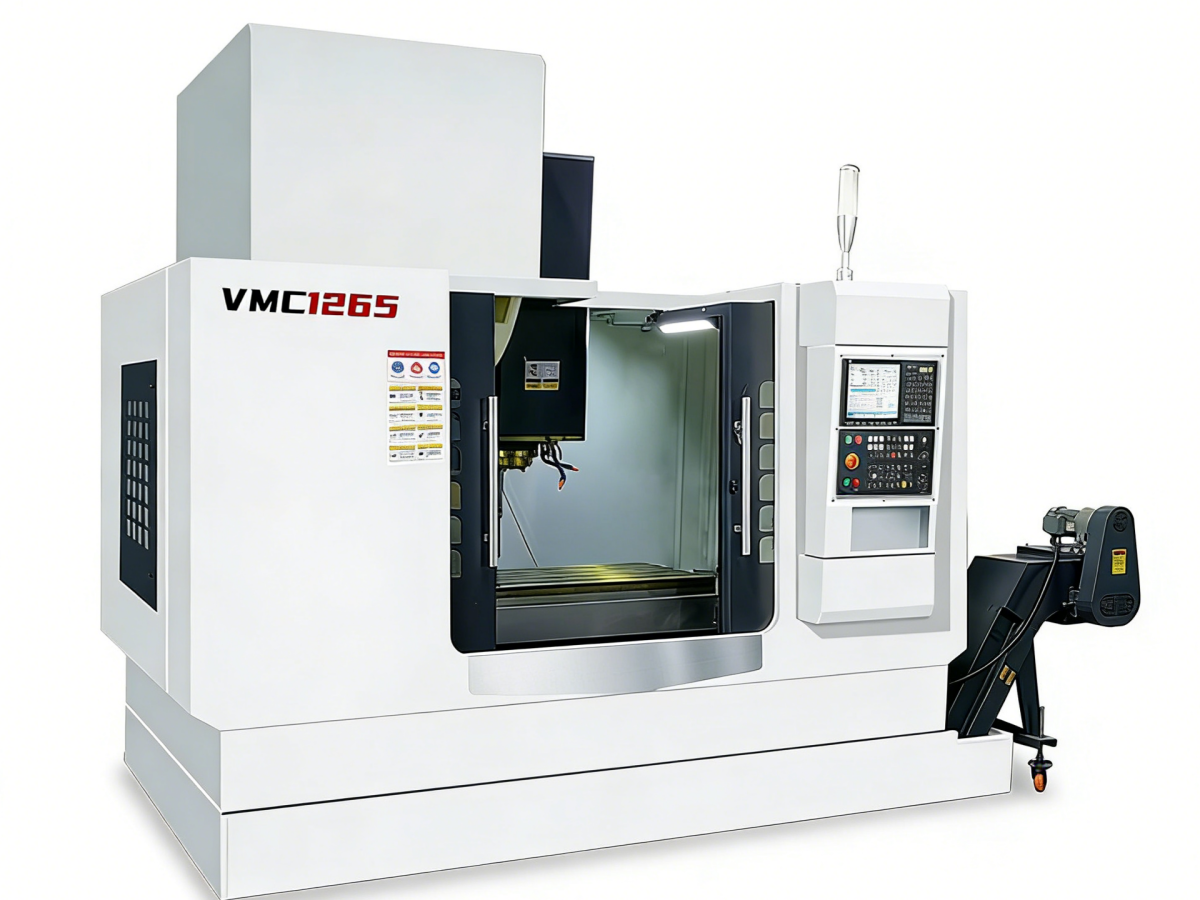

1265 Vertical Machining Centers
- *Table size 1200×600 mm, max. worktable load 800 kg, T-slot 5-18-100 mm
- *Spindle taper hole BT40φ150
- *X/Y/Z axis travel: 1200/650/650 mm, X/Y rapid shift 24 m/min, Z rapid shift 18 m/min
- *Machine size 3300×2600×3360 mm, machine weight 6800 kg
| Speicifications | VMC1265 |
|---|---|
| Table size （mm） | 1200×600 |
| Max. worktable load（kg） | 800 |
| T-slot (number*width*distance) | 5-18-100 |
| X-axis travel(mm) | 1200 |
| Y-axis travel(mm) | 650 |
| Z-axis travel(mm) | 650 |
| X-axis Fast shift speed(m/min) | 24 |
| Y-axis Fast shift speed(m/min) | 24 |
| Z-axis Fast shift speed(m/min) | 18 |
| Spindle taper hole | BT40Φ150 |
| Machine size (mm) | 3300L*2600W*3360H |
| Machine weight (KG) | 6800 |
