Vertical Machining Centers

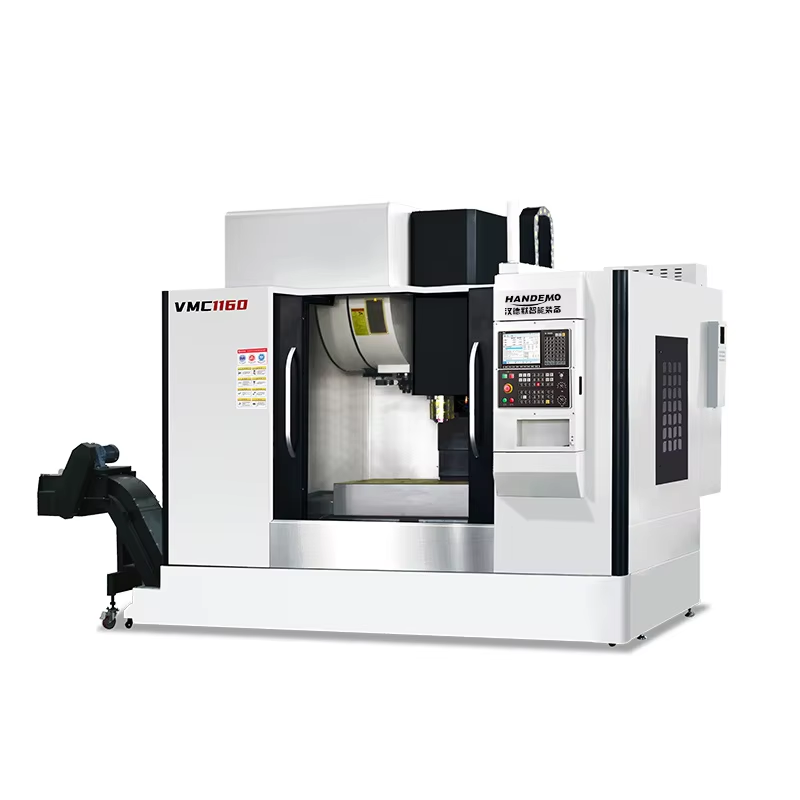

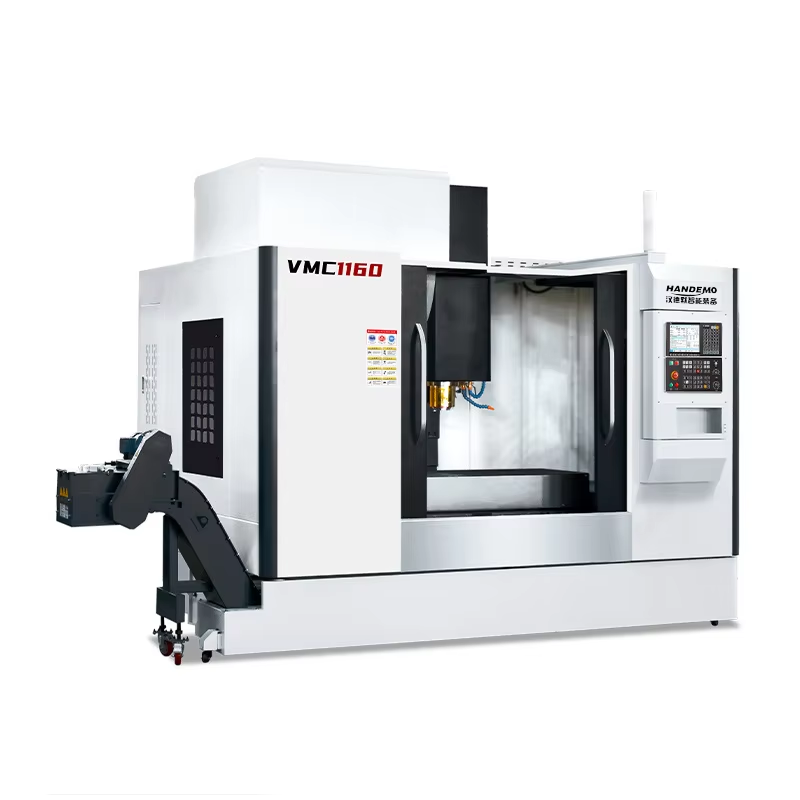

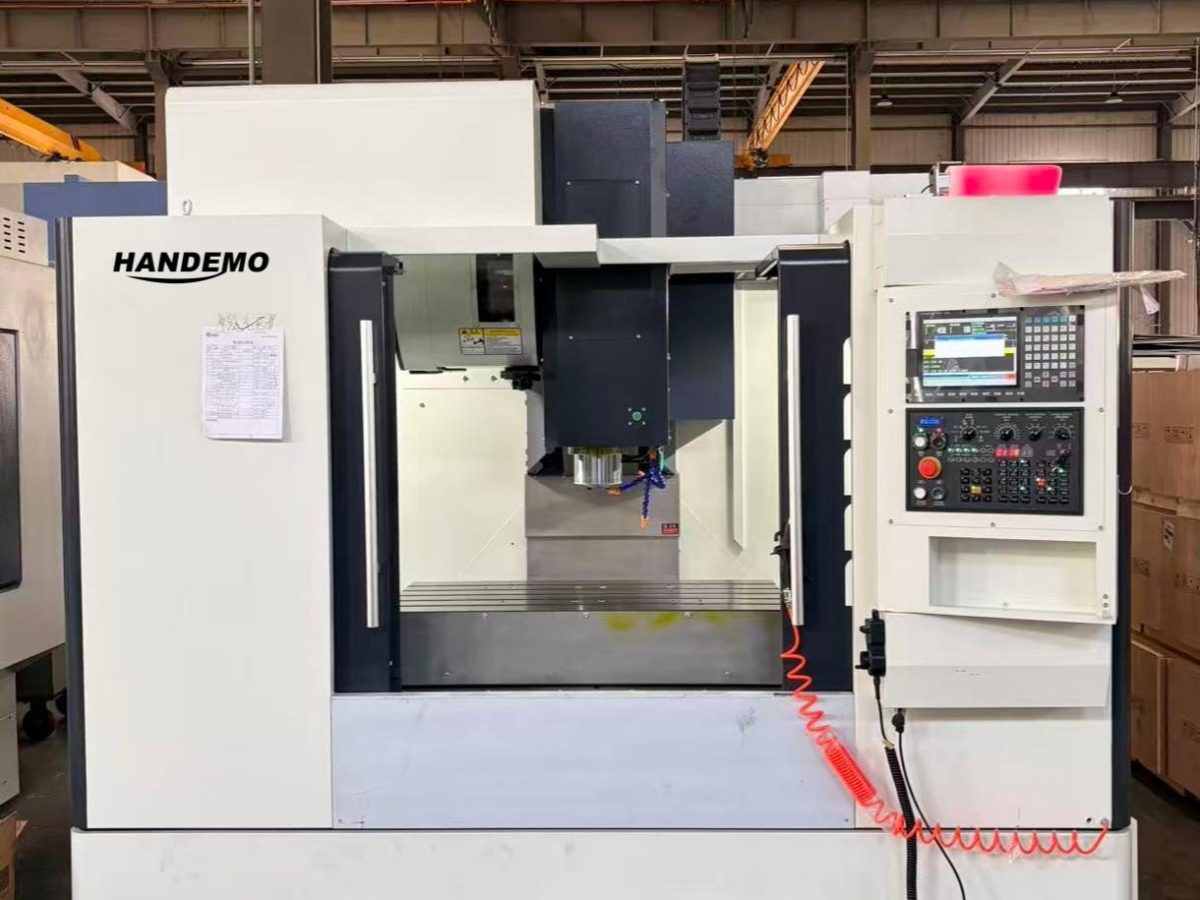

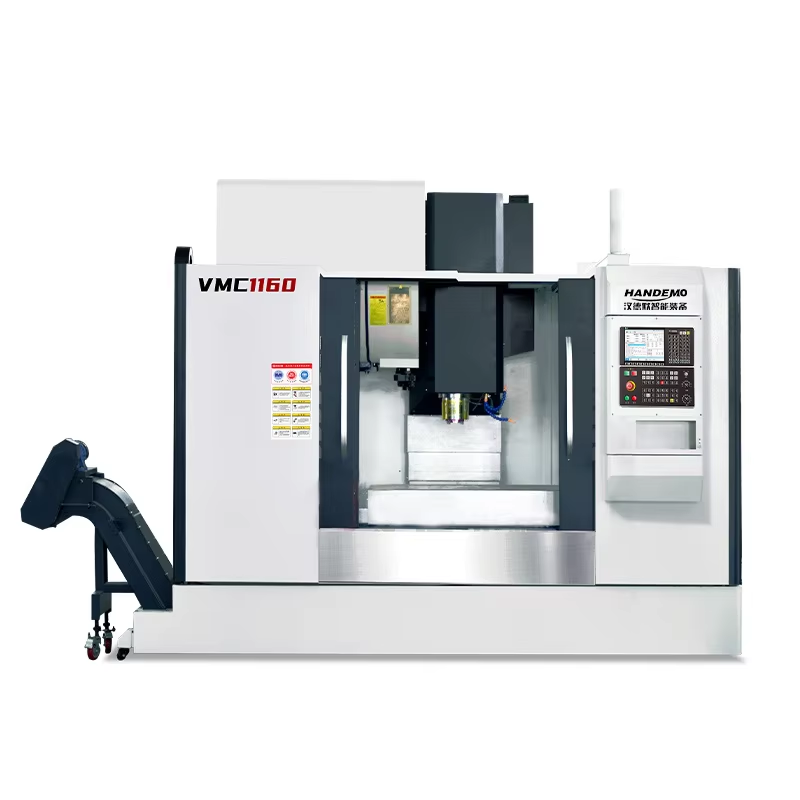

1160 Vertical Machining Centers

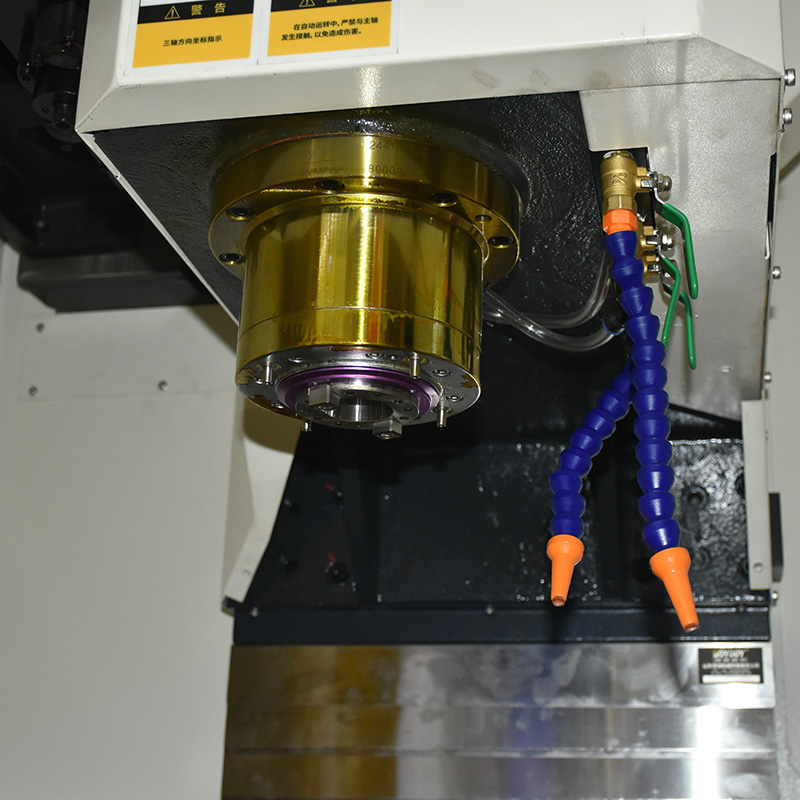

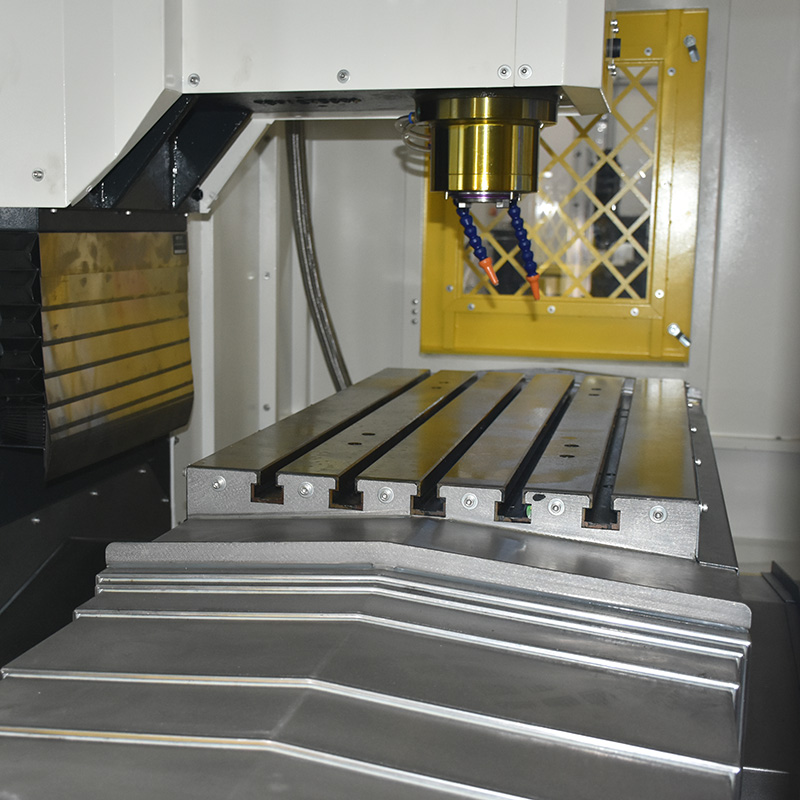

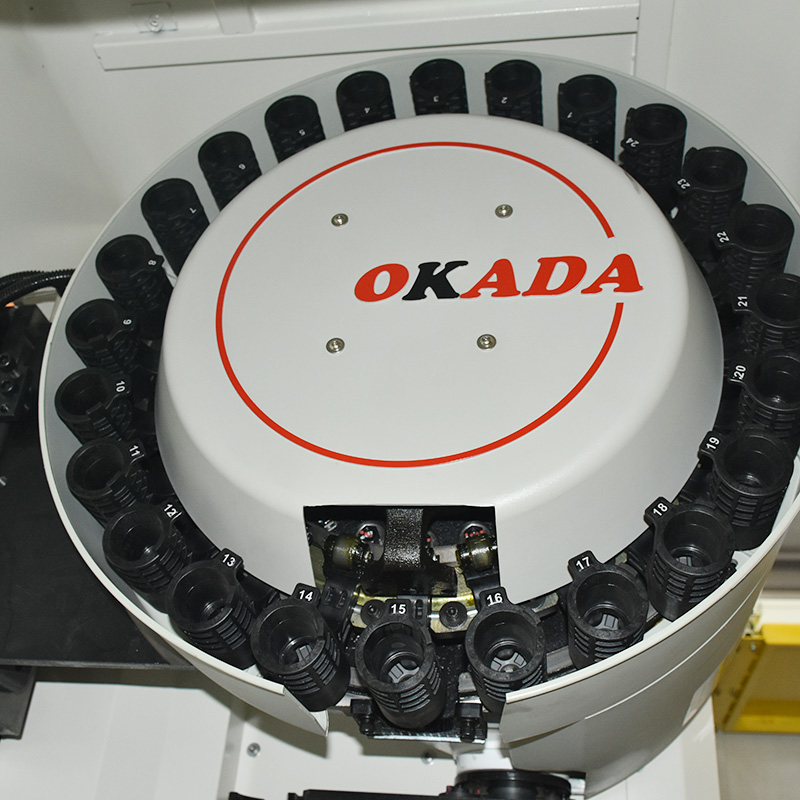

- The VMC1160 is a rugged 3‑axis vertical machining center built for precision and productivity, featuring a 1200×600 mm table, 1100/600/600 mm travels, and a BT40 8000‑rpm spindle. With rapid traverses up to 24 m/min and a 24‑tool disc‑type ATC, it ensures fast, reliable cycles for die/mold, automotive, and general engineering parts. Its robust construction, C3‑grade ballscrews, and flexible options (through‑spindle coolant, chip conveyor, oil cooler, etc.) make it equally suitable for prototyping and high‑mix production runs.
- X-axis travel(mm): 1100
- Y-axis travel(mm): 600
- Z-axis travel(mm): 600
- Spindle speed (rpm): 8000
| Speicifications | VMC1160 |
|---|---|
| Table size （mm） | 1200×600 |
| Max. worktable load（kg） | 800 |
| X-axis travel(mm) | 1100 |
| Y-axis travel(mm) | 600 |
| Z-axis travel(mm) | 600 |
| X-axis Fast shift speed(m/min) | 24 |
| Y-axis Fast shift speed(m/min) | 24 |
| Z-axis Fast shift speed(m/min) | 18 |
| Spindle taper hole | BT40Φ150 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 3100L*2500W*2800H |
| Machine weight (KG) | 6500 |
| X-axis Positioning Accuracy(mm) | 0.053 |
| Y-axis Positioning Accuracy(mm) | 0.014 |
| Z-axis Positioning Accuracy(mm) | 0.010 |
