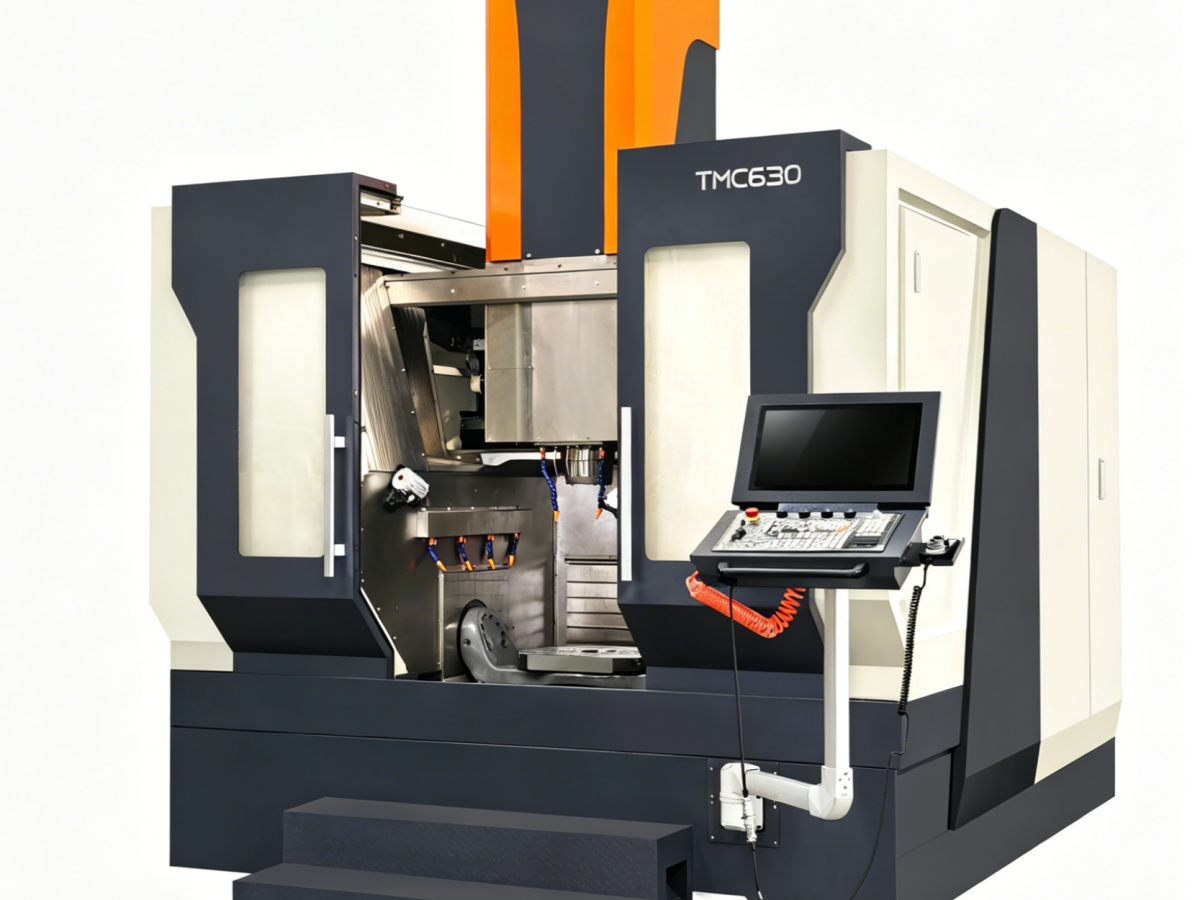

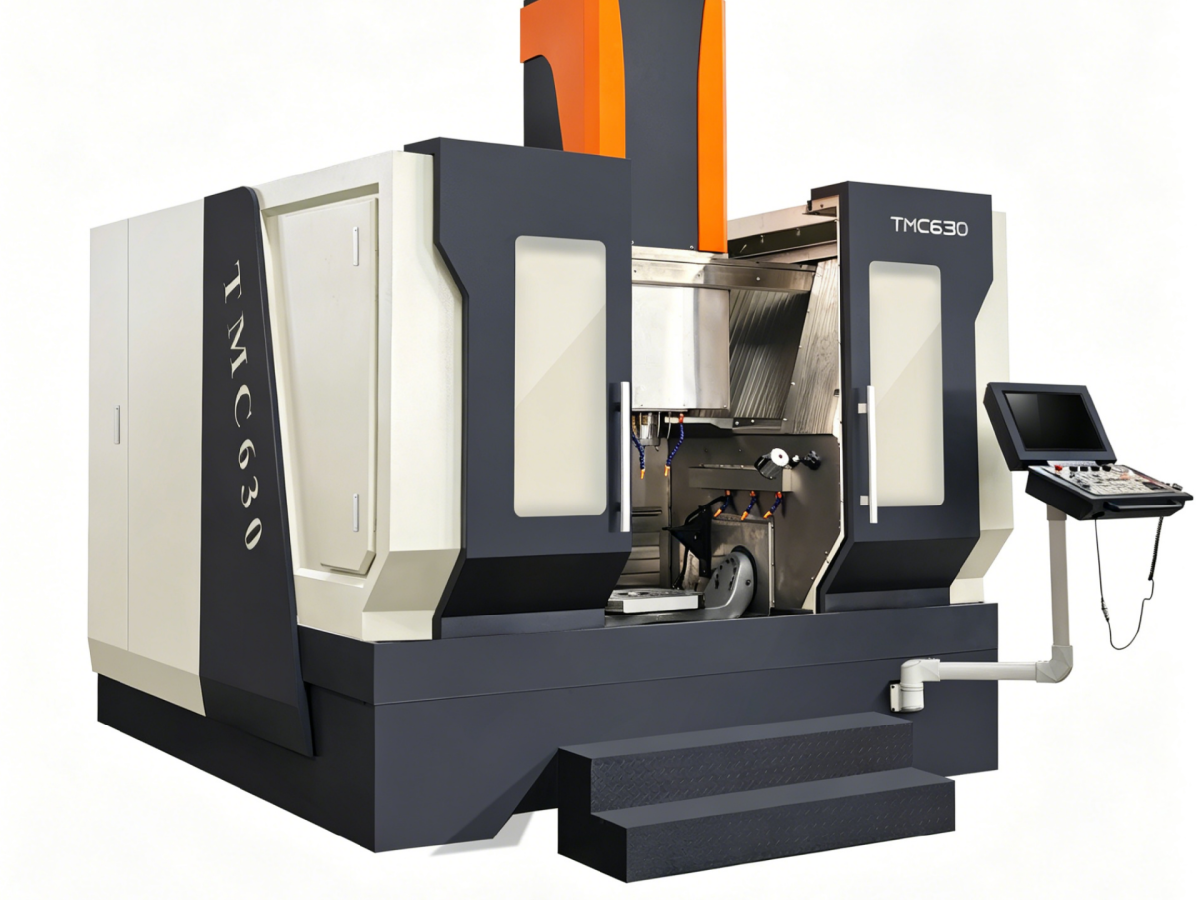

5-Axis Turning and Milling Machine
TMC630 5-Axis Turning and Milling Machine
- *X/Y/Z axis travel: 700/350+590 (including tool change stroke)/550 mm, A-axis tilt range ±110°, C-axis rotation 360°
- *C-axis rotary table diameter 650 mm, allowable load 500 kg, C-axis maximum speed 400 rpm, A-axis maximum speed 100 rpm
- *Spindle taper HSKT63, max spindle speed 15000 rpm
| Speicifications | TMC630 |
|---|---|
| X-axis travel(mm) | 700 |
| Y-axis travel(mm) | 350 + 590 (including tool change stroke) |
| Z-axis travel(mm) | 550 |
| A-axis tilt range(deg) | ±110° |
| C-axis rotation range | 360° |
| Rotary table (C-axis) Table diameter(mm) | 650 |
| Rotary table (C-axis) Permissible load(kg) | 500 |
| Rotary table (C-axis) Max speed(rpm) | 400 |
| A-axis Max speed(rpm) | 100 |
| Spindle taper | HSKT63 |
| Max. spindle speed(r/min) | 15000 |
| Machine weight (T) | 11 |
