Horizontal Machining Centers

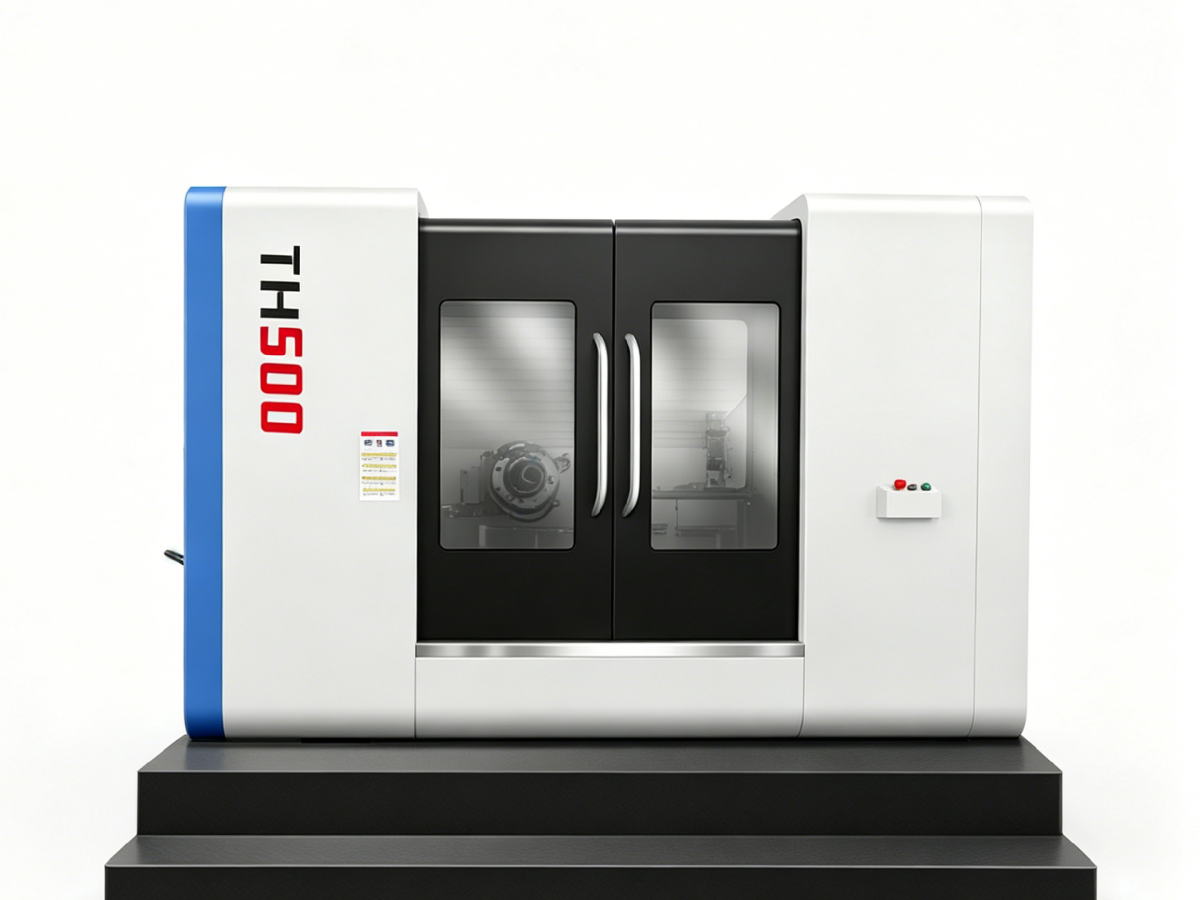

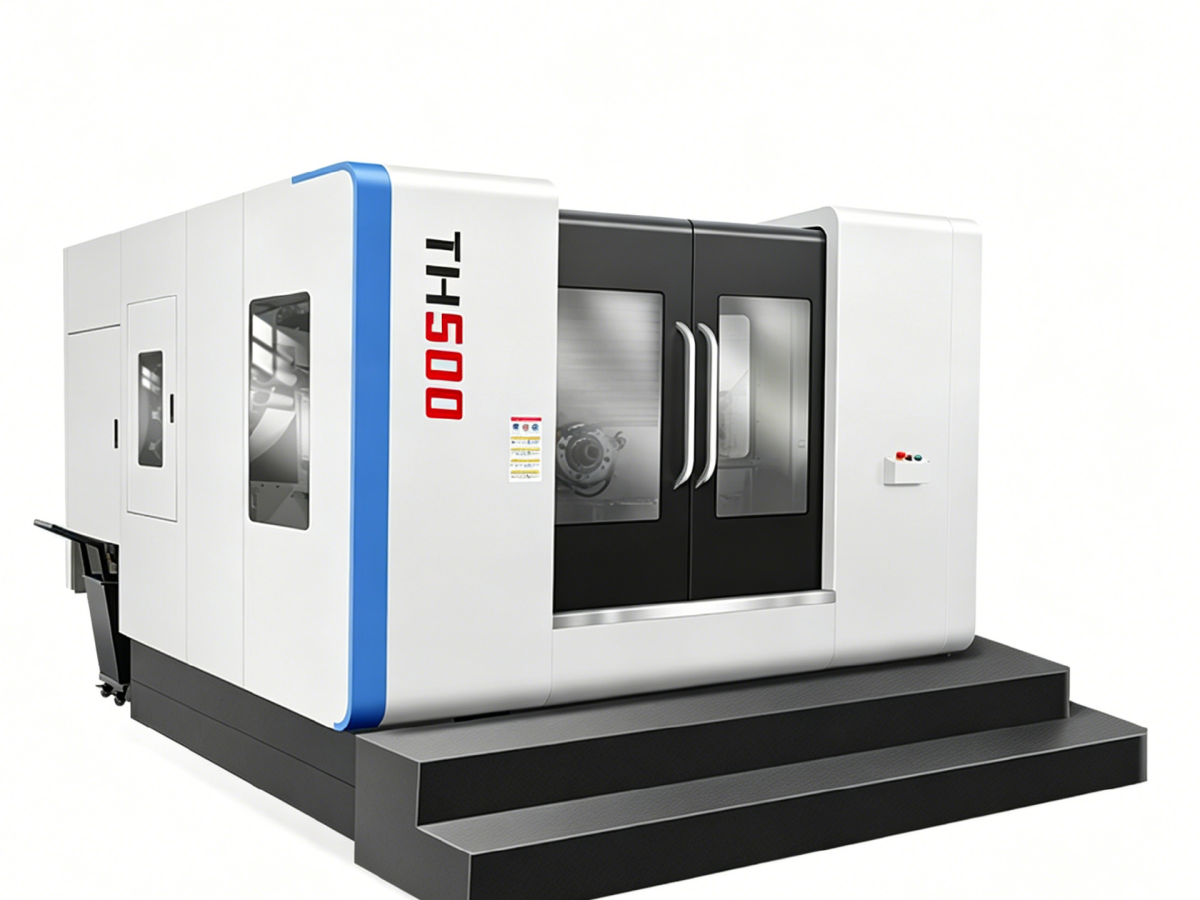

TH500 Horizontal Machining Centers
- *Table size 1200×600 mm, max. worktable load 800 kg, T-slot 5-18-100 mm
- *Spindle taper hole BT40φ150
- *X/Y/Z axis travel: 1100/750/650 mm, X-axis rapid shift 24 m/min, Y-axis 18 m/min, Z-axis 24 m/min
- *Machine size 3400×2750×2900 mm, machine weight 7200 kg
| Speicifications | TH500 |
|---|---|
| Table size （mm） | 1200×600 |
| Max. worktable load（kg） | 800 |
| T-slot (number*width*distance) | 5-18-100 |
| X-axis travel(mm) | 1100 |
| Y-axis travel(mm) | 750 |
| Z-axis travel(mm) | 650 |
| X-axis Fast shift speed(m/min) | 24 |
| Y-axis Fast shift speed(m/min) | 18 |
| Z-axis Fast shift speed(m/min) | 24 |
| Spindle taper hole | BT40Φ150 |
| Machine size (mm) | 3400L*2750W*2900H |
| Machine weight (KG) | 7200 |
Interested in this machine?
Get a factory-direct quote and technical specifications for TH500 Horizontal Machining Centers.
Request A Quote WhatsApp Us
