Horizontal Machining Centers

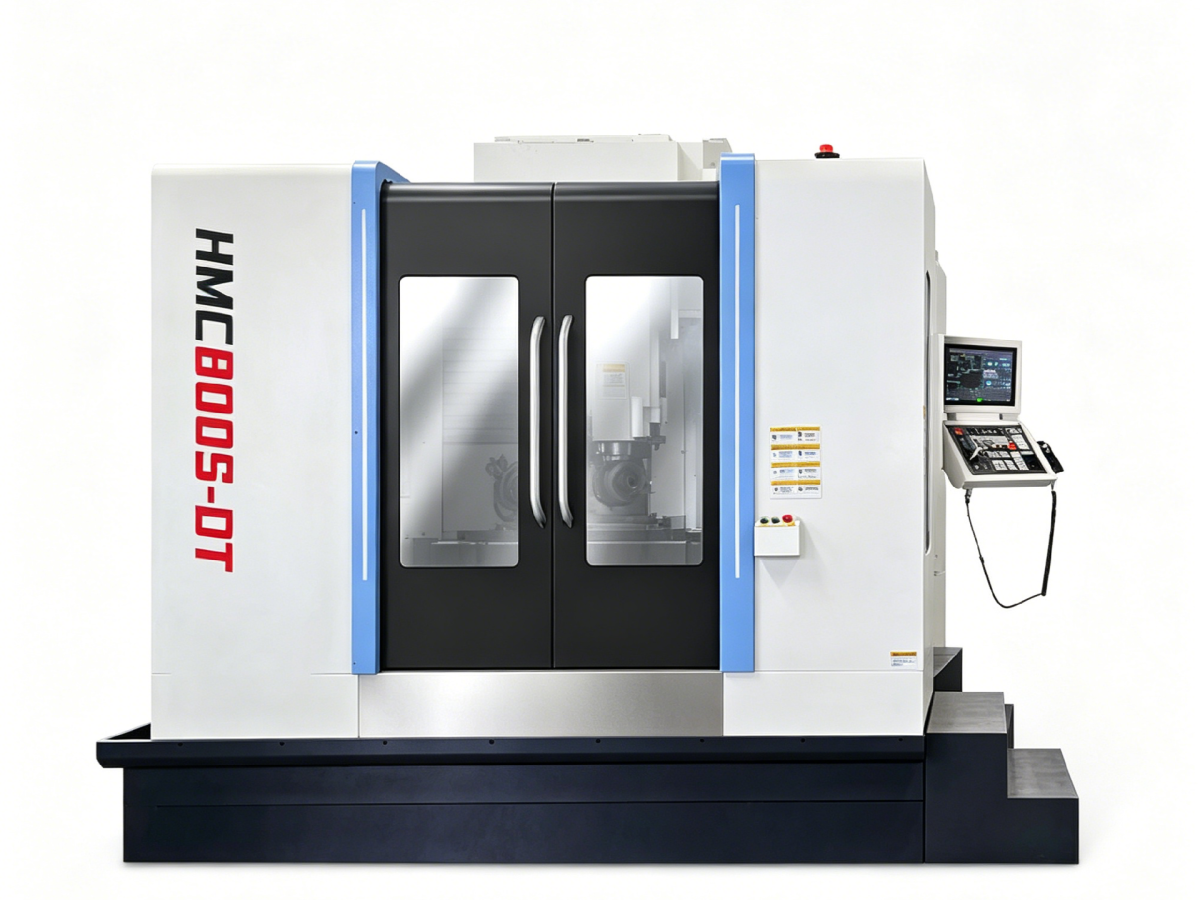

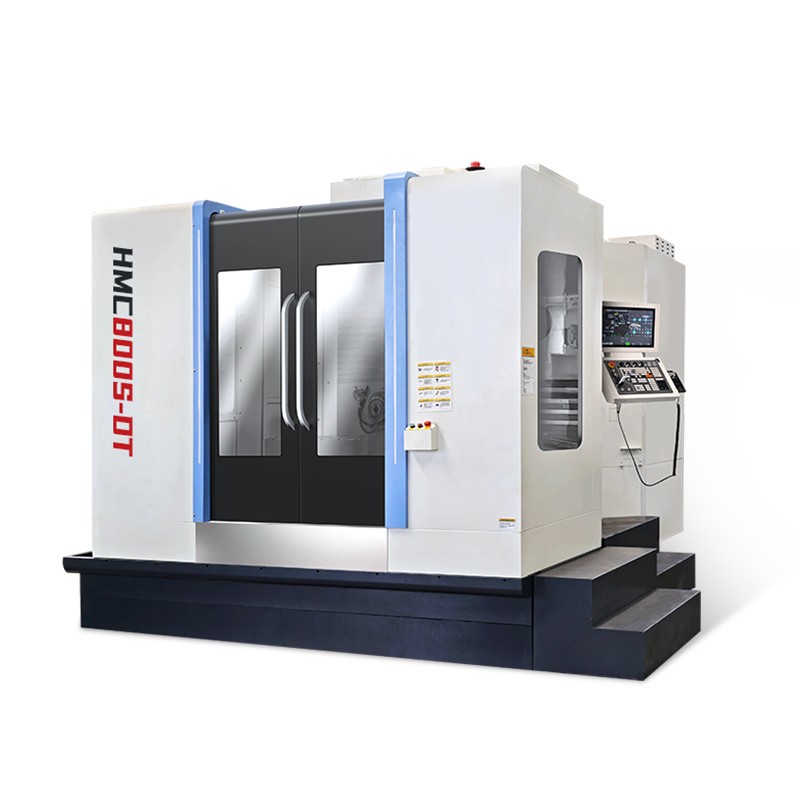

800S-DT Horizontal Machining Centers
- *Table size 800×800 mm, max. worktable load 2000 kg, T-slot 7-22-100 mm
- *Spindle taper hole BT50-45°
- *X/Y/Z axis travel: 1300/1000/1000 mm, X-axis rapid shift 15 m/min, Y/Z rapid shift 12 m/min
- *Machine size 6800×3400×4500 mm, machine weight 15500 kg
| Speicifications | HMC800S-DT |
|---|---|
| Table size （mm） | 800×800 |
| Max. worktable load（kg） | 2000 |
| T-slot (number*width*distance) | 7-22-100 |
| X-axis travel(mm) | 1300 |
| Y-axis travel(mm) | 1000 |
| Z-axis travel(mm) | 1000 |
| X-axis Fast shift speed(m/min) | 15 |
| Y-axis Fast shift speed(m/min) | 12 |
| Z-axis Fast shift speed(m/min) | 12 |
| Spindle taper hole | BT50-45° |
| Machine size (mm) | 6800L*3400W*4500H |
| Machine weight (KG) | 15500 |
